Morimoto Gen II LED Rock Light Kit

Upgrade your truck, Jeep, or SUV with the Morimoto Gen II LED Rock Light Kit, engineered to deliver exceptional brightness, rugged durability, and hassle-free installation. Designed specifically for off-road enthusiasts and daily drivers alike, this complete lighting system provides everything needed for a professional installation without the guesswork found in many universal rock light kits.

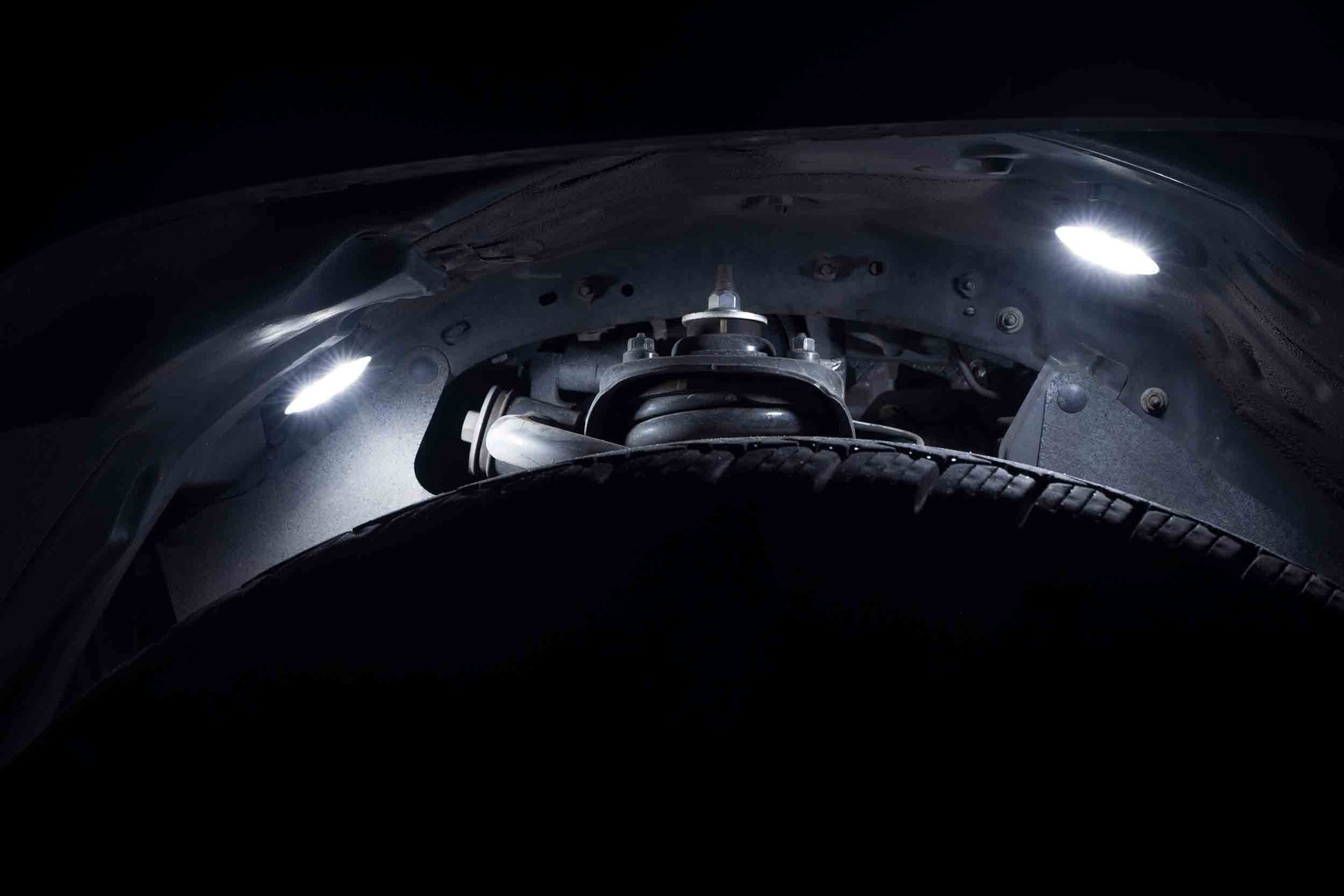

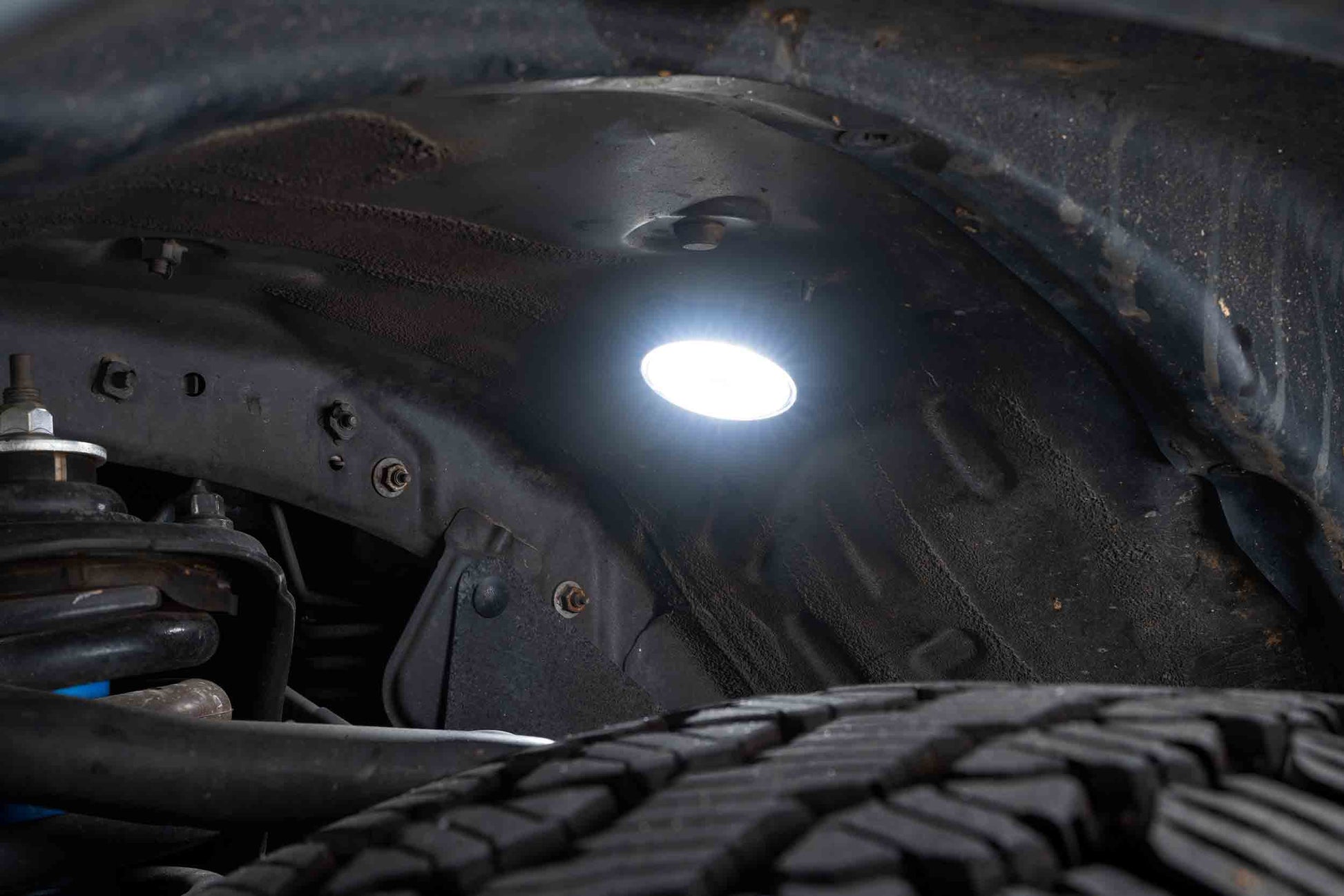

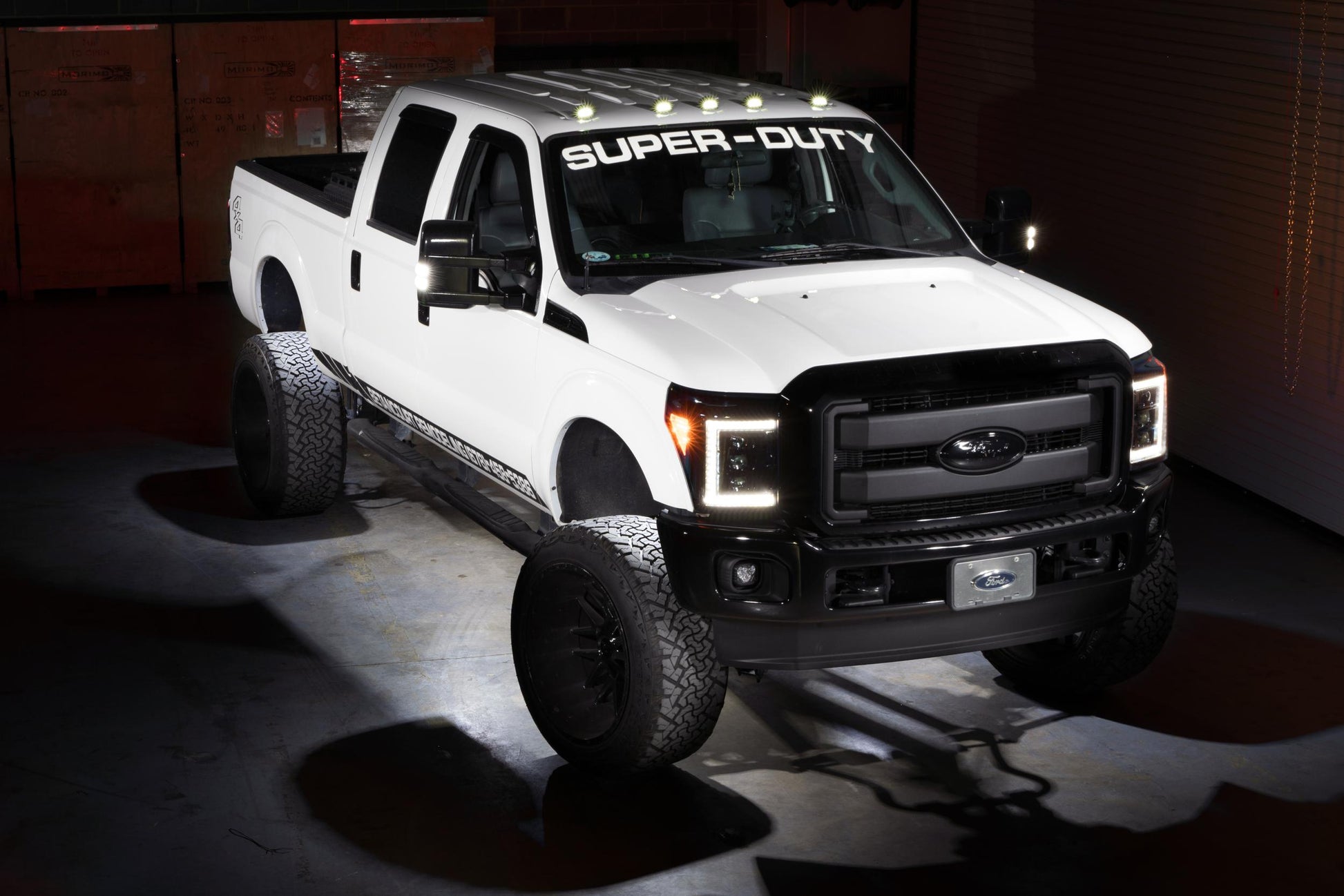

Each second-generation Morimoto Rock Light is equipped with 12 high-output 1-watt LEDs positioned behind a crystal-clear polycarbonate lens to maximize light output and provide outstanding illumination. Whether you're navigating rocky trails at night, lighting up your wheel wells, or adding underbody lighting for a custom appearance, the Gen II Rock Lights deliver brilliant pure white illumination that helps you both see and be seen. Even a single light is capable of illuminating an entire wheel well with impressive intensity.

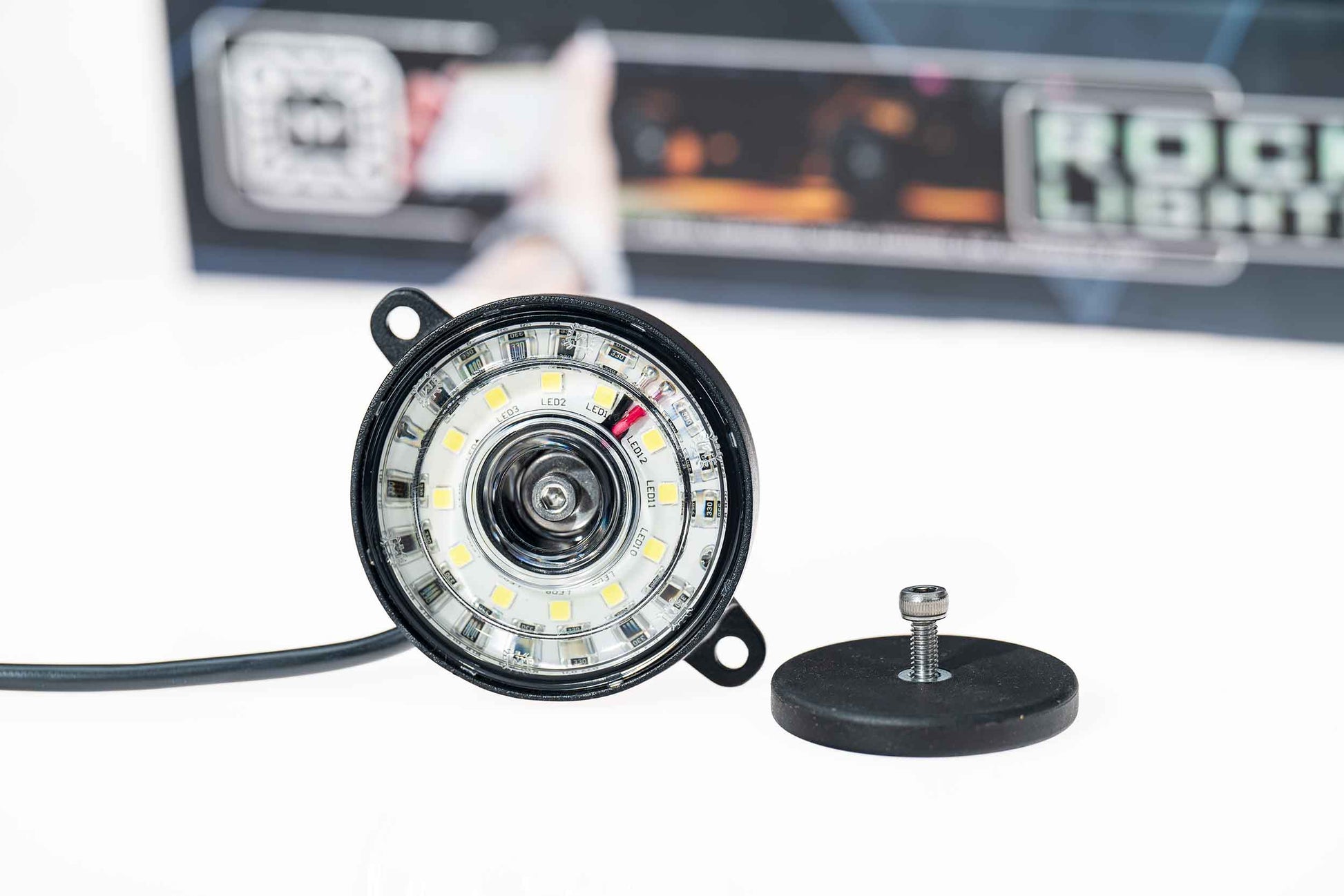

Installation is quick and versatile thanks to Morimoto's dual mounting system. Each rock light features integrated mounting tabs for permanent screw-on installation, while the included rubberized magnetic mounts provide a secure no-drill alternative. Rated to support up to 8 kg (17.6 lbs) each—approximately 40 times the weight of a single rock light—these heavy-duty magnets ensure a reliable installation on steel surfaces.

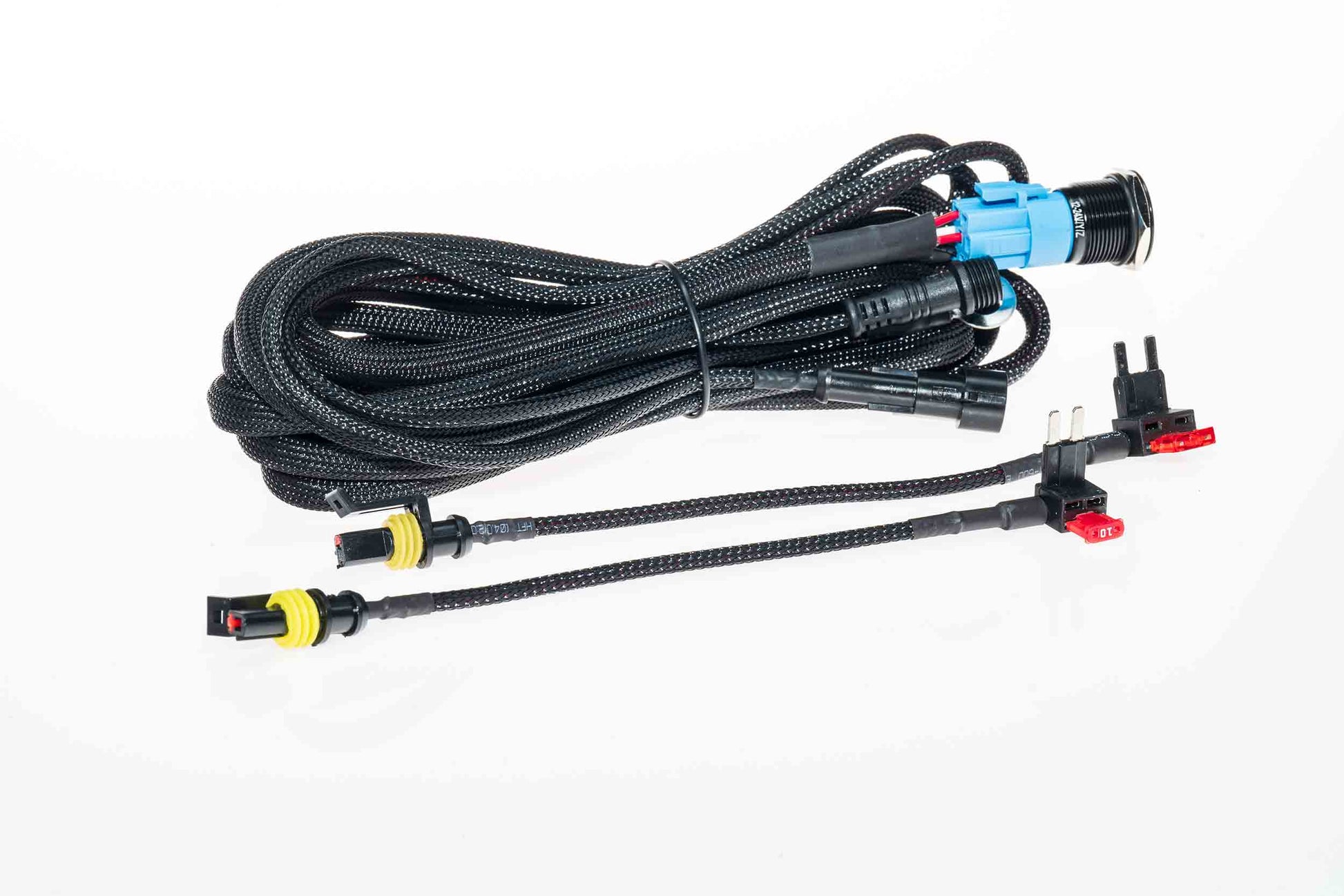

The included plug-and-play wiring harness simplifies installation even further. Controlled by an in-cab push-button switch, the harness draws power directly from your vehicle's fuse box and includes all required splitters, extension cables, and sealed connectors for a clean, professional installation. Multiple extension cables are included to accommodate a wide range of vehicles, from compact Jeeps to full-size heavy-duty trucks.

Built to withstand the harshest environments, the Gen II Rock Lights feature rugged die-cast aluminum housings finished in a durable powder coat that matches Morimoto's Banger Series off-road lights. Each light is protected by a 2 mm Makrolon® polycarbonate lens, offering outstanding impact resistance against rocks, debris, mud, and harsh weather conditions. Fully sealed connectors and over-molded splitters provide reliable, weather-resistant performance for years to come.

Backed by Morimoto's Limited Lifetime Warranty, the Gen II Rock Light Kit delivers the performance, reliability, and durability enthusiasts expect from one of the industry's leading lighting manufacturers.

Features

• Complete plug-and-play LED rock light kit.
• 12 high-output 1W LEDs per rock light.
• Bright pure white LED illumination.
• Wide beam pattern for excellent wheel well coverage.
• Crystal-clear high-strength polycarbonate lens.
• Rugged die-cast aluminum housing.
• Durable powder-coated finish.
• Dual mounting options with screw mounts and rubberized magnetic mounts.
• Heavy-duty magnets rated for 8 kg (17.6 lbs).
• Complete wiring harness with in-cab push-button switch.
• Includes splitters, extension cables, and sealed connectors.
• Weather-resistant over-molded wiring connections.
• Ideal for trucks, Jeeps, SUVs, and off-road vehicles.
• Limited Lifetime Warranty.

Technical Specifications

• Housings: Black Powdercoated Cast AL
• Lenses: Makrolon Polycarbonate
• LEDS: 12x 1W White LED
• Lifespan: 50,000 hours
• 12V Inputs: Mini or Micro fuse taps
• Switch: Illuminated Push Button / Black CNC Face
• Switch Wiring Length: 150in / 381cm
• Splitter Wiring Length: 40in / 101cm (total)
• Extension Length: 6ft / 183cm (each)

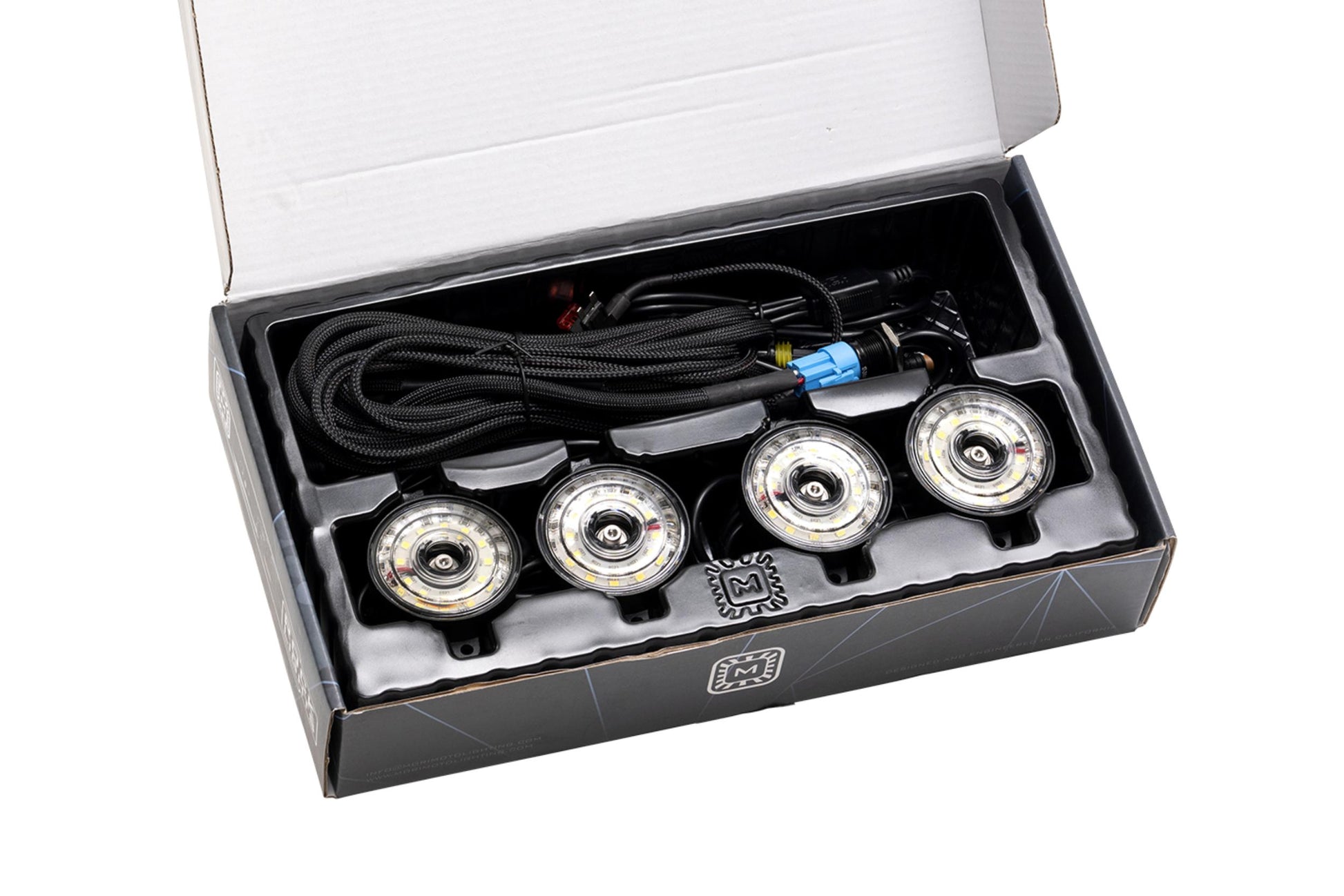

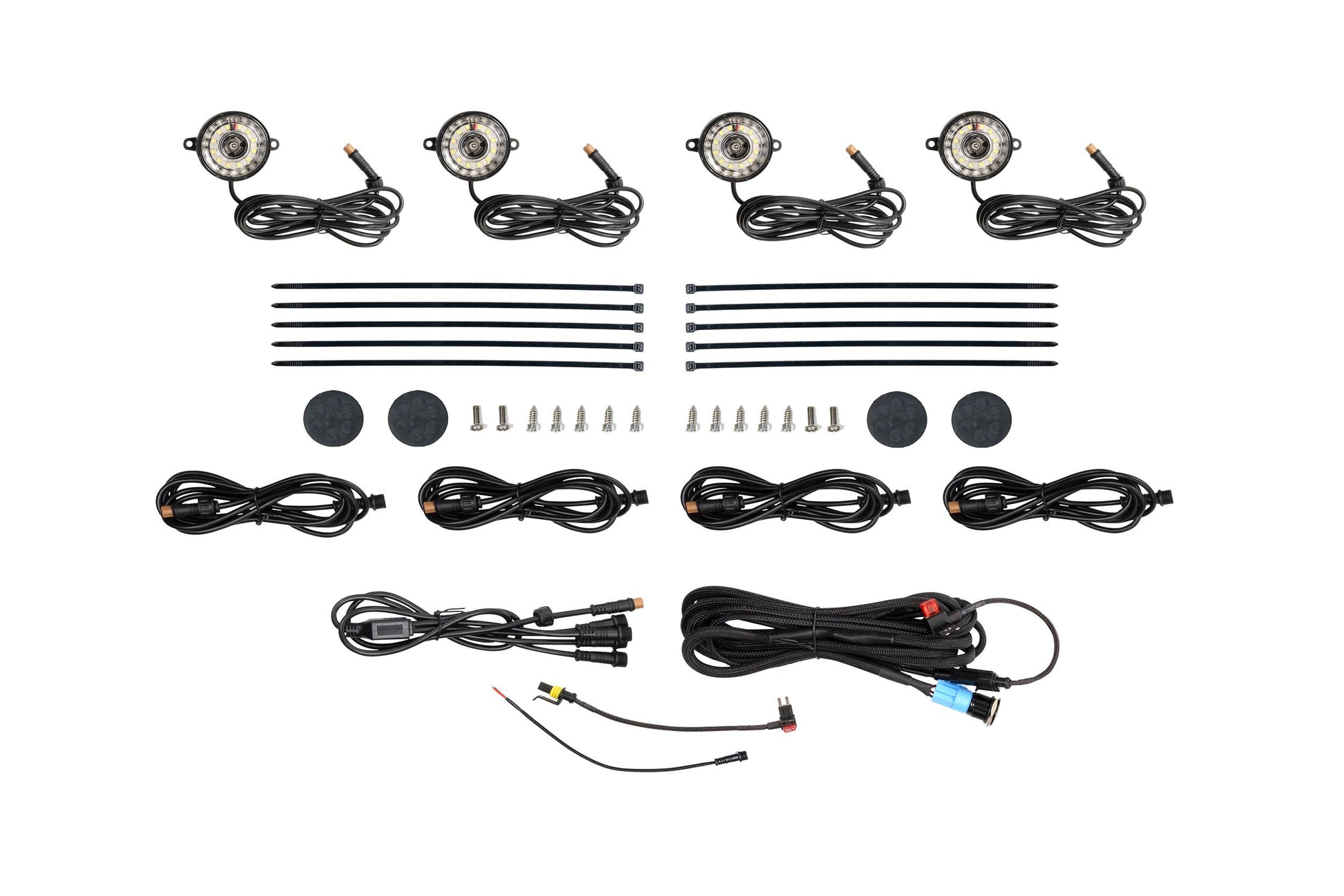

What's Included

• Rock Lights: 4x Morimoto V2 (White Light)
• Main Harness: Plug n Play w/ In-Cabin push button
• Fuse Box Harness: Mini and Micro Fuse Adapters

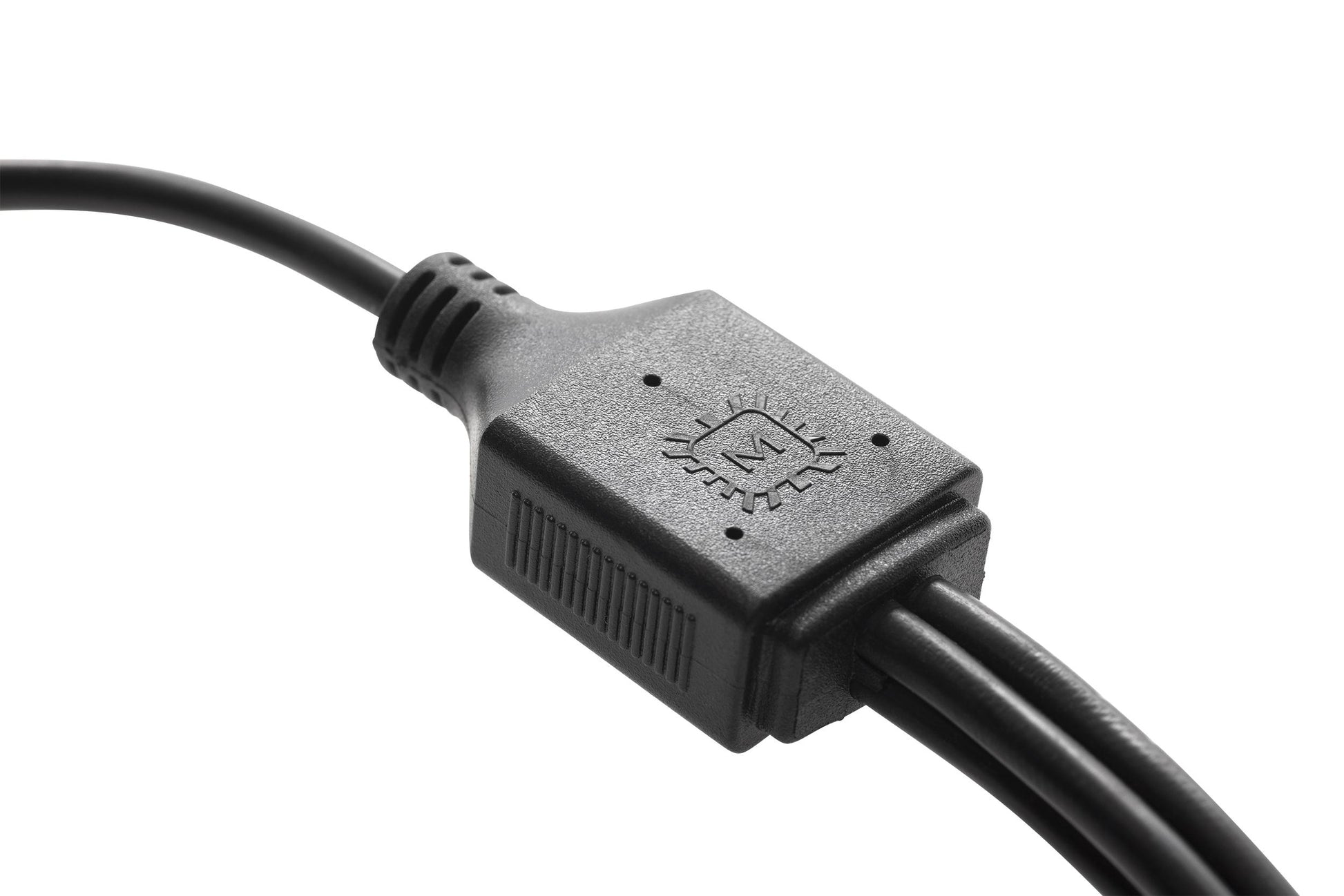

• Splitter: 1x Over-molded two-way splitter
• Extensions: 2x Over-molded Extension Cables (6ft / 185cm)
• Magnetic Mounts: 4x Screw-on 8kg Magnet mounts
• Accessories: Screws, Zip Ties, User-Guide
• Warranty: Lifetime Limited

Compatibility

• Perfect For: Trucks, Jeeps, SUVs and Powersports
• Cars too?: Yes, but only because neon Underglow is so 2002
• Wheel Wells: Yes
• Frame Rails: Yes
• Engine Compartment: Yes
• Interior Lighting: Yes
• Electrical Systems: 09-18V
