14-18 Chevrolet Silverado 1500 4Banger LED Ditch Light System

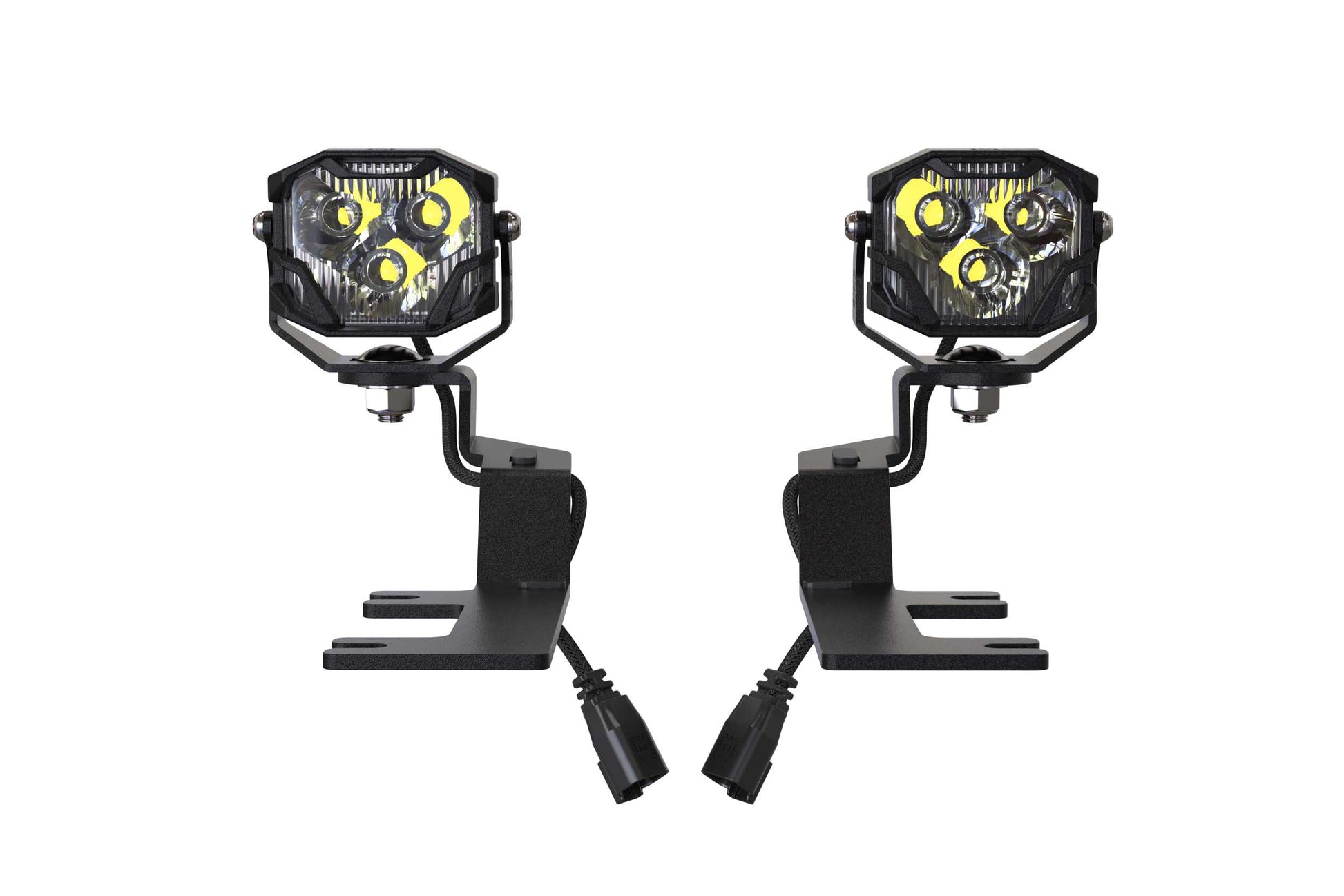

Upgrade your 2014-2018 Chevrolet Silverado with the Morimoto 4Banger A-Pillar LED Light Kit, engineered to deliver powerful auxiliary lighting while maintaining a clean, factory-style installation. Designed specifically for the Silverado, this complete system combines heavy-duty A-pillar brackets with Morimoto's premium 4Banger LED Pods, giving you exceptional visibility whether you're on the highway, job site, or off the beaten path.

Choose from multiple beam patterns and output colors to build the perfect lighting setup for your truck.

Vehicle-Specific Bolt-On Design

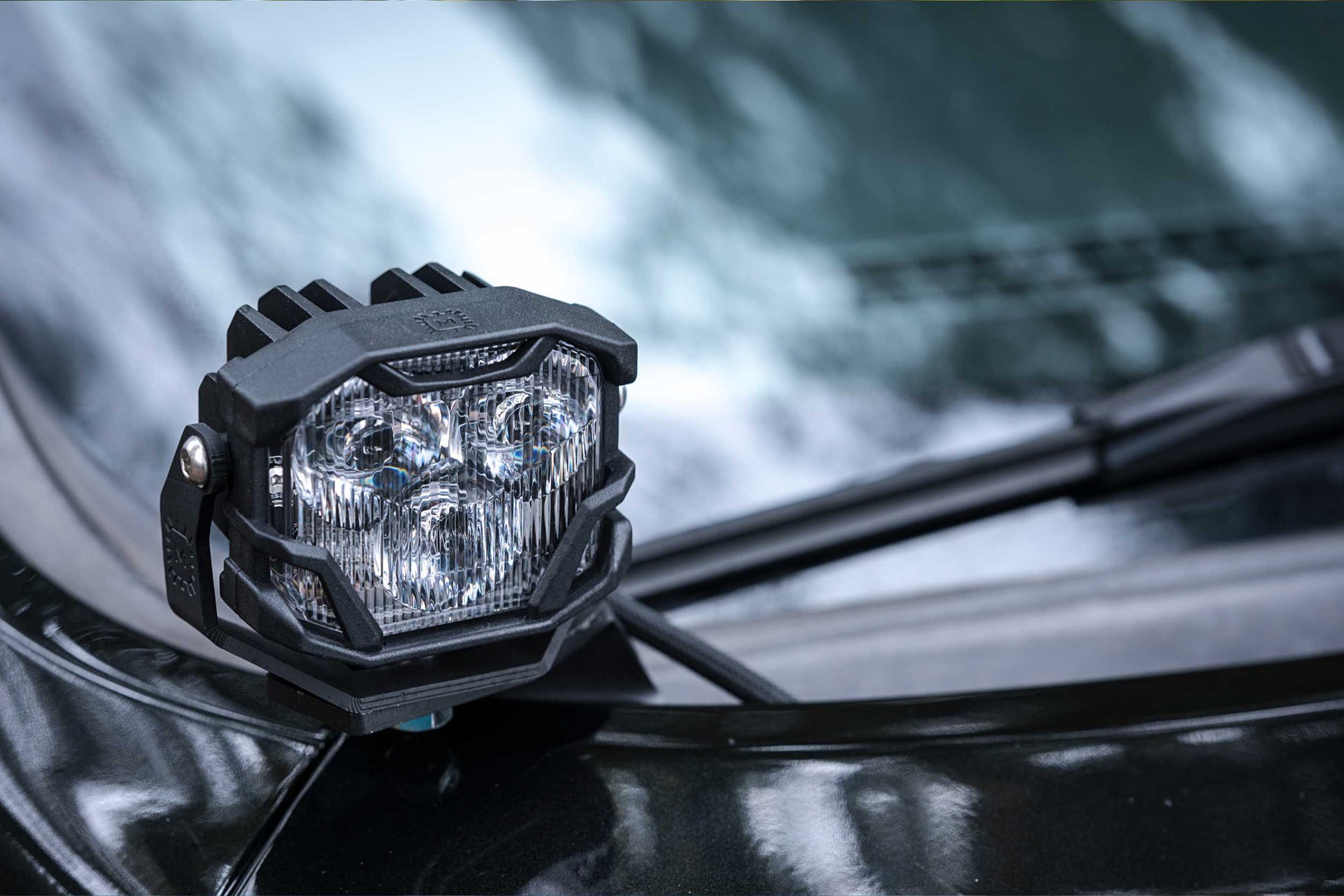

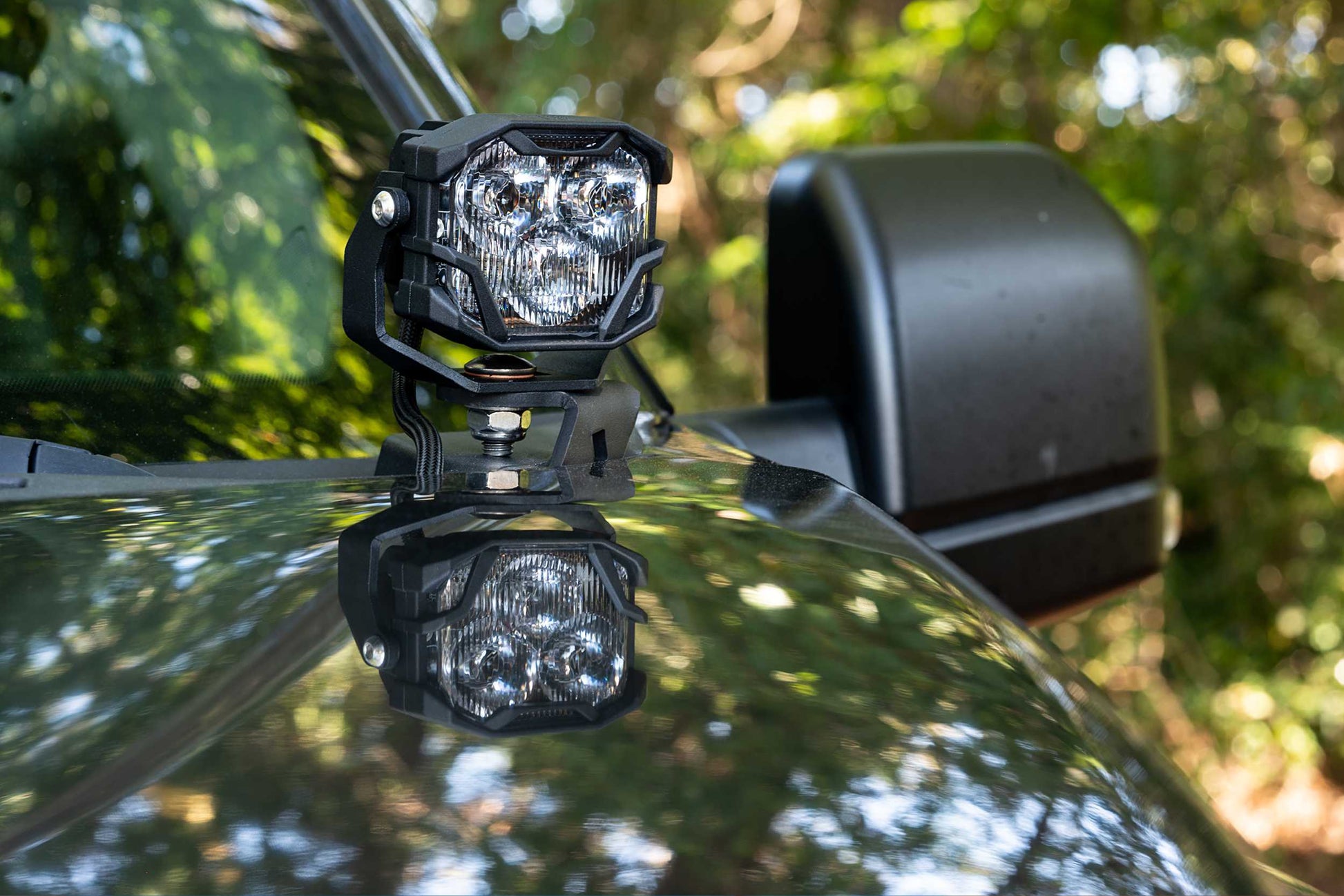

Engineered exclusively for the 2014-2018 Chevrolet Silverado, the Morimoto A-Pillar Kit utilizes factory mounting points for a seamless installation.

Installation requires:

• No drilling
• No cutting
• No permanent modifications
• OEM-quality fit and finish

Every bracket has been extensively designed and tested to ensure precise alignment and long-term durability.

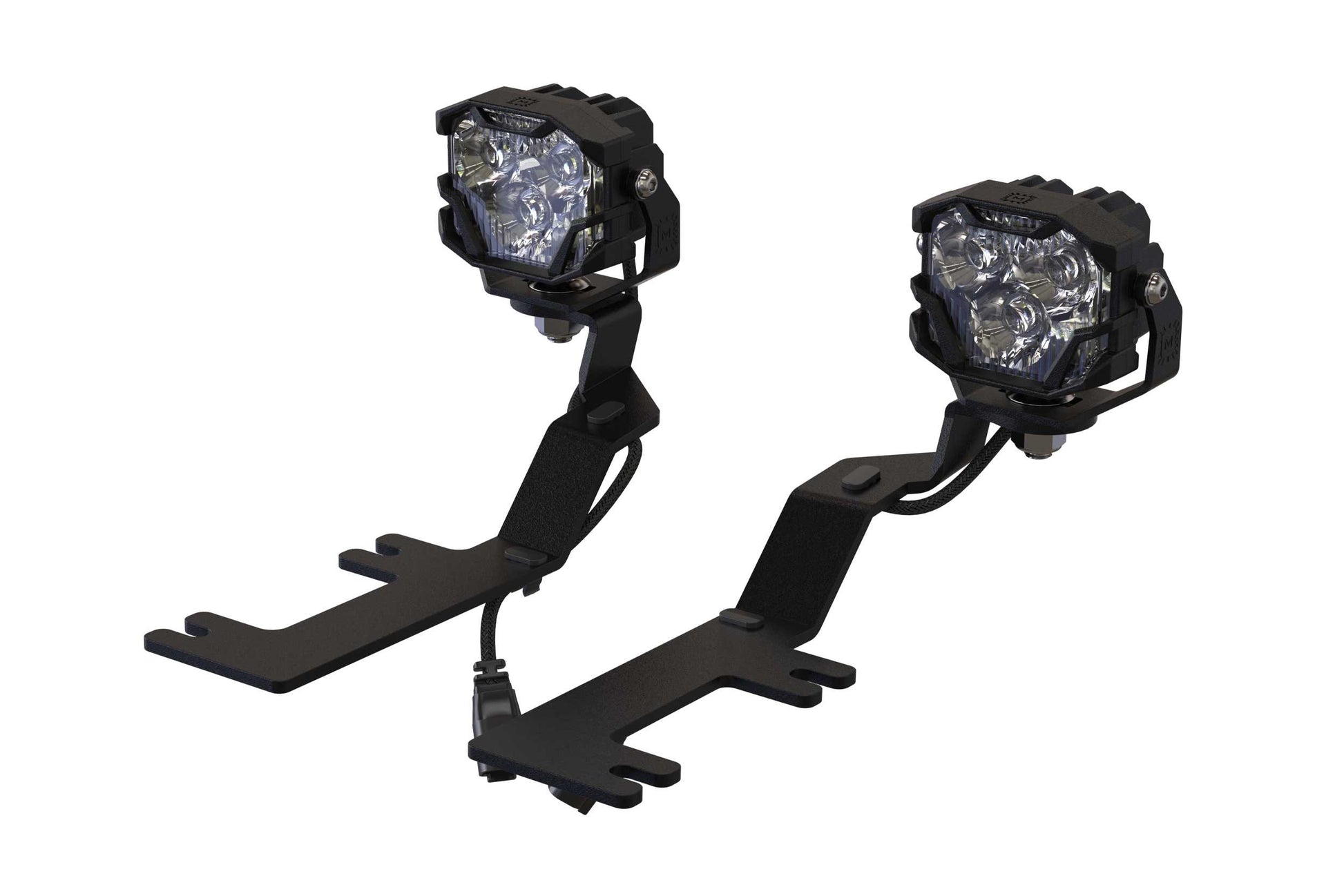

Heavy-Duty Stainless Steel Construction

Built to withstand harsh weather and demanding off-road conditions, each bracket is manufactured from laser-cut 304 stainless steel, then electroplated and powder-coated for superior corrosion resistance.

Features include:

• Laser-cut 304 stainless steel
• Electroplated corrosion protection
• Durable powder-coated finish
• Factory mounting compatibility
• Integrated cable management clips
• Extremely rigid construction

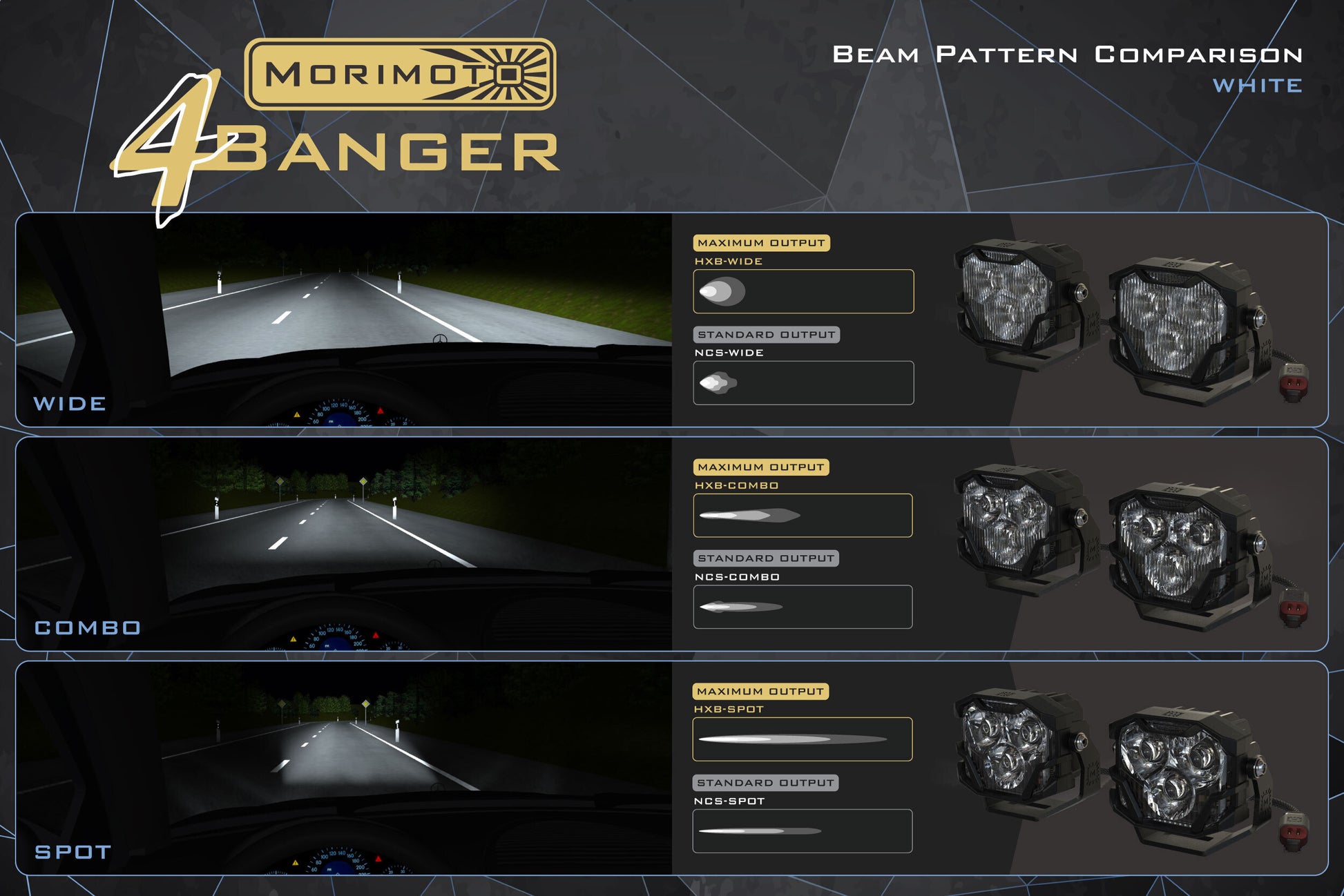

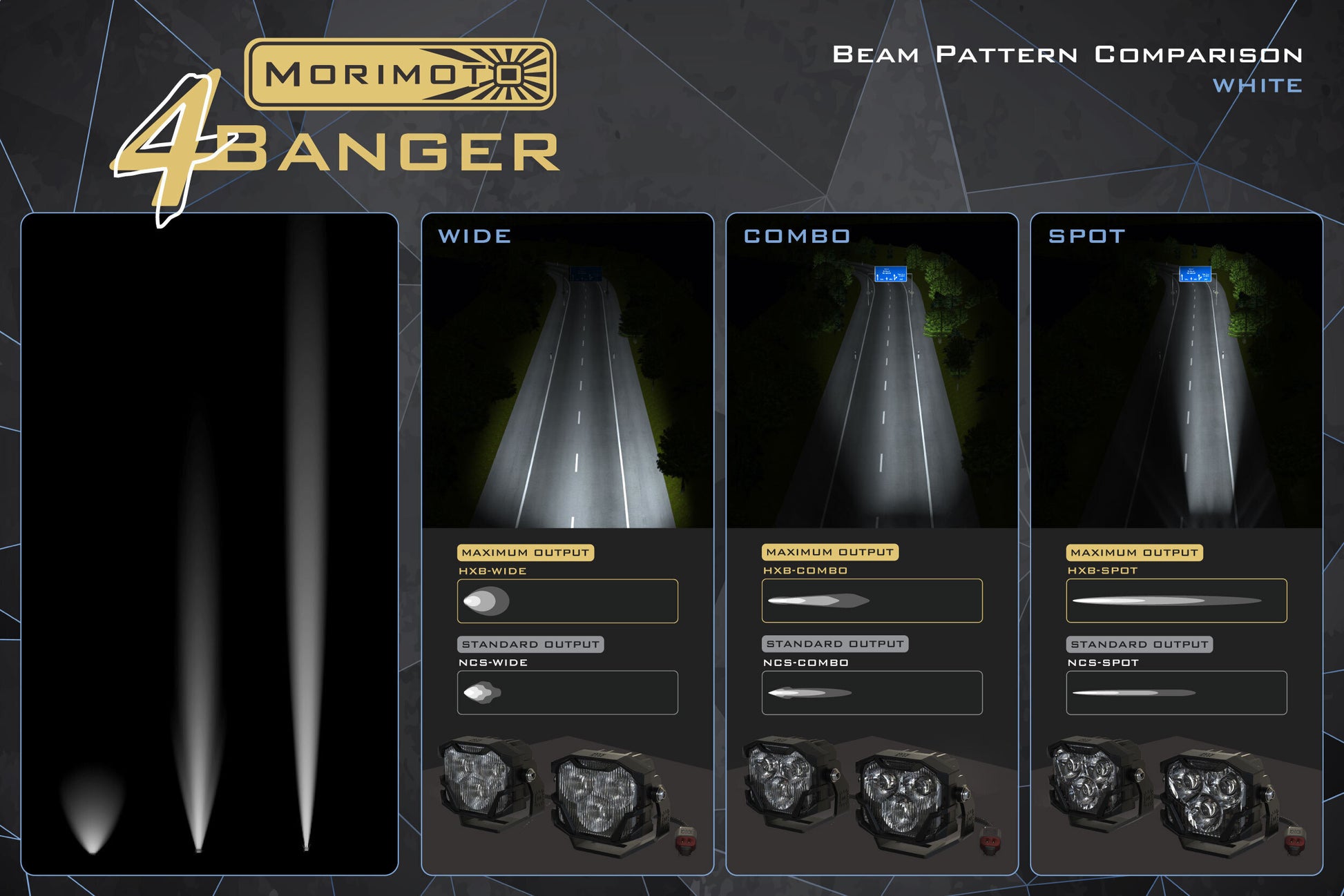

Choose the Perfect Beam Pattern

Customize your Silverado with the lighting configuration that best matches your driving style.

Spot Beam

Designed for maximum long-range visibility, the Spot Beam projects a concentrated beam far down the road or trail, making it ideal for high-speed driving and rural highways.

Combo Beam

The Combo Beam combines excellent distance with wide peripheral illumination, providing outstanding all-around visibility for daily driving, off-road adventures, and overlanding.

SAE Wide Beam

The SAE Wide Beam produces a broad, low-mounted beam designed to improve visibility in rain, snow, fog, and dusty conditions while minimizing glare. When properly aimed, it complies with current SAE fog light standards.

White or Selective Yellow Output

Choose the output color that best suits your environment.

White LEDs

• Maximum overall brightness
• Crisp white illumination
• Excellent visibility in clear weather
• Modern OEM+ appearance

Selective Yellow LEDs

Morimoto's Phosphor-Converted Yellow LED technology produces true yellow light directly from the LED emitter instead of filtering white light through a yellow lens.

Benefits include:

• Better visibility in rain
• Improved performance in fog
• Enhanced contrast in snow
• Reduced glare and eye fatigue

Premium 4Banger LED Technology

Every Morimoto 4Banger LED Pod is engineered using proprietary technology for exceptional lighting performance.

Features include:

• Premium Nichia and Osram LEDs
• Precision-engineered optics
• Advanced LucidShape optical design
• Optimized thermal management
• Exceptional beam control and efficiency

The NCS Spot Beam features a focused 5° hotspot surrounded by a 14° horizontal × 4° vertical flood, providing outstanding long-range illumination while maintaining excellent peripheral visibility.

Built for Extreme Conditions

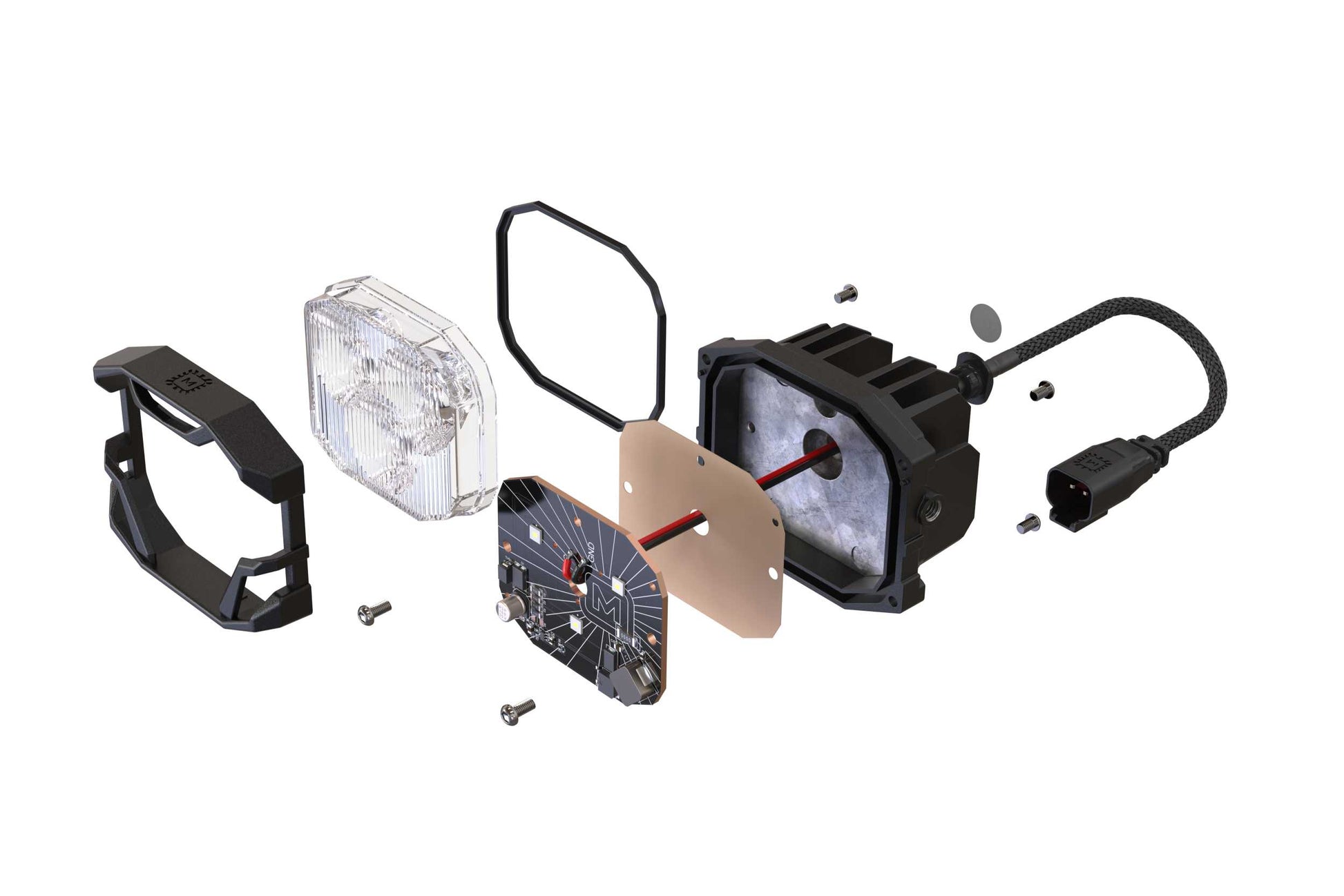

Engineered to perform in the harshest environments, every 4Banger LED Pod features:

• Cast aluminum housing
• Electroplated and powder-coated finish
• Copper Direct Thermal Path (DTP) circuit board
• Fully sealed electronics
• Over-molded wiring
• IP69K-rated weather resistance
• Excellent resistance to water, dust, mud, vibration, and extreme temperatures

Clean Wiring & Professional Installation

Morimoto designed this kit with a clean, factory-style installation in mind.

Integrated cable routing clips help neatly secure wiring along the brackets before entering the engine compartment.

Pair the kit with Morimoto's optional premium switched relay harness featuring:

• Triple-sealed proprietary 4-pin relay
• 20A inline fused protection
• Waterproof DT06-2S connectors
• Stainless steel battery terminals
• Illuminated M-Spec push-button switch

Compatible with Other LED Pods

Although optimized for Morimoto 4Banger LED Pods, these A-pillar brackets are also compatible with many popular aftermarket LED pod lights, including:

• Baja Designs
• KC HiLiTES
• Rigid Industries
• Diode Dynamics
• Other industry-standard LED pod lights

Street-Legal Performance

When properly aimed, Morimoto 4Banger beam patterns comply with applicable SAE standards.

• Spot & Combo Beams meet SAE J581 auxiliary high-beam requirements.
• SAE Wide Beam models comply with current SAE F fog light regulations when installed and aimed according to Morimoto's specifications.

Optional Blackout Covers are also available for areas where auxiliary lights must remain covered during normal road use.

Features

• Designed specifically for 2014-2018 Chevrolet Silverado
• Complete bolt-on A-pillar mounting system
• No drilling or vehicle modifications required
• Laser-cut 304 stainless steel brackets
• Electroplated and powder-coated finish
• Compatible with Morimoto 4Banger LED Pods
• Available in Spot, Combo, or SAE Wide beam patterns
• White or Selective Yellow LED output options
• Premium Nichia & Osram LEDs
• Precision-engineered optics
• Copper DTP thermal management
• IP69K weather-resistant construction
• Integrated cable management
• Optional premium switched relay wiring harness
• Compatible with many aftermarket LED pod lights
• SAE-compliant beam patterns when properly aimed

Equip your 2014-2018 Chevrolet Silverado with the Morimoto 4Banger A-Pillar LED Light Kit and enjoy industry-leading auxiliary lighting, rugged durability, and factory-quality fitment designed for everything from daily driving to serious off-road adventures.

Technical Specifications

• Peak Intensity (cd): 105,000 Cd (Post Warm-Up) (1,050 lux @ 10m)
• Input: Proprietary Overmolded Deutsch DT 2-Pin w/ Pigtail
• Input Voltage: 9-18V DC
• Power (Stabilized): 20w
• Current: 1.5A @ 13.2V DC
• Peak Luminosity (lm)(raw): 1,350lm
• Color: 5600K
• Light Source: 3x Nichia NCSW131F (5700K)
• Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
• IP Rating: IP69K (Dust / High Pressure Water Resistant)

What's Included

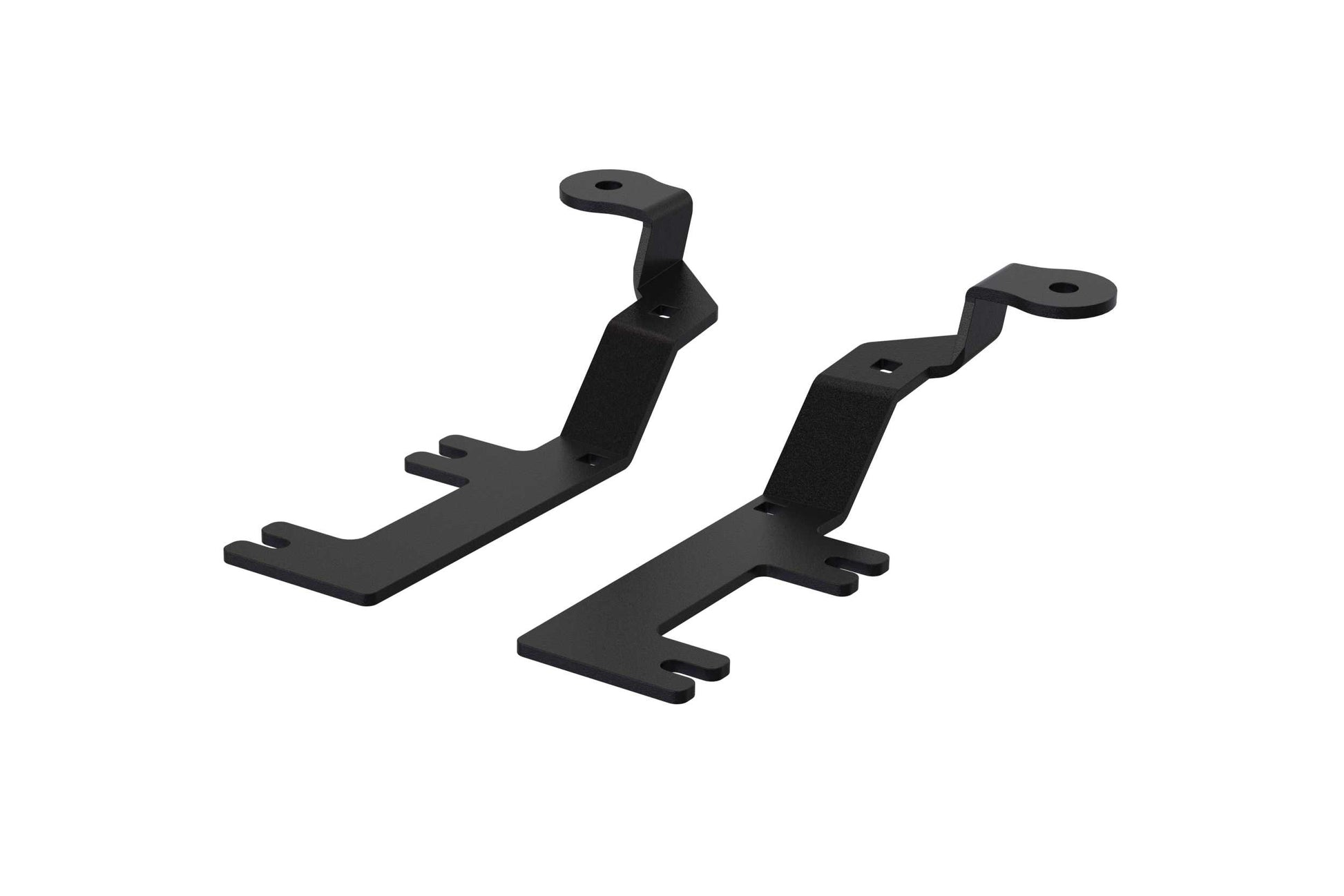

• Ditch Light Brackets: 2x (One Pair) Morimoto Brackets (BAF031 / Chevrolet Silverado)
• Hardware: Stainless bolts & plastic cable clips
• LED Pods: 2x (One Pair) Morimoto 4Banger
• Wiring: 1x Morimoto Switched Relay Harness
• Warranty: Limited Lifetime

Compatibility

• Vehicles: Chevrolet Silverado (14-18)
