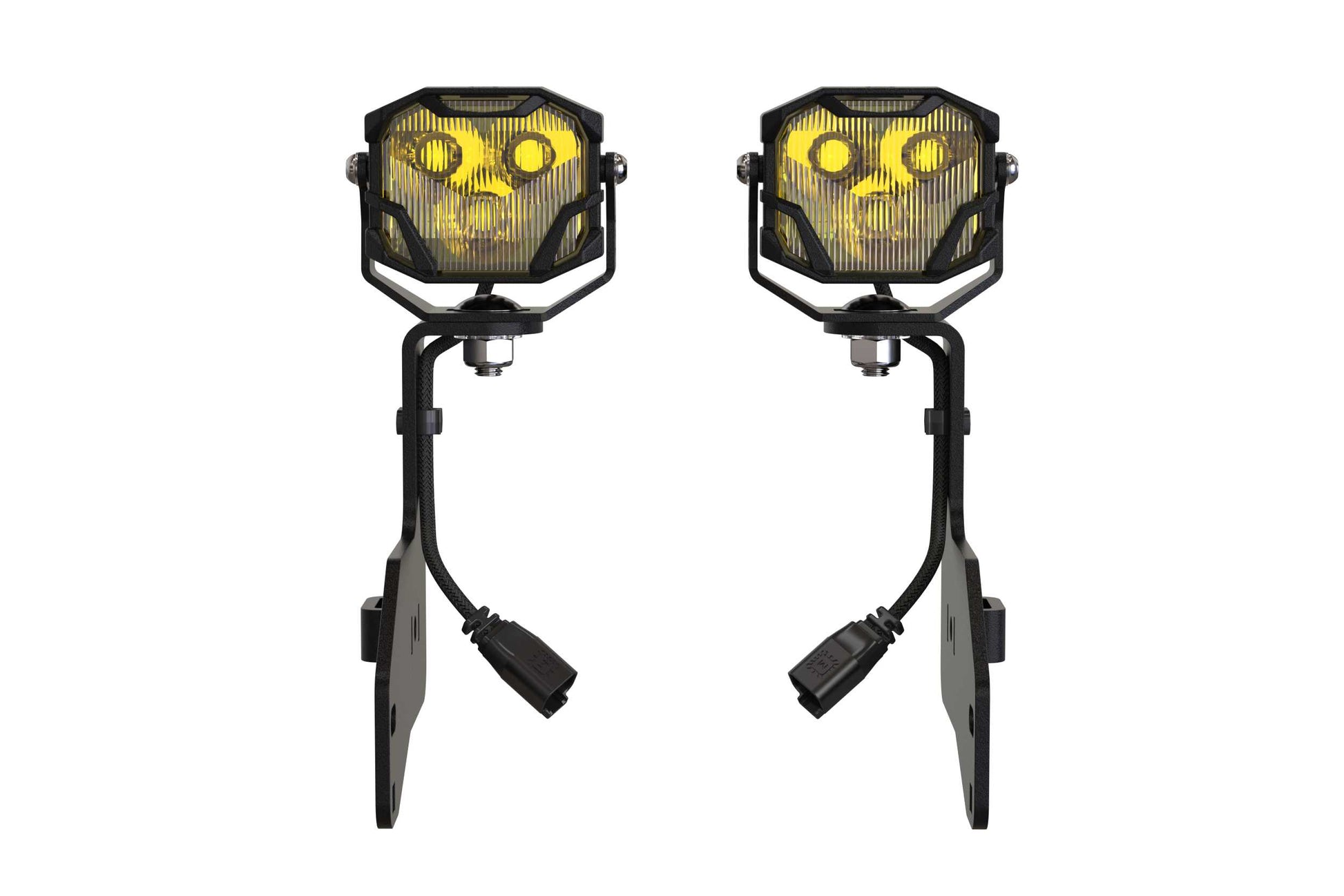

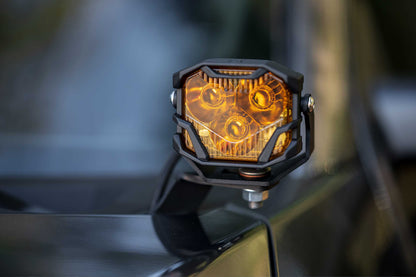

11-16 Ford Super Duty 4Banger LED Ditch Light System

Upgrade your 2011-2016 Ford Super Duty with the Morimoto 4Banger A-Pillar LED Light Kit, engineered to deliver exceptional auxiliary lighting while maintaining a clean, factory-style installation. Designed specifically for the Super Duty platform, this complete system combines heavy-duty A-pillar mounting brackets with Morimoto's industry-leading 4Banger LED Pods, providing unmatched visibility whether you're towing, working, overlanding, or exploring off-road.

Choose your preferred beam pattern and output color to build the perfect lighting setup for your truck.

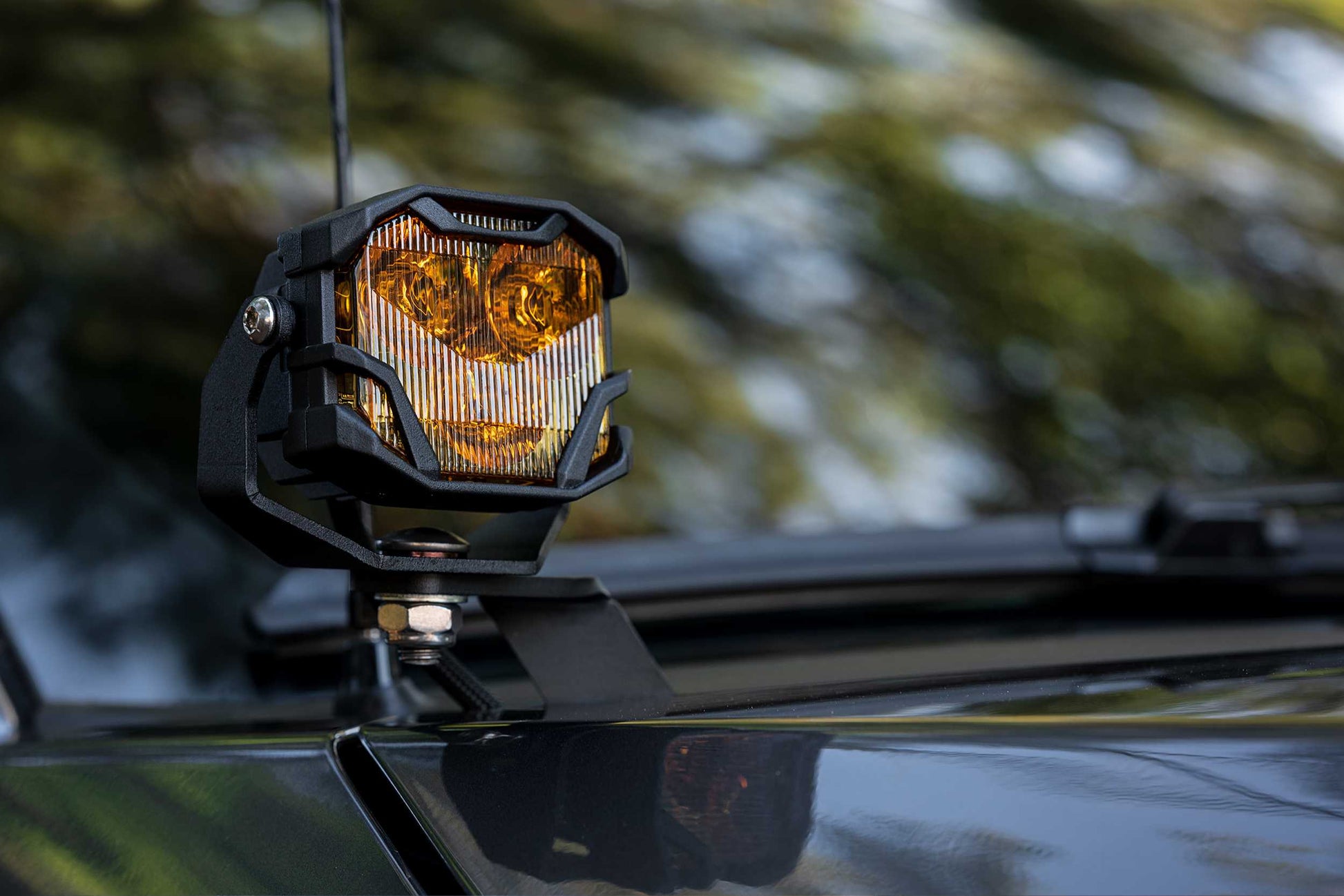

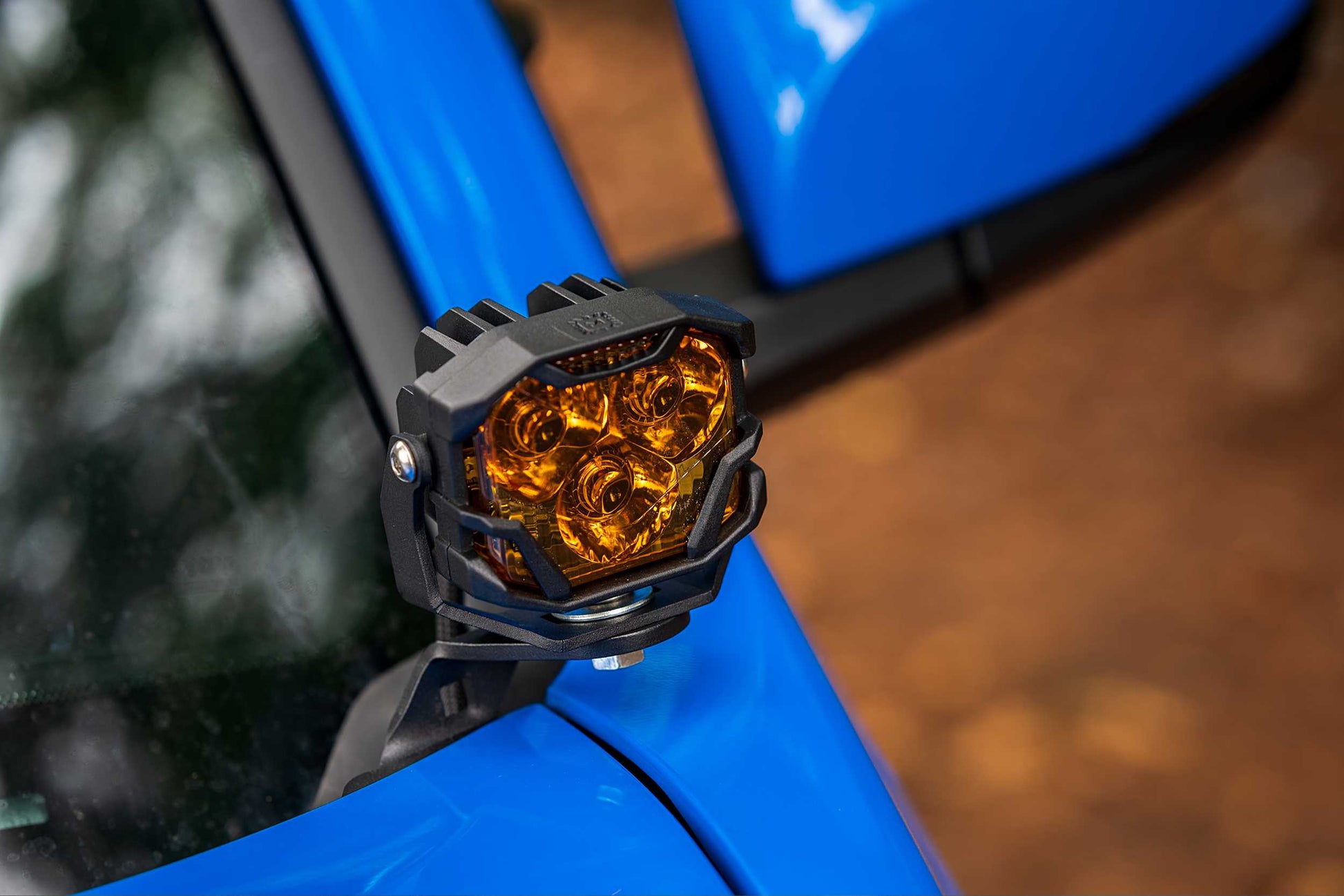

Vehicle-Specific Bolt-On Design

Engineered exclusively for the 2011-2016 Ford Super Duty, this A-pillar kit installs using factory mounting points for a seamless, modification-free installation.

Installation requires:

• No drilling
• No cutting
• No permanent modifications
• OEM-quality fit and finish

Every bracket has been thoroughly designed, prototyped, and tested to ensure precise alignment and long-lasting durability.

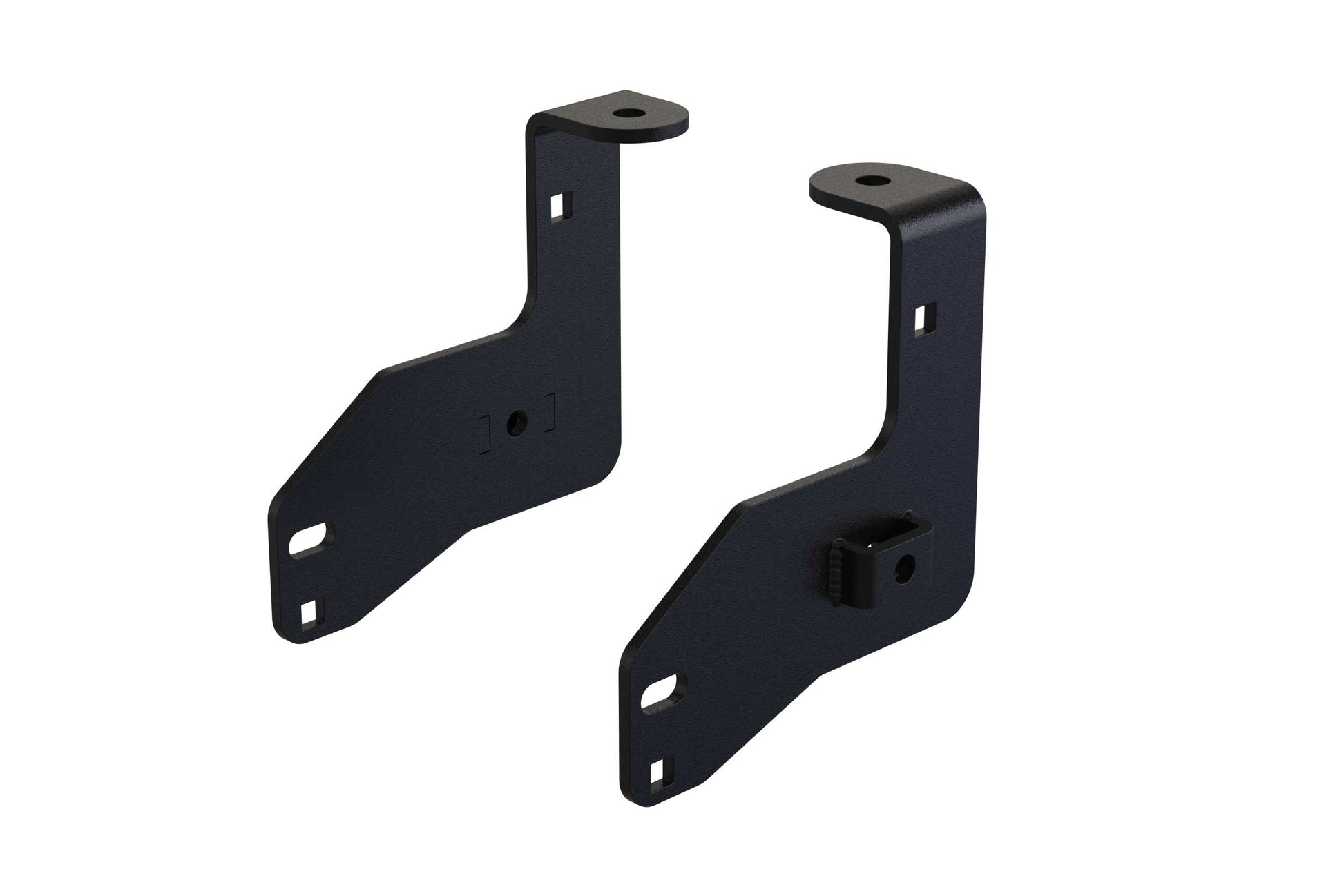

Heavy-Duty Stainless Steel Brackets

Built to withstand the harshest environments, each bracket is manufactured from laser-cut 304 stainless steel, then electroplated and powder-coated for maximum corrosion resistance.

Features include:

• Laser-cut 304 stainless steel construction
• Electroplated corrosion protection
• Durable powder-coated finish
• Factory mounting compatibility
• Integrated cable management clips
• Exceptional strength for off-road and work applications

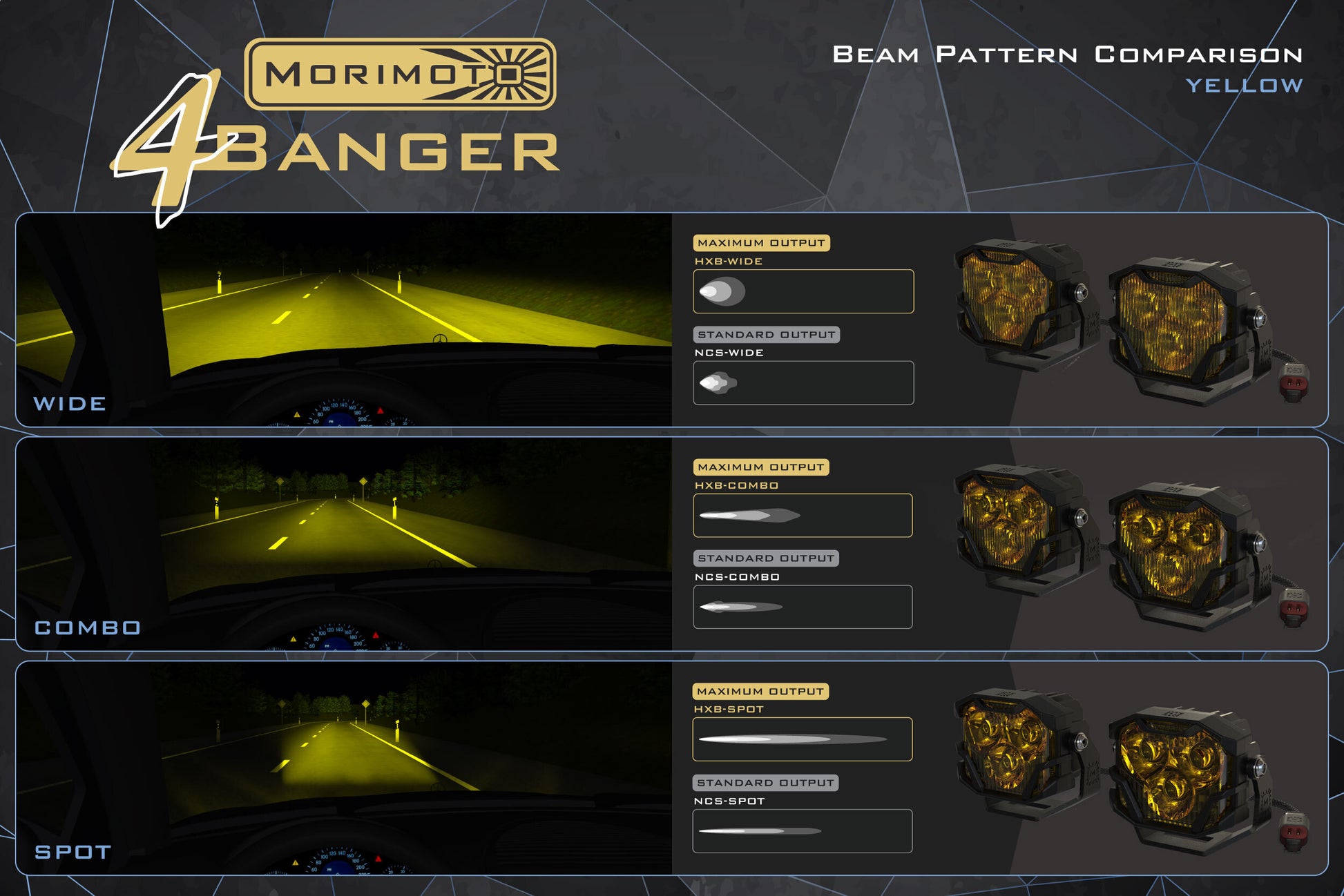

Choose Your Ideal Beam Pattern

Customize your Super Duty with the lighting setup that best fits your driving needs.

Spot Beam

Designed for maximum long-range visibility, the Spot Beam projects a focused beam far down the road or trail, making it ideal for high-speed driving and open terrain.

Combo Beam

The Combo Beam offers an excellent balance of long-distance illumination and wide peripheral coverage, making it the perfect all-around option for daily driving, overlanding, and off-road adventures.

HXB SAE Wide Beam

The HXB Wide Beam is engineered to illuminate the ground directly in front of your vehicle while delivering exceptional width and beam control.

Utilizing premium Osram HX Boost LEDs, the HXB optics feature dual-axis control to maximize beam width while concentrating peak intensity along the upper edge of the beam pattern. The result is a beam pattern similar to an SAE-compliant fog light but with significantly greater output, making it one of the most effective off-road fog light systems available.

Perfect for:

• Rain
• Snow
• Fog
• Dusty trails
• Low-speed off-road driving

White or Selective Yellow Output

Choose the output color that best suits your environment.

White LEDs

• Maximum overall brightness
• Crisp white illumination
• Excellent visibility in clear weather
• Modern OEM+ appearance

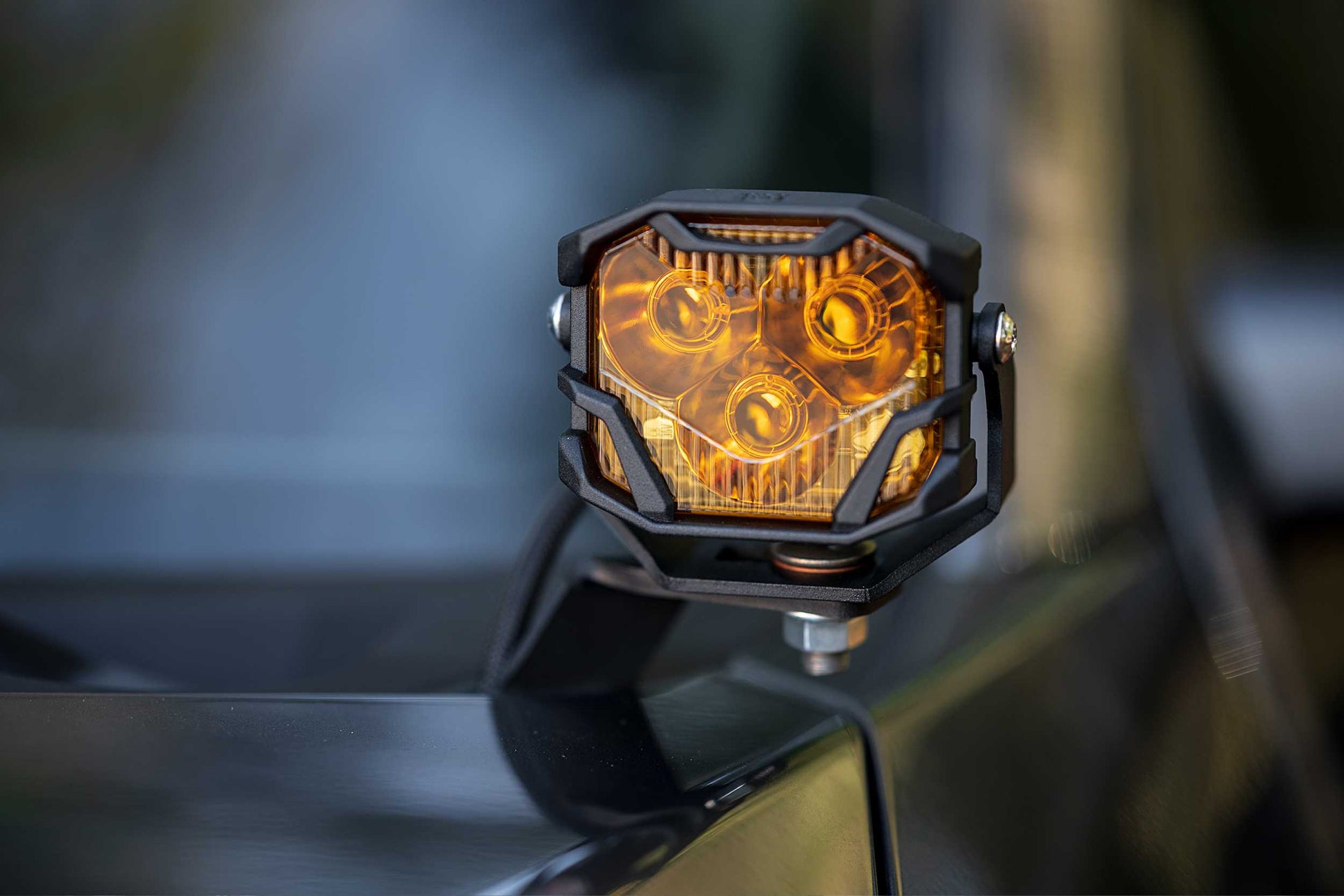

Selective Yellow LEDs

Morimoto's Phosphor-Converted Yellow LED technology produces true yellow light directly from the LED emitter instead of filtering white light through a colored lens.

Benefits include:

• Better visibility in rain
• Improved performance in fog
• Enhanced contrast in snow
• Reduced glare and eye fatigue

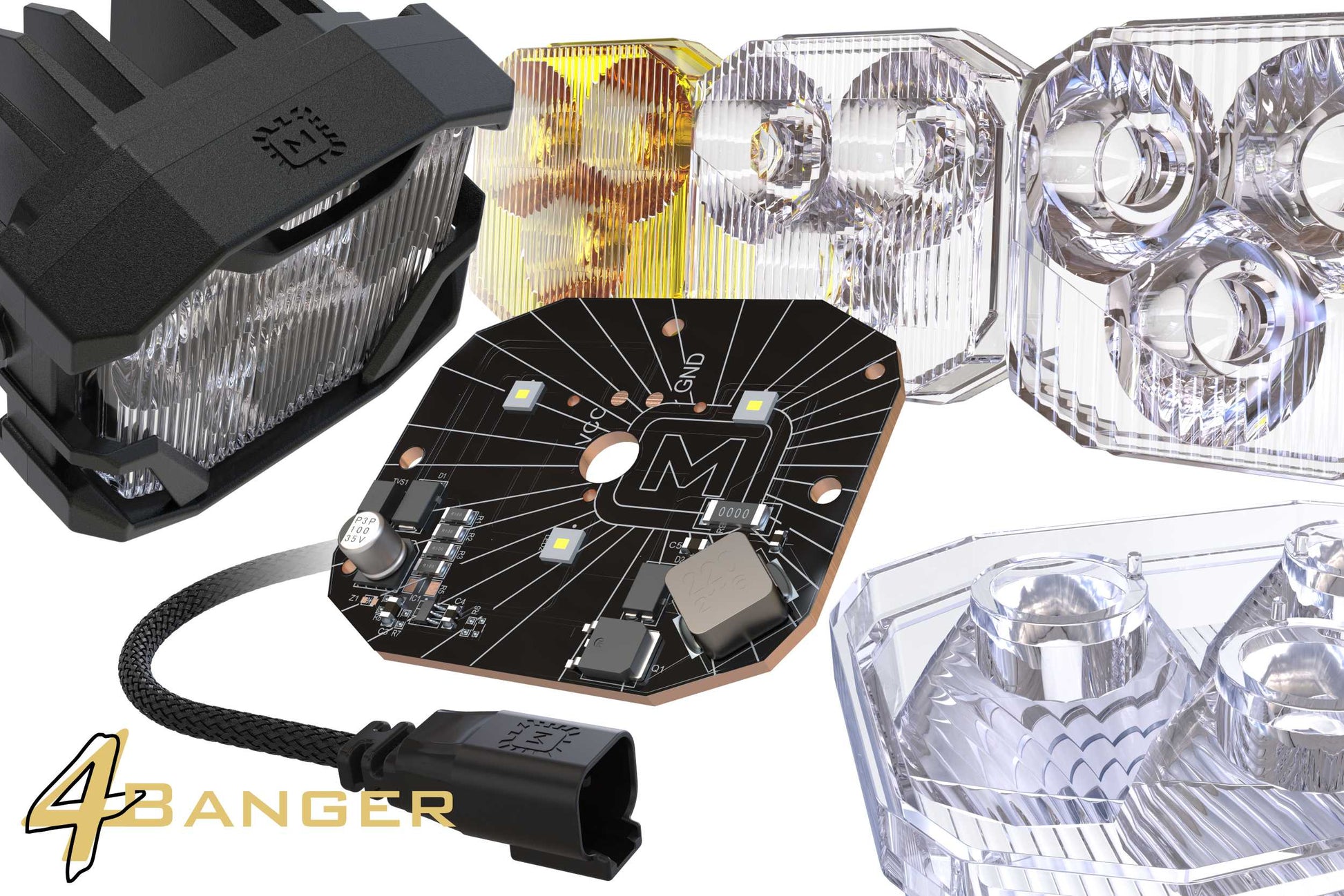

Premium 4Banger LED Technology

Every Morimoto 4Banger LED Pod is built using proprietary technology developed entirely by Morimoto.

Features include:

• Premium Nichia and Osram LEDs
• Precision-engineered optics
• Advanced LucidShape optical design
• Optimized thermal management
• Outstanding beam control and efficiency

The HXB Series delivers increased output, improved beam intensity, and superior performance for the most demanding driving conditions.

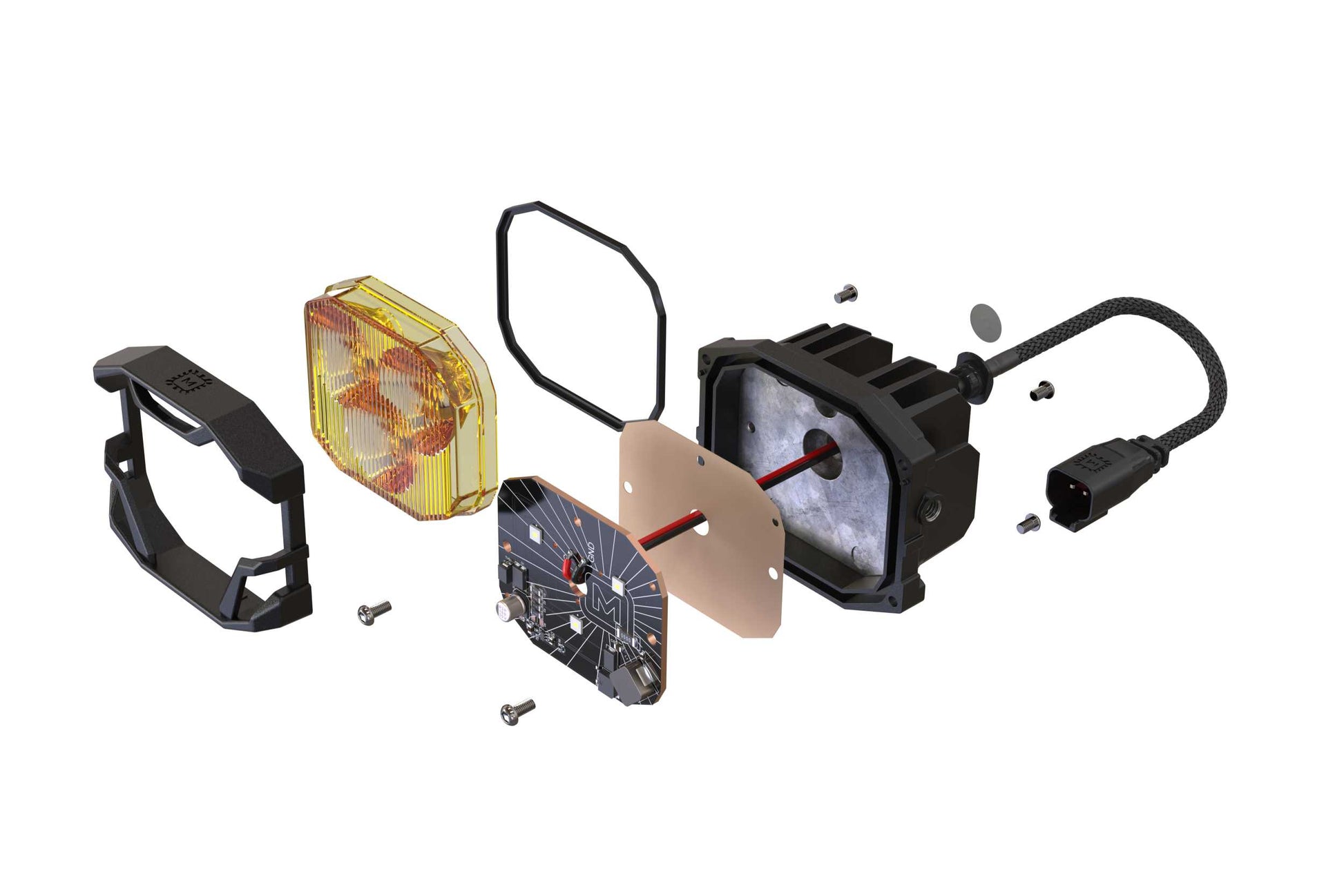

Built for Extreme Conditions

Designed for dependable performance in the harshest environments, every 4Banger LED Pod features:

• Cast aluminum housing
• Electroplated and powder-coated finish
• Copper Direct Thermal Path (DTP) circuit board
• Fully sealed electronics
• Over-molded wiring
• IP69K-rated weather resistance
• Resistance to water, dust, mud, vibration, and extreme temperatures

Clean Wiring & Professional Installation

Morimoto designed this kit for a professional, factory-style installation.

Integrated cable routing clips allow wiring to be neatly secured along the brackets before entering the engine compartment.

Pair the kit with Morimoto's optional premium switched relay harness featuring:

• Triple-sealed proprietary 4-pin relay
• 20A inline fused protection
• Waterproof DT06-2S connectors
• Stainless steel battery terminals
• Illuminated M-Spec push-button switch

Compatible with Other LED Pods

Although designed around Morimoto 4Banger LED Pods, these vehicle-specific brackets are also compatible with many popular aftermarket LED pod lights, including:

• Baja Designs
• KC HiLiTES
• Rigid Industries
• Diode Dynamics
• Other industry-standard LED pod lights

Street-Legal Performance

When properly aimed, Morimoto 4Banger beam patterns comply with applicable SAE standards.

• Spot & Combo Beams comply with SAE J581 auxiliary high-beam requirements.
• NCS & HXB Wide Beam models comply with current SAE F fog light regulations when installed and aimed according to Morimoto's specifications.

Optional Blackout Covers are also available for areas where auxiliary lights must remain covered during normal road use.

Features

• Designed specifically for 2011-2016 Ford Super Duty
• Complete bolt-on A-pillar mounting system
• No drilling or vehicle modifications required
• Laser-cut 304 stainless steel brackets
• Electroplated and powder-coated finish
• Compatible with Morimoto 4Banger LED Pods
• Available in Spot, Combo, or HXB SAE Wide beam patterns
• White or Selective Yellow LED output options
• Premium Nichia & Osram LEDs
• Osram HX Boost LEDs on HXB models
• Precision-engineered optics
• Copper DTP thermal management
• IP69K weather-resistant construction
• Integrated cable management
• Optional premium switched relay wiring harness
• Compatible with many aftermarket LED pod lights
• SAE-compliant beam patterns when properly aimed

Upgrade your 2011-2016 Ford Super Duty with the Morimoto 4Banger A-Pillar LED Light Kit and experience premium auxiliary lighting engineered for maximum visibility, exceptional durability, and factory-quality fitment—whether you're on the job site, towing heavy loads, or exploring off the beaten path.

Technical Specifications

• Peak Intensity (cd): 14,700 Cd (Post Warm-Up) (147 lux @ 10m)
• Input: Proprietary Overmolded Deutsch DT 2-Pin w/ Pigtail
• Input Voltage: 9-18V DC
• Power (Stabilized): 42w
• Current: 3.2A @ 13.2V DC
• Peak Luminosity (lm)(raw): 3,000lm
• Color: 2700K
• Light Source: 3x Osram HX Boost (5700K)
• Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
• IP Rating: IP69K (Dust / High Pressure Water Resistant)

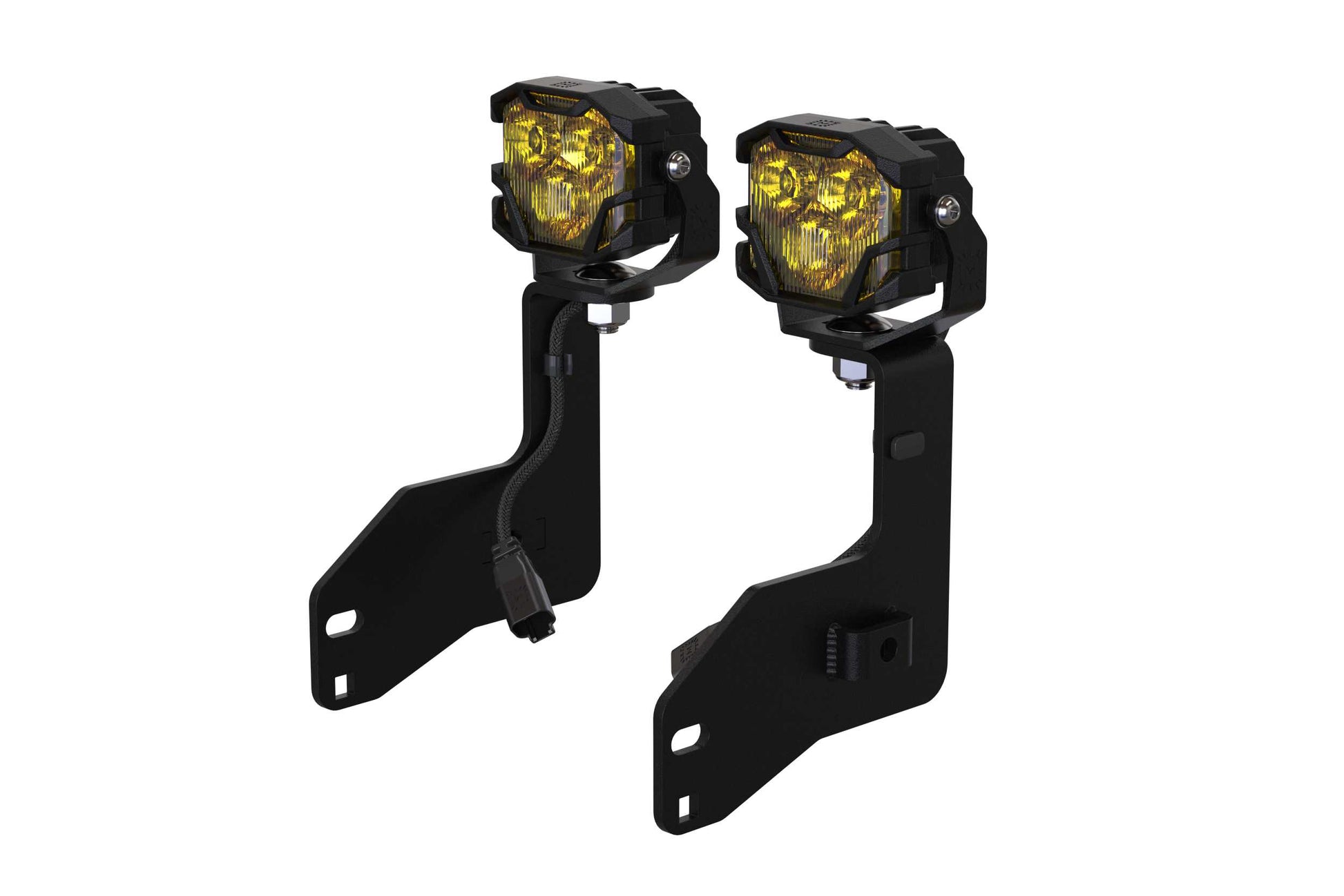

What's Included

• Ditch Light Brackets: 2x (One Pair) Morimoto Brackets (BAF040 / Ford Super Duty)
• Hardware: Stainless bolts & plastic cable clips
• LED Pods: 2x (One Pair) Morimoto 4Banger
• Wiring: 1x Morimoto Switched Relay Harness
• Warranty: Limited Lifetime

Compatibility

• Vehicles: Ford Super Duty (11-16)
