GTR Lighting CSP Mini LED Fog Light Bulbs

Upgrade your vehicle's fog lights with the GTR Lighting CSP Mini LED Fog Light Bulbs, engineered to deliver outstanding brightness, precise beam control, and OEM-like fitment. Designed to closely replicate the size and shape of your original halogen bulbs, the CSP Mini provides an effortless plug-and-play upgrade while maintaining excellent compatibility with projector and reflector fog light housings.

Powered by genuine Philips Z ES CSP LED chips, each bulb produces an impressive 2,500 lumens while consuming just 16 watts of power—more than doubling the light output of a typical halogen fog light while reducing power consumption by approximately 70%. The low-profile copper PCB and carefully positioned LED chips closely mimic the location of a halogen filament, producing an accurate beam pattern with excellent road illumination and minimal glare for oncoming drivers.

Unlike many high-output LED bulbs that rely on noisy cooling fans, the CSP Mini features a fanless passive cooling system. Its durable powder-coated 1070 aluminum housing acts as an efficient heat sink, quietly dissipating heat while protecting both the LEDs and integrated driver. The absence of moving parts also improves long-term reliability and eliminates fan failure concerns.

To maximize lifespan, the CSP Mini incorporates Intelligent Thermal Management. An integrated temperature sensor continuously monitors operating conditions and automatically reduces power output if temperatures exceed safe operating limits. Even in thermal protection mode, the bulbs continue producing significantly more light than standard halogen bulbs while protecting the LEDs from overheating. GTR Lighting has tested these bulbs continuously at temperatures up to 194°F (90°C) for over 15 days to verify exceptional durability.

Whether you're looking to improve visibility in rain, snow, or fog, or simply modernize your vehicle's appearance with a crisp white light output, the CSP Mini delivers outstanding performance without compromising beam quality or reliability.

Please note that some vehicles equipped with CANBUS electrical systems may require an additional CANBUS decoder or PWM module to eliminate bulb-out warnings or flickering.

Features

• Premium LED fog light bulb upgrade.
• Genuine Philips Z ES CSP LED chips.
• Produces up to 2,500 lumens per bulb.
• Low 16W power consumption.
• More than twice the brightness of standard halogen bulbs.
• Precise beam pattern that closely mimics the factory halogen filament.
• Ultra-compact design for OEM-like fitment.
• Fits most projector and reflector fog light housings.
• Fanless passive cooling design for silent operation.
• Durable 1070 aluminum heat sink construction.
• Intelligent Thermal Management with automatic overheating protection.
• Long-lasting, waterproof, and vibration-resistant design.
• Crisp cool white light output.
• Plug-and-play installation.
• Available in popular bulb sizes including 9005, 9006, H4, H13, and many more.
• Compatible with most vehicles; CANBUS or PWM module may be required on some applications.

Technical Specifications

• INTENSITY: 2500lm (raw)
• Power: 16w
• Current: 1.17A @ 14V DC
• INPUT VOLTAGE: 9-16V DC
• Color Rating: 6000K (Cool White)
• Compliance: IP67

What's Included

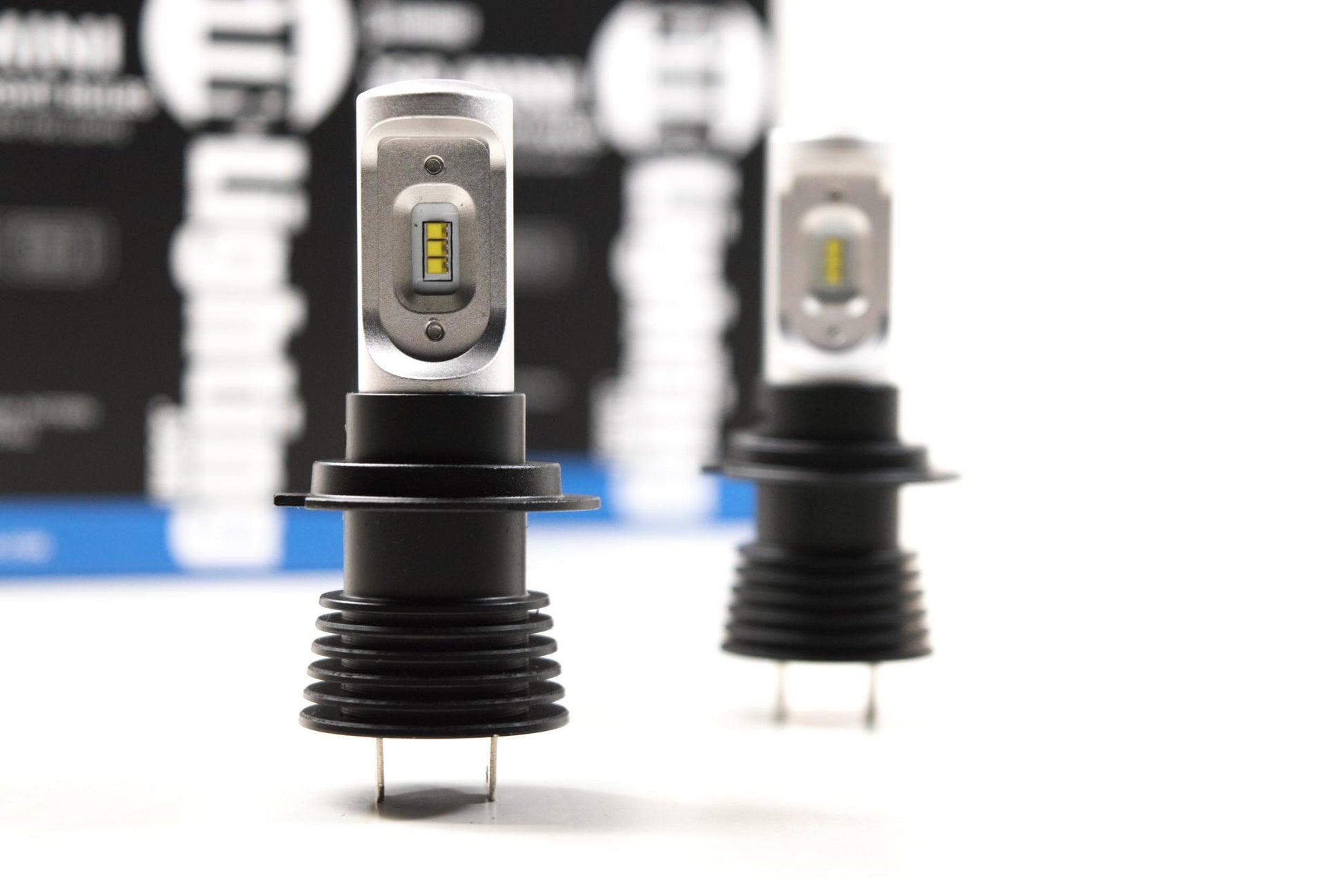

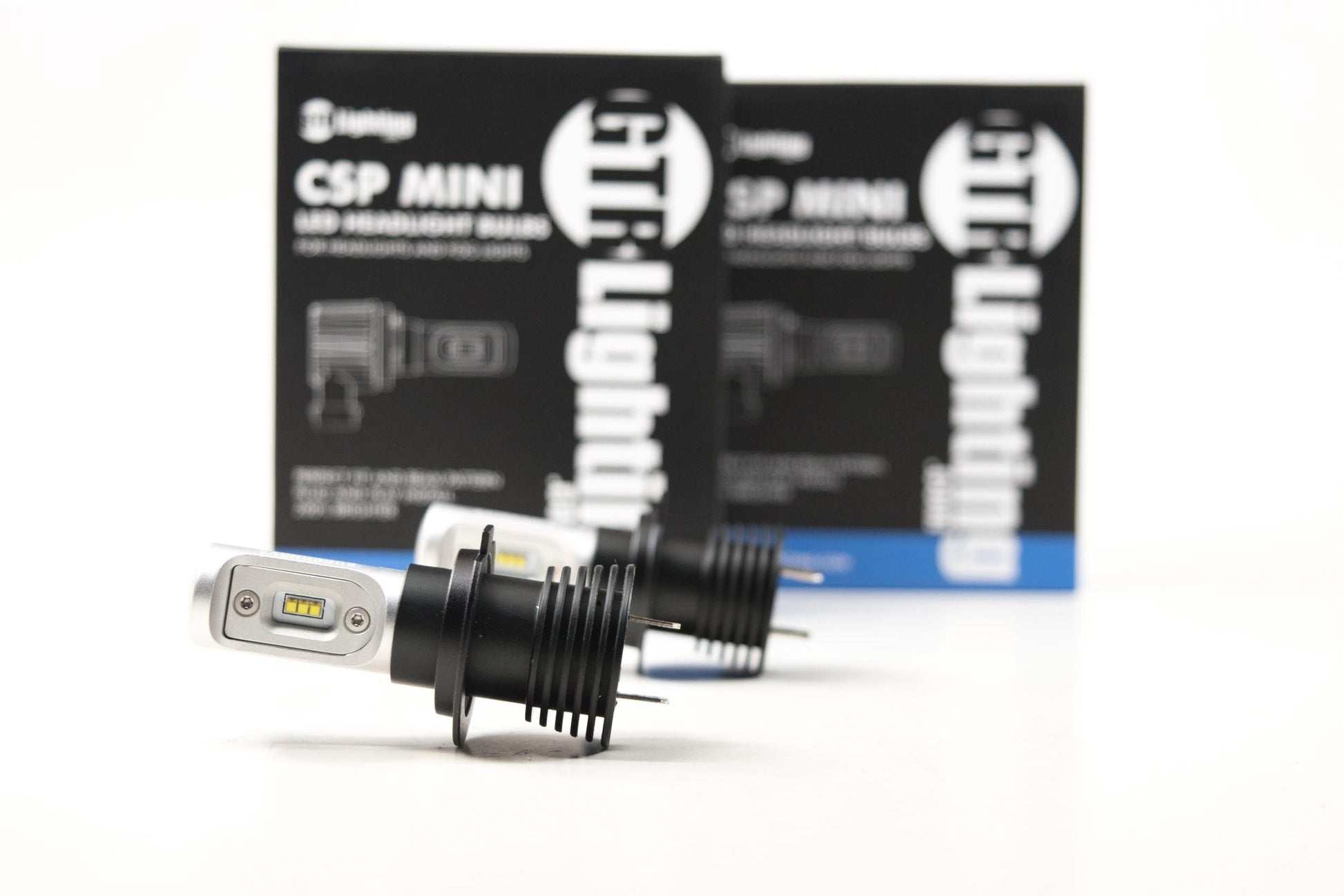

• Bulbs: 2x GTR Lighting H7 CSP Mini LED Bulb
• Warranty: 2 Years

Compatibility

• BASE/FITMENT: H7
• DOT/SAE/FVMSS108: NO (NOT STREET LEGAL IN HEADLIGHTS IN USA)
