GTR Lighting V.4 LED Fog Light Bulbs

Take your vehicle's lighting performance to the next level with the GTR Lighting V.4 LED Fog Light Bulbs. Designed for enthusiasts who demand maximum brightness without sacrificing beam quality, the V.4 combines cutting-edge LED technology, advanced thermal management, and integrated CANBUS compatibility into one premium plug-and-play upgrade.

At the heart of the V.4 is the advanced NLW1860CV2 multi-core LED chip, built on innovative CREE XD14 technology. Unlike conventional LED bulbs that stack multiple LED chips together, the V.4 utilizes a seamless LED emitter with no gaps between the diodes. This design closely replicates the location of the original halogen filament, producing an exceptionally accurate beam pattern with superior focus, wider light distribution, and minimal glare for oncoming traffic.

Delivering up to 3,600 lumens per bulb, the V.4 offers dramatically improved visibility while maintaining excellent beam control in both projector and reflector fog light housings. Whether driving through heavy fog, rain, snow, or dark back roads, these bulbs provide powerful illumination that enhances both safety and driving confidence.

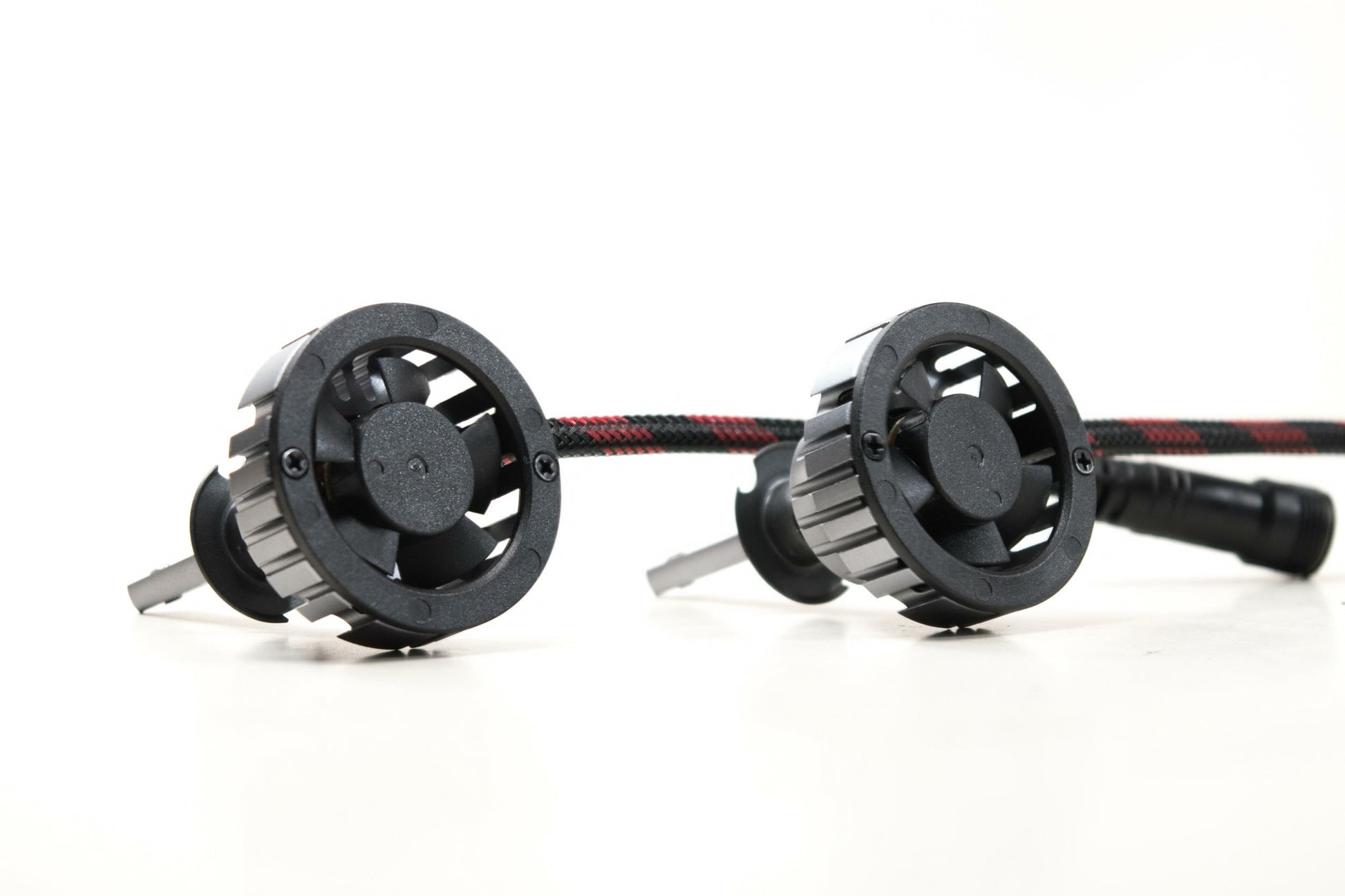

Constructed from 6063 aircraft-grade aluminum, the V.4 is engineered for maximum durability and heat dissipation. An integrated waterproof dual ball-bearing micro cooling fan continuously regulates operating temperatures while remaining compact enough to fit inside most factory fog light housings. The intelligent fan controller automatically adjusts fan speed based on temperature, providing optimal cooling performance while keeping operating noise to a minimum.

To ensure years of dependable performance, the V.4 features an advanced Intelligent Thermal Management System. If excessive temperatures or cooling issues are detected, the bulbs automatically reduce power output to protect the LEDs from damage while continuing to provide usable illumination. This intelligent protection greatly extends the lifespan of the bulbs under demanding operating conditions.

Designed for hassle-free installation, the V.4 features an ultra-compact profile with a mounting depth of approximately 20–25 mm (depending on bulb type) and a slim 39 mm heat sink diameter. This allows the bulbs to fit comfortably inside most factory fog light housings, including applications equipped with factory dust covers.

The integrated CANBUS anti-flicker and anti-error circuitry is built directly into the LED driver, eliminating the need for external decoders on most modern vehicles. This advanced electronics package helps prevent flickering, pulsing, dashboard warning lights, and bulb-out errors while providing true plug-and-play installation. Although certain PWM-controlled systems may still require an additional module, the V.4 is compatible with the vast majority of today's vehicles.

Available in virtually every popular fog light bulb size, the GTR Lighting V.4 LED Fog Light Bulbs deliver premium construction, exceptional beam accuracy, and long-lasting reliability. Backed by a 2-Year Warranty, they're built to provide years of dependable performance in any driving condition.

Features

  • Premium high-performance LED fog light bulbs.
  • Produces up to 3,600 lumens per bulb.
  • Advanced NLW1860CV2 LED chips based on CREE XD14 technology.
  • Seamless LED emitter for exceptional beam accuracy.
  • OEM-style beam pattern with improved road visibility.
  • Crisp cool white light output.
  • Durable 6063 aircraft-grade aluminum construction.
  • Waterproof dual ball-bearing micro cooling fan.
  • Intelligent thermal management with automatic overheating protection.
  • Smart variable-speed cooling fan for quiet operation.
  • Ultra-compact design with 20–25 mm mounting depth.
  • Slim 39 mm heat sink diameter.
  • Fits most factory fog light housings and dust covers.
  • Integrated CANBUS anti-flicker and anti-error circuitry.
  • Plug-and-play installation on most vehicles.
  • Compatible with projector and reflector fog light housings.
  • Available in popular bulb sizes including 9005, 9006, H4, H13, and many more.
  • Backed by a 2-Year Warranty.

Technical Specifications

  • Intensity: 3,600lm (raw)
  • Input Voltage: 8-32V DC
  • Power: 36W
  • Color Rating: 6000K (Cool White)
  • Current: 2.5A @ 14V DC

What's Included

  • LED Bulbs: 2x S-V.4 H3 Bulb
  • LED Driver: 1x S-V.4 Regulator
  • Warranty: 2 Years

Compatibility

  • BASE/FITMENT: H3, H3C
  • PWM OR DRL CIRCUITS: PWM Modules Recommended
  • DOT/SAE/FVMSS108: NO (NOT STREET LEGAL IN HEADLIGHTS IN USA)
