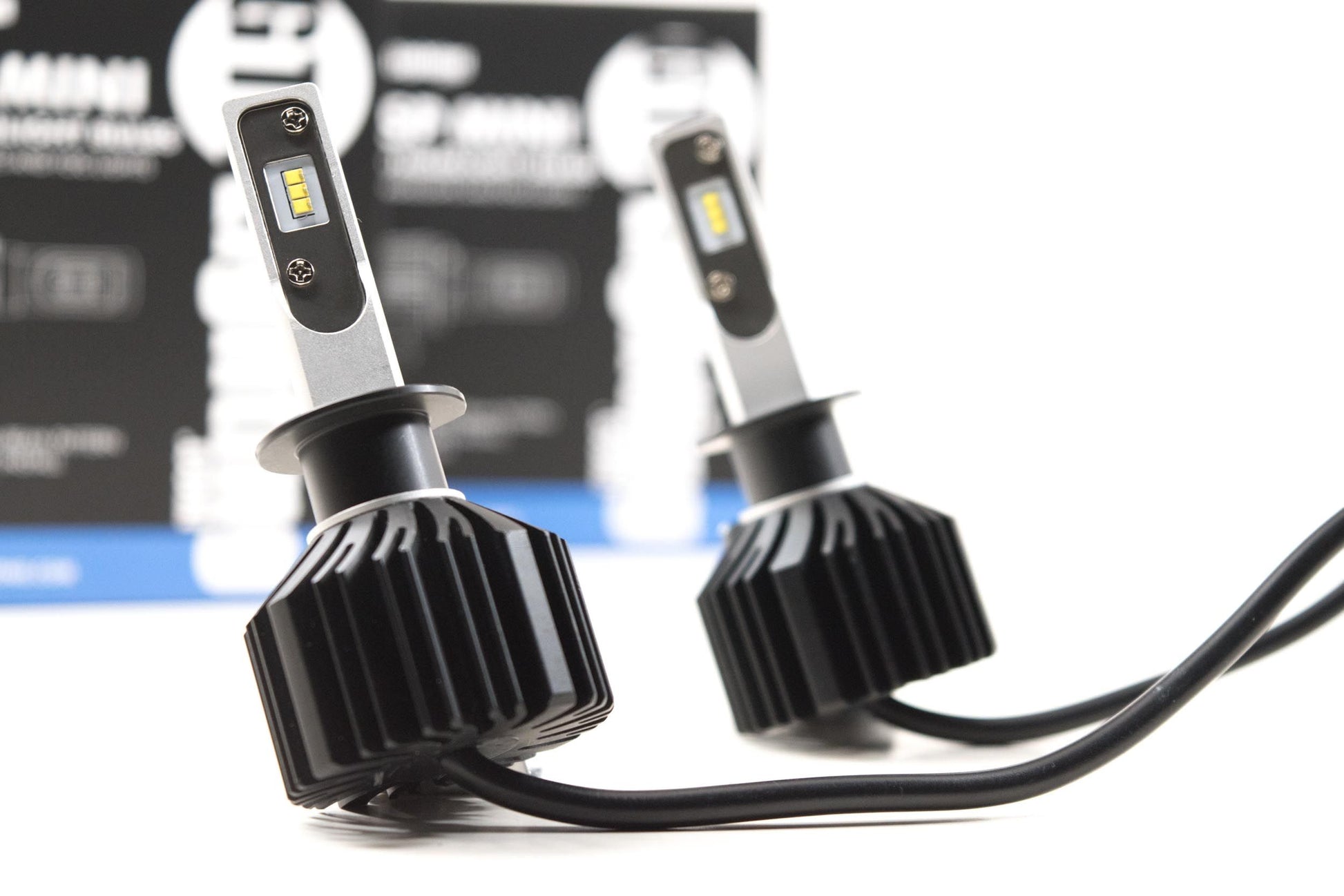

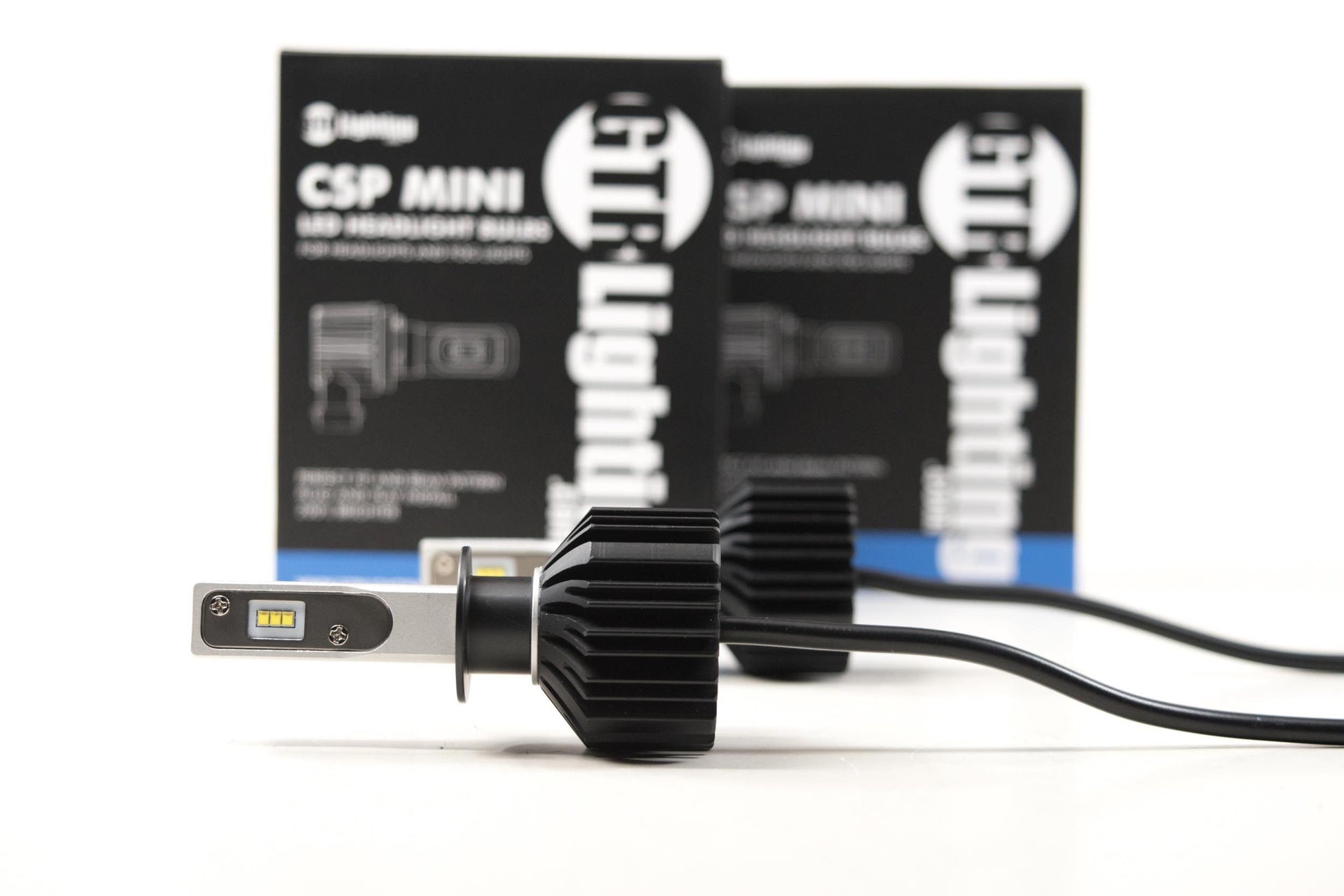

GTR Lighting CSP Mini LED Fog Light Bulbs

Enhance your vehicle's visibility and modernize its appearance with the GTR Lighting CSP Mini LED Fog Light Bulbs. Designed to provide OEM-quality fitment and an exceptionally accurate beam pattern, the CSP Mini delivers significantly improved performance over traditional halogen bulbs while maintaining the compact dimensions needed to fit virtually any factory fog light housing.

Engineered around genuine Philips Z ES CSP LED chips, the CSP Mini produces up to 2,500 lumens of crisp white light while consuming only 16 watts of power. The low-profile copper circuit board precisely positions the LEDs to closely replicate the original halogen filament, producing a focused beam pattern that improves forward visibility while minimizing glare for oncoming traffic.

One of the standout features of the CSP Mini is its fanless cooling system. Instead of relying on noisy cooling fans that can eventually fail, GTR Lighting utilizes a powder-coated 1070 aluminum housing that functions as an efficient passive heat sink. This silent cooling design improves reliability while keeping the bulb compact enough to fit inside tight factory housings and behind dust covers.

To ensure maximum durability, the CSP Mini incorporates Intelligent Thermal Management. An integrated temperature sensor continuously monitors operating temperatures and automatically reduces power output if excessive heat is detected. This advanced protection system prevents LED damage while maintaining light output that remains noticeably brighter than factory halogen bulbs, ensuring years of dependable performance.

Whether you're driving through rain, snow, or fog, or simply want a cleaner, brighter appearance, the CSP Mini delivers excellent illumination with OEM-style beam control and premium reliability.

Please note that some vehicles equipped with CANBUS electrical systems may require an additional CANBUS decoder or PWM module to prevent bulb-out warnings or flickering.

Features

• Premium LED fog light bulb upgrade.
• Genuine Philips Z ES CSP LED chips.
• Produces up to 2,500 lumens per bulb.
• Low 16W power consumption.
• Approximately 2-3 times brighter than standard halogen bulbs.
• Precise OEM-style beam pattern.
• Ultra-compact design for factory-like fitment.
• Fits most projector and reflector fog light housings.
• Compatible with factory dust covers.
• Silent fanless cooling system.
• Durable 1070 aluminum heat sink construction.
• Intelligent Thermal Management with automatic overheating protection.
• Long service life with superior heat resistance.
• Plug-and-play installation.
• Available in multiple popular bulb sizes, including 9005, 9006, H4, H13, and more.
• CANBUS or PWM module may be required on certain vehicles.

Technical Specifications

• INTENSITY: 2500lm (raw)
• Power: 16w
• Current: 1.17A @ 14V DC
• INPUT VOLTAGE: 9-16V DC
• Color Rating: 6000K (Cool White)
• Compliance: IP67

What's Included

• Bulbs: 2x GTR Lighting H3 CSP Mini LED Bulb
• Warranty: 2 Years

Compatibility

• BASE/FITMENT: H3
• DOT/SAE/FVMSS108: NO (NOT STREET LEGAL IN HEADLIGHTS IN USA)

Product Video
