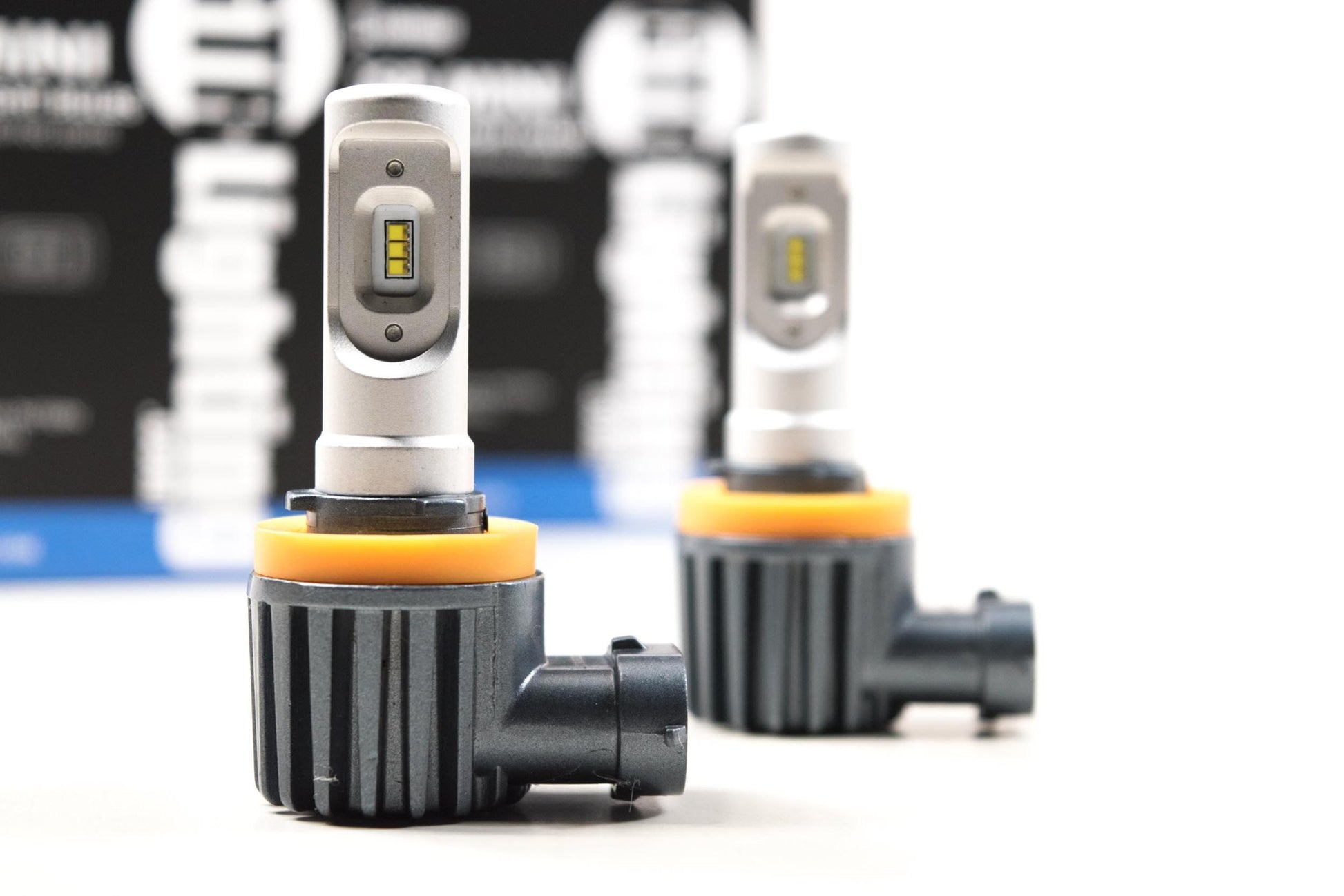

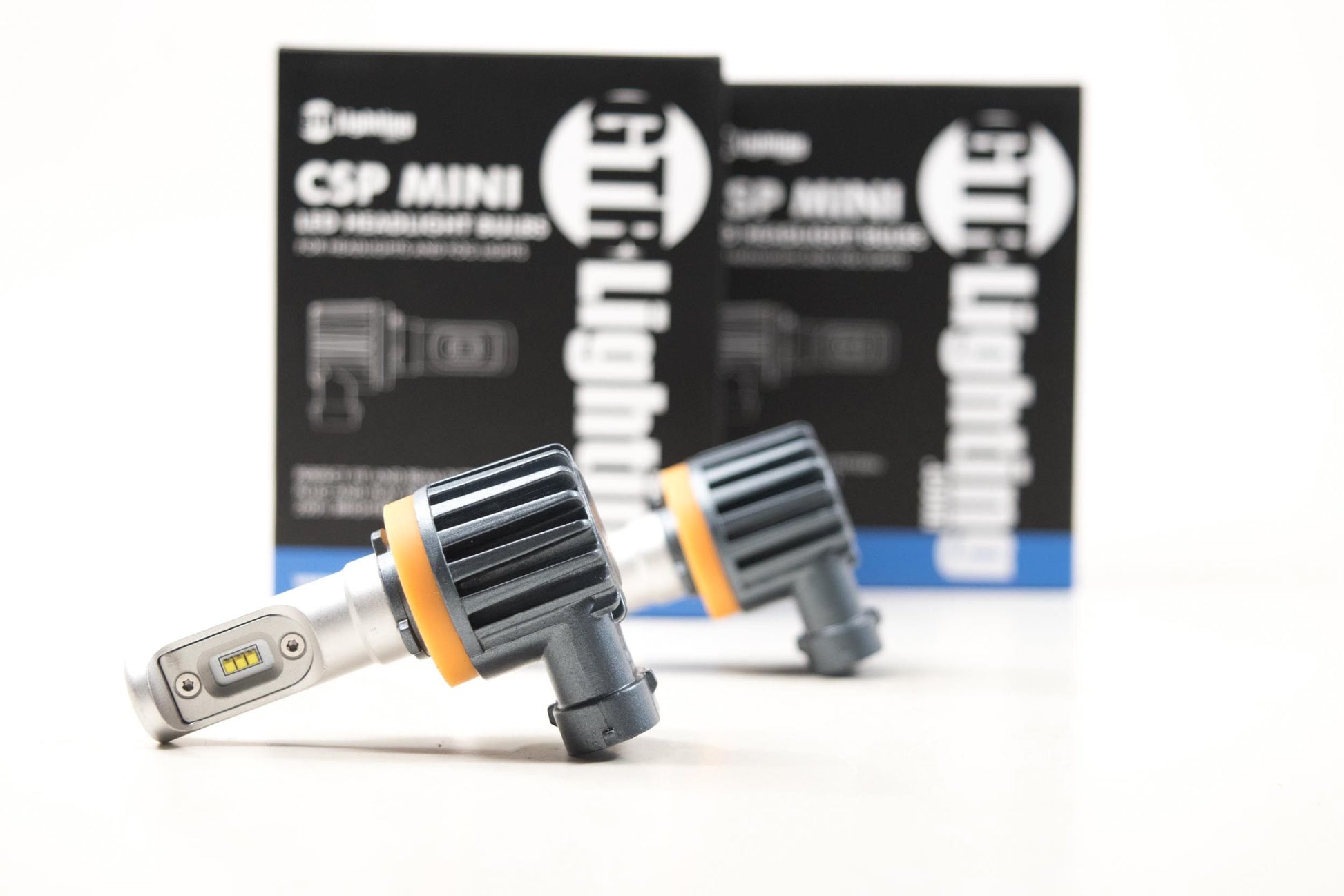

GTR Lighting CSP Mini LED Fog Light Bulbs

Upgrade your factory fog lights with the GTR Lighting CSP Mini LED Fog Light Bulbs, designed to deliver outstanding brightness, OEM-style beam performance, and exceptional reliability. Engineered to closely match the size and shape of your original halogen bulbs, the CSP Mini offers a true plug-and-play upgrade that fits virtually any factory fog light housing without compromising beam quality or installation ease.

Powered by genuine Philips Z ES CSP LED chips, each bulb produces up to 2,500 lumens while consuming only 16 watts of power. The low-profile copper PCB positions the LEDs to closely replicate the location of a halogen filament, creating an exceptionally accurate beam pattern with improved road illumination, excellent hotspot intensity, and minimal glare for oncoming traffic.

Unlike many high-output LED bulbs that rely on noisy cooling fans, the CSP Mini utilizes a fanless passive cooling system. Its durable powder-coated 1070 aluminum housing acts as an efficient heat sink, quietly dissipating heat while eliminating moving parts that can wear out over time. This compact design allows the bulbs to fit inside most factory fog light housings, including those equipped with dust covers.

For maximum reliability, the CSP Mini features Intelligent Thermal Management. An integrated temperature sensor continuously monitors operating temperatures and automatically reduces power output if excessive heat is detected. Even while operating in thermal protection mode, the bulbs continue to produce noticeably more light than factory halogen bulbs, protecting the LEDs from premature failure while ensuring years of dependable performance.

Built using premium Philips LED technology with superior heat resistance and optical precision, the CSP Mini delivers consistent performance in all driving conditions. Whether you're navigating through rain, snow, or fog, or simply upgrading your vehicle with a modern cool white appearance, these bulbs provide significantly improved visibility and long-lasting durability.

Some vehicles equipped with CANBUS or PWM-controlled lighting systems may require an additional CANBUS decoder or PWM module to eliminate flickering or dashboard warning messages.

Features

• Premium LED fog light bulb upgrade.
• Genuine Philips Z ES CSP LED chips.
• Produces up to 2,500 lumens per bulb.
• Low 16W power consumption.
• Approximately 2-3 times brighter than factory halogen bulbs.
• OEM-style beam pattern with precise light distribution.
• Ultra-compact design for factory-like fitment.
• Fits projector and reflector fog light housings.
• Compatible with factory dust covers.
• Silent fanless cooling design.
• Durable 1070 aluminum heat sink construction.
• Intelligent Thermal Management with automatic overheating protection.
• High heat resistance for extended service life.
• Plug-and-play installation.
• Available in popular bulb sizes including 9005, 9006, H4, H13, and many more.
• CANBUS or PWM module may be required for certain vehicle applications.
• Crisp cool white light output for enhanced visibility and a modern appearance.

Technical Specifications

• INTENSITY: 2500lm (raw)
• Power: 16w
• Current: 1.17A @ 14V DC
• INPUT VOLTAGE: 9-16V DC
• Color Rating: 6000K (Cool White)
• Compliance: IP67

What's Included

• Bulbs: 2x GTR Lighting H11/H9/H8 CSP Mini LED Bulb
• Warranty: 2 Years

Compatibility

• BASE/FITMENT: H11/H8/H9
• DOT/SAE/FVMSS108: NO (NOT STREET LEGAL IN HEADLIGHTS IN USA)
