BigBanger LED Pods: HXB Spot Beam

Experience extreme long-range illumination with the Morimoto BigBanger HXB Spot Beam LED Pod, engineered to deliver incredible brightness, precision, and unmatched distance for serious off-road adventures!

Designed, engineered, and tested in the USA, the Morimoto BigBanger HXB Spot Beam represents the ultimate in high-performance auxiliary lighting. Featuring seven premium Osram HX Boost LEDs and advanced precision optics, this powerful LED pod delivers an astonishing 580,000 candela of light intensity in the white-output configuration, with a beam capable of reaching up to 800 meters.

The HXB Spot Beam is specifically engineered for maximum long-distance visibility, making it ideal for high-speed off-road driving, remote trails, and demanding nighttime adventures. Its concentrated beam pattern projects intense illumination far ahead, helping drivers identify distant obstacles and terrain with exceptional clarity.

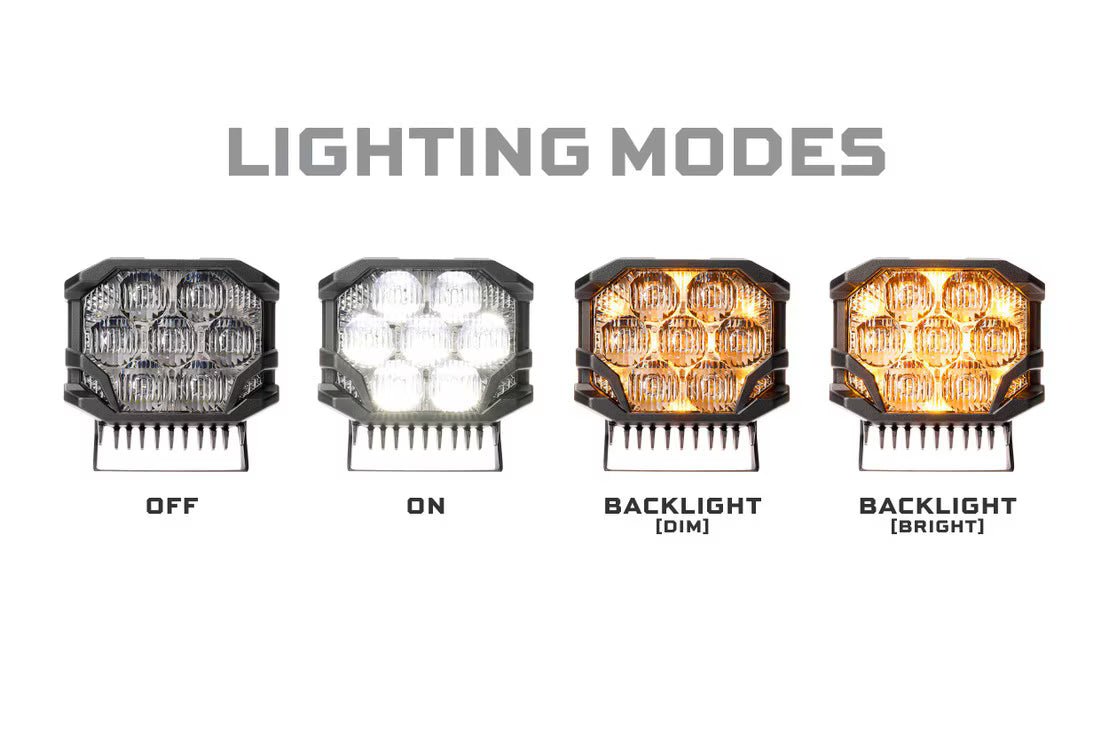

Each BigBanger features an integrated dual-intensity amber backlight, adding a distinctive appearance to your vehicle. When paired with the appropriate Morimoto wiring harness, the amber backlight can operate at full daytime intensity or dim significantly for nighttime use.

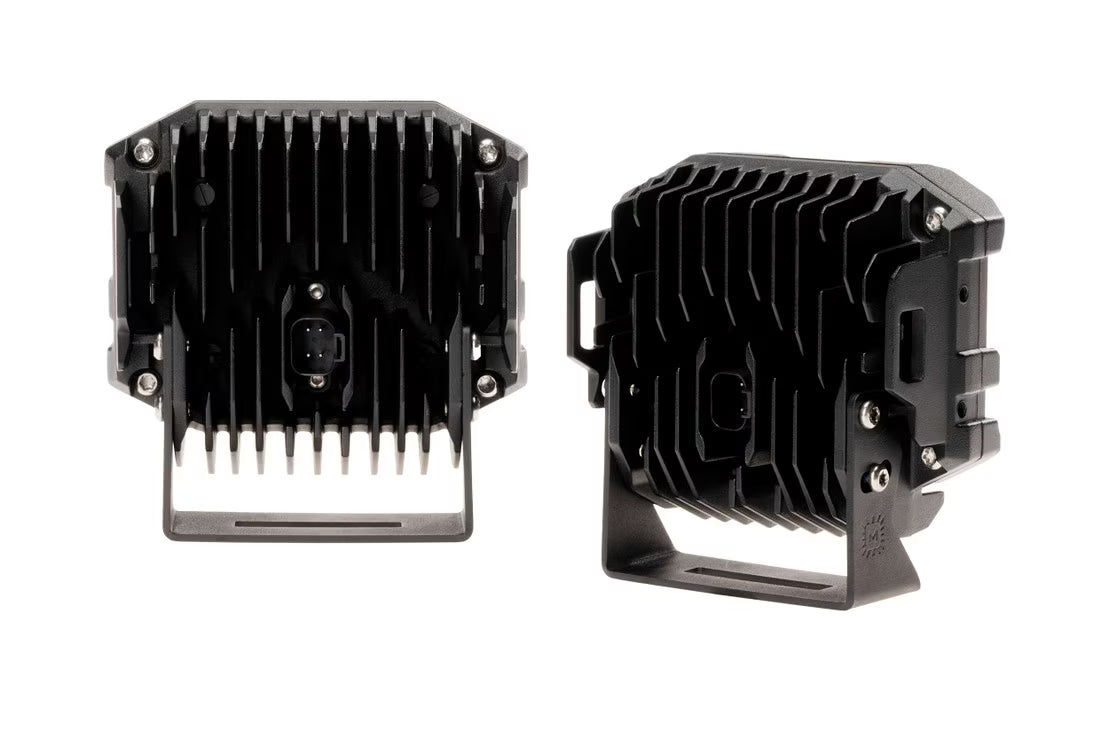

Built for extreme durability, the BigBanger features a copper DTP circuit board for efficient thermal management, a powder-coated die-cast aluminum housing, and IP69K-rated weather resistance. Whether exposed to rain, mud, dust, or challenging off-road conditions, these pods are designed for reliable performance.

Available in white or yellow output, the BigBanger HXB Spot Beam can be installed individually or combined with additional pods using compatible Morimoto BangerBar linking accessories to create a customized high-performance LED light bar.

Sold individually. Each package includes one Morimoto BigBanger HXB Spot Beam LED Pod, mounting bracket, and installation hardware.

FEATURES & BENEFITS

• Extreme Long-Range Illumination: HXB Spot Beam projects concentrated light up to 800 meters for outstanding distance visibility.
• 580,000 Candela Output: Incredible light intensity in the white-output configuration for demanding off-road applications.
• Premium Osram LEDs: Seven high-performance Osram HX Boost LEDs provide exceptional brightness and efficiency.

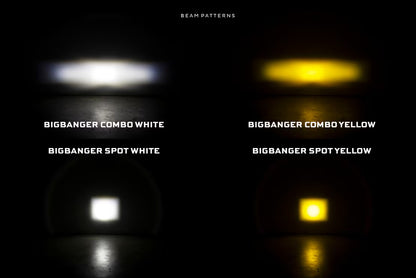

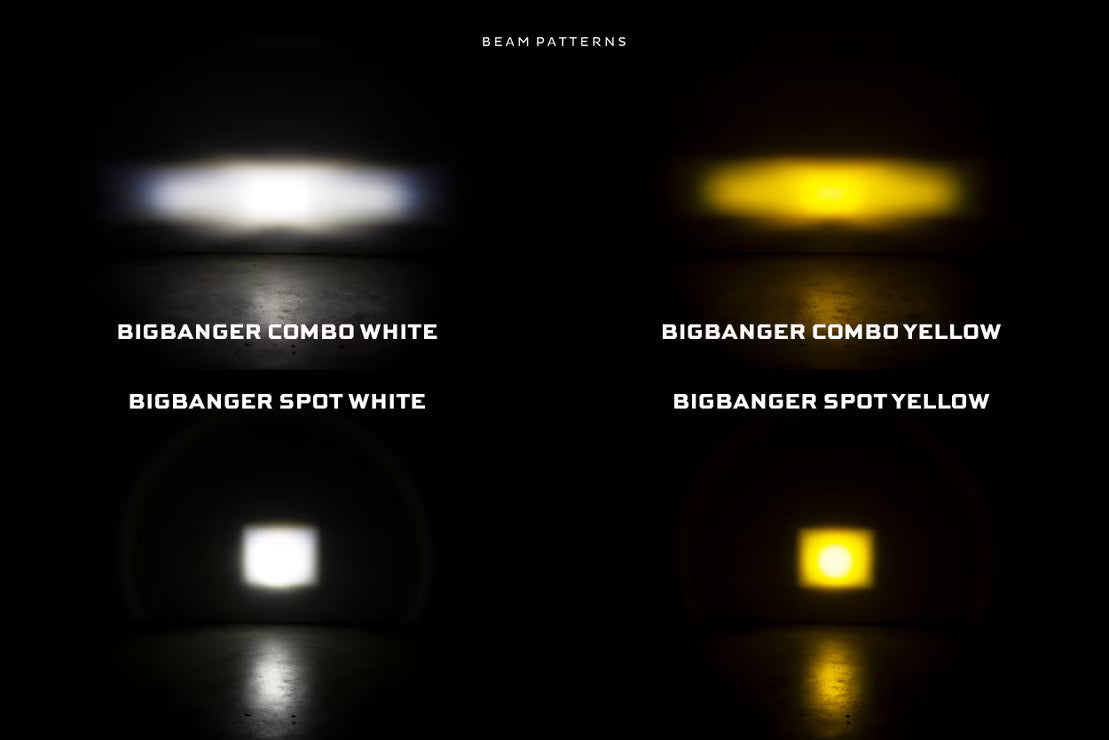

• Precision Spot Beam Optics: Concentrated beam pattern designed to maximize forward projection and long-distance visibility.
• Dual-Intensity Amber Backlight: Integrated amber accent lighting with daytime and reduced-intensity nighttime modes when used with compatible wiring.
• White or Yellow Output: Choose between 5700K white or 2700K yellow lighting configurations.
• Advanced Thermal Management: Copper DTP PCB efficiently transfers heat to maintain reliable performance.

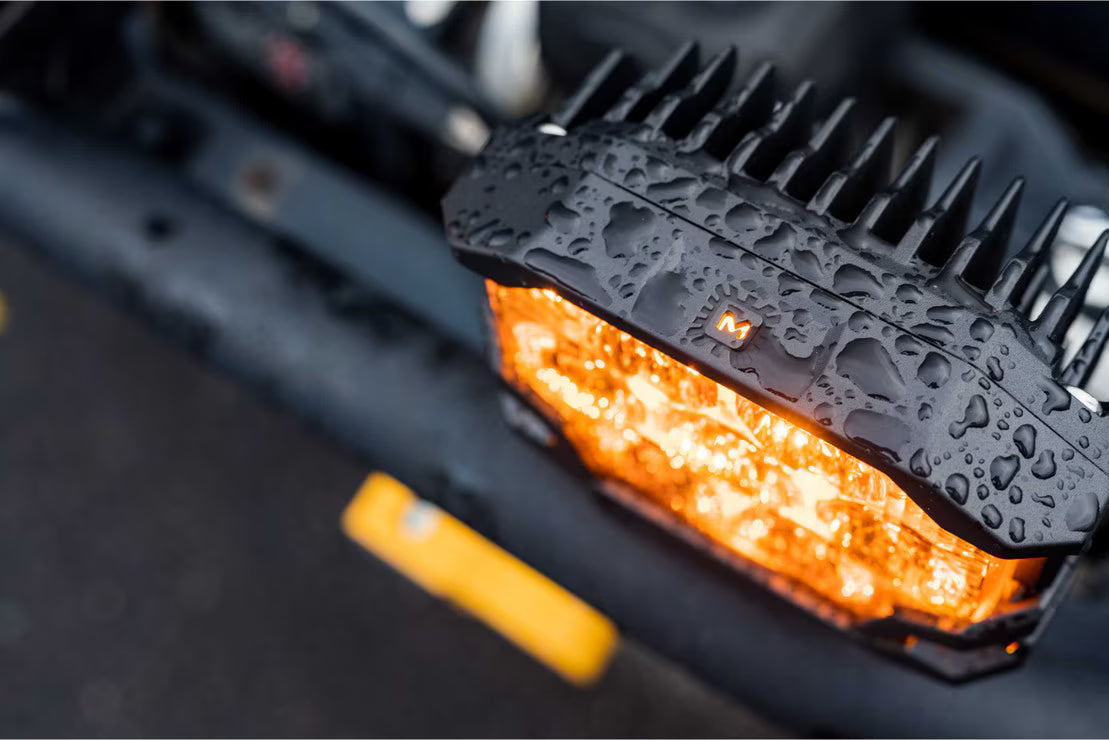

• IP69K Weather Resistance: Engineered to withstand demanding exposure to water, dust, mud, and harsh outdoor conditions.
• Heavy-Duty Construction: Powder-coated die-cast aluminum housing with durable polycarbonate lens and stainless steel mounting hardware.
• Customizable Lighting Setup: Compatible with Morimoto BangerBar accessories for creating custom multi-pod lighting systems.
• Universal Mounting: Includes a surface mounting bracket for compatible bumpers, roof racks, and auxiliary lighting applications.
• Lifetime Limited Warranty: Backed by Morimoto's manufacturer warranty.

TECHNICAL SPECIFICATIONS

• Model: Morimoto BigBanger HXB Spot Beam
• Part Number: BAF122

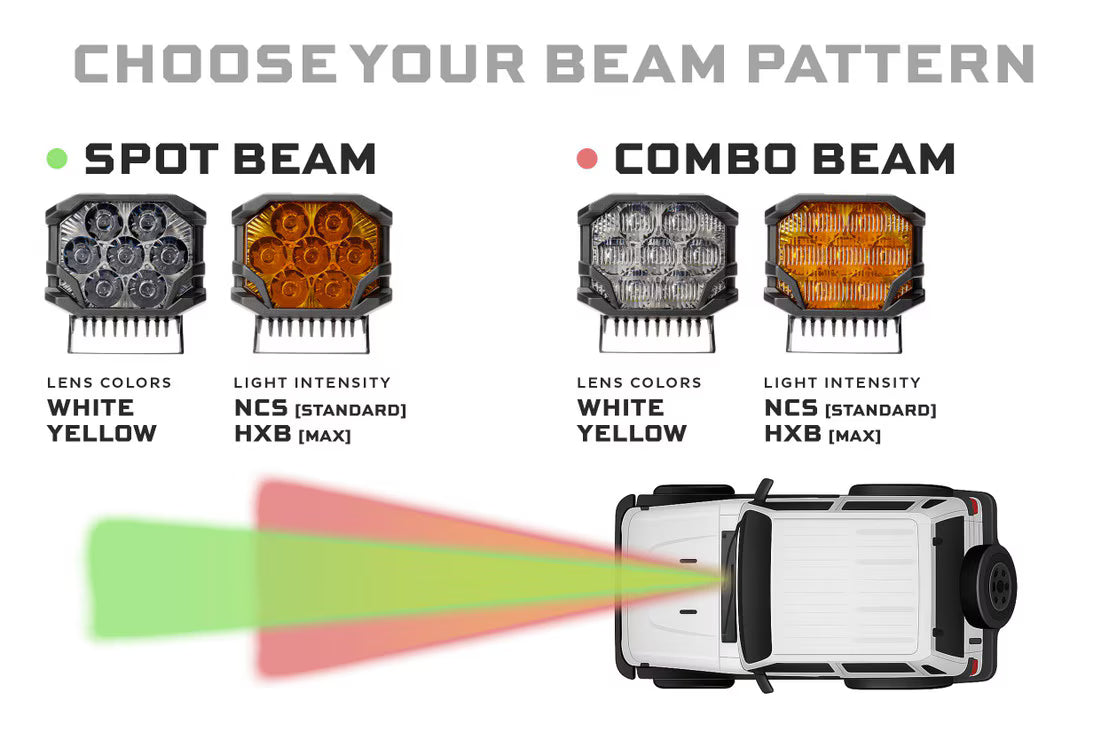

• Beam Pattern: HXB Spot
• Light Intensity (White): 580,000 Candela
• Light Intensity (Yellow): 400,000 Candela
• Maximum Beam Reach: Up to 800 meters
• Raw Light Output: 7,000 Lumens
• Input Voltage: 9–18V DC
• Current Draw at 13.5V: 5.55A Stabilized
• Color Temperature: 5700K White / 2700K Yellow
• Main LEDs: 7x Osram HX Boost
• Amber Backlight: 12x CREE XP-E2 PC Amber LEDs
• Connector: Integrated Deutsch DT 4-Pin
• Housing: Powder-Coated Die-Cast Aluminum
• Lens: Makrolon Polycarbonate
• Weather Resistance: IP69K

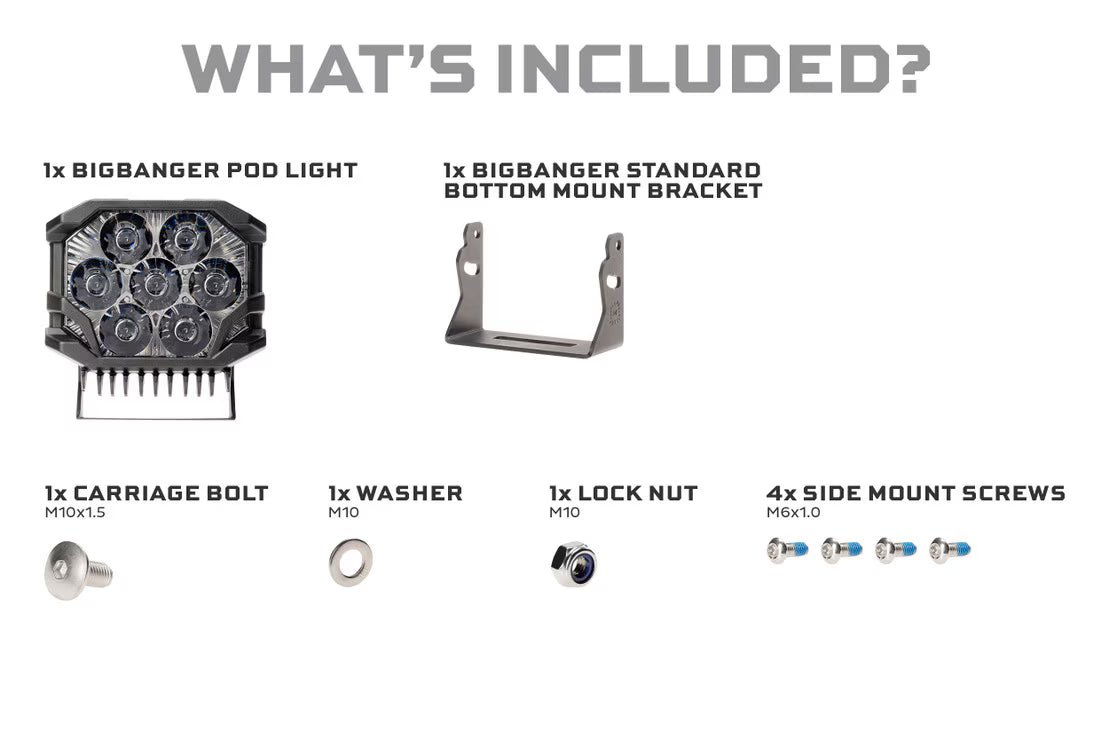

WHAT'S INCLUDED

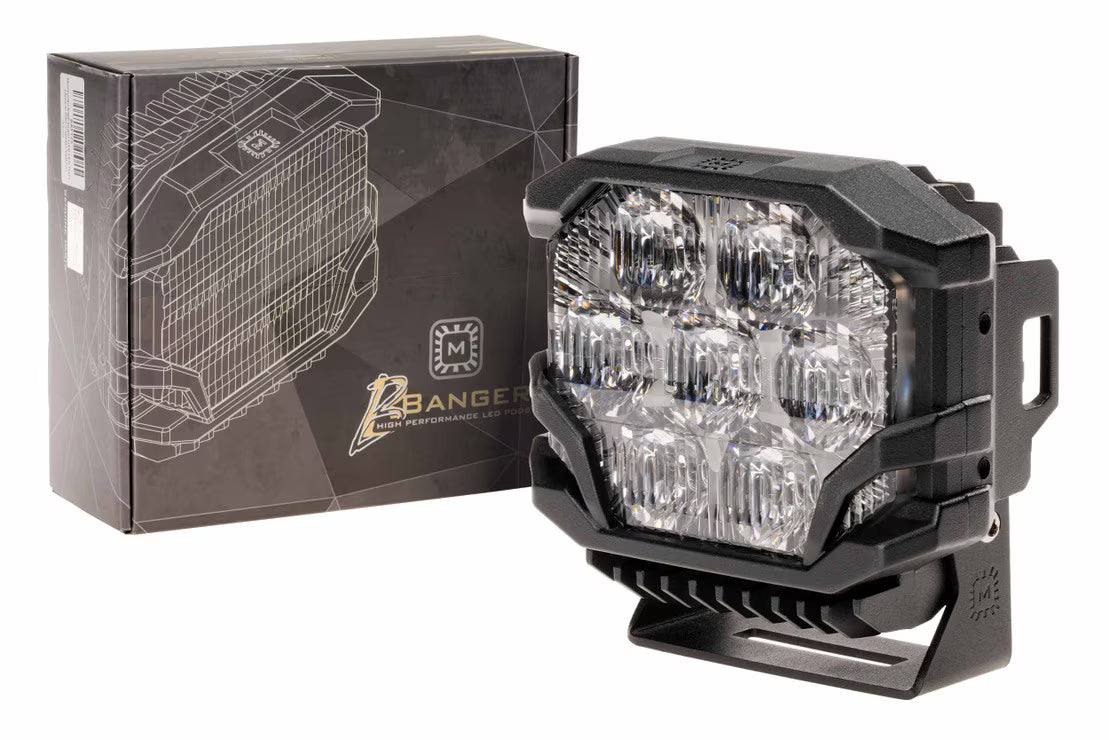

• LED Pod: 1x Morimoto BigBanger HXB Spot Beam (Sold Individually).
• Mounting Bracket: 1x Surface Mount Bracket.
• Mounting Hardware:
  • 2x M10 x 1.5 Stainless Steel Carriage Bolts
  • 2x M10 Stainless Steel Washers
  • 2x M10 Stainless Steel Lock Nuts
  • 8x M6 x 1.0 Stainless Steel Screws
• Optional Wiring: Morimoto Switched Relay Harness or Wiring Pigtail, depending on selected configuration.

WARRANTY INFORMATION

This Morimoto product includes a Lifetime Limited Warranty, serviced and supported by the Morimoto team in Atlanta, Georgia. The warranty does not cover modifications, alterations, or misuse.

For additional warranty information, please visit the Morimoto Warranty & FAQ Page.

If you experience any issues during installation, please document the concern with photos or video and contact us before removing the product.

Important: Manufacturer warranty coverage is only valid when purchased from an Authorized Dealer.
