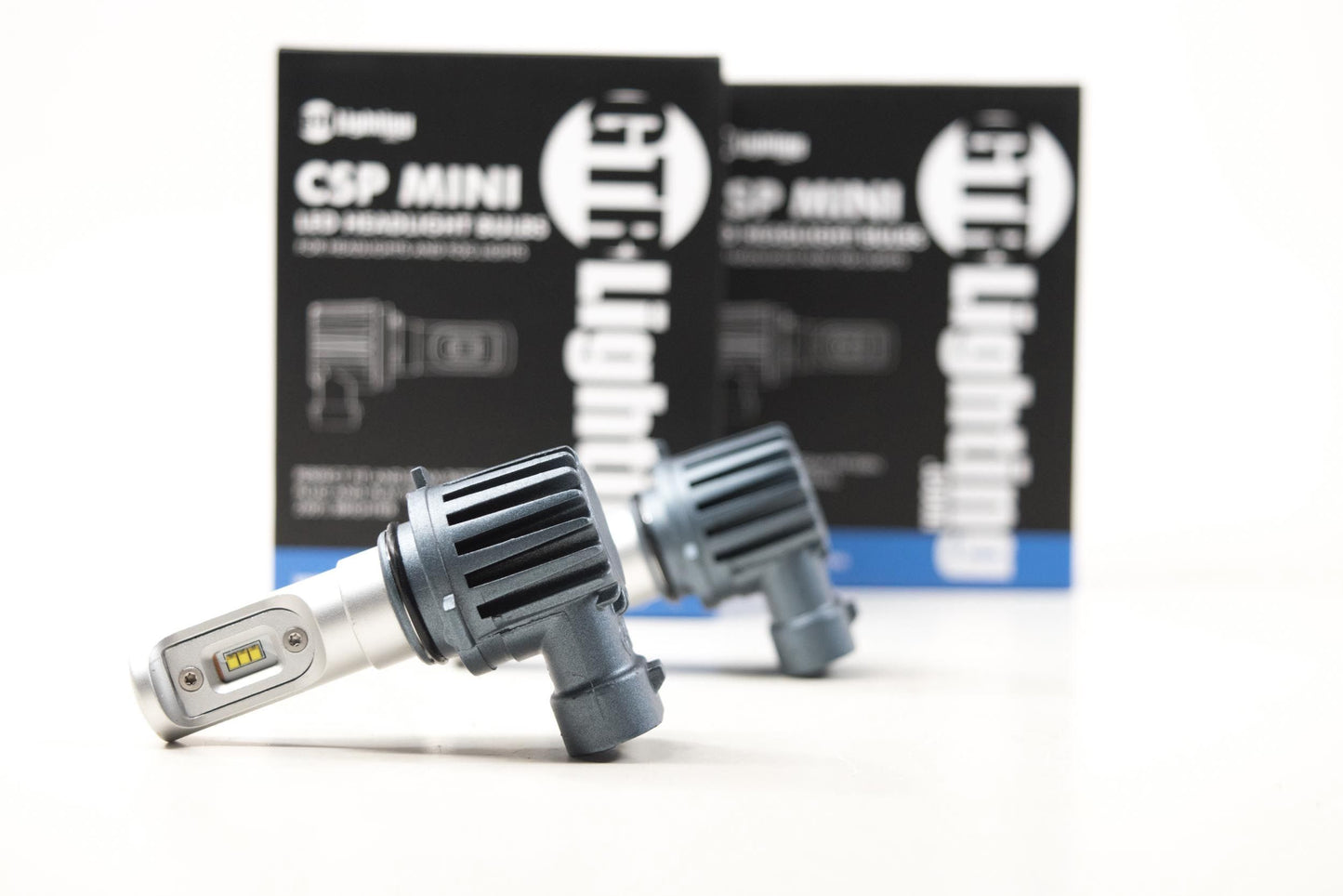

GTR Lighting CSP Mini LED Fog Light Bulbs

Upgrade your factory fog lights with the GTR Lighting CSP Mini LED Fog Light Bulbs, engineered to deliver exceptional brightness, OEM-quality beam performance, and a compact design that fits virtually any fog light housing. Built around premium Philips LED technology and intelligent thermal management, the CSP Mini provides a reliable, high-performance lighting upgrade without the need for bulky cooling fans.

Designed with perfect fitment and perfect beam pattern in mind, the CSP Mini closely replicates the size and shape of a factory halogen bulb for effortless installation. Its low-profile copper PCB and genuine Philips Z ES CSP LED chips position the light source in the same location as the original filament, producing a sharp, focused beam pattern with improved road illumination while minimizing glare for oncoming traffic.

Producing up to 2,500 lumens while consuming only 16 watts of power, the CSP Mini delivers approximately 2 to 3 times more light than standard halogen fog light bulbs with significantly lower energy consumption. The efficient Philips CSP LEDs generate less heat, allowing the bulbs to utilize a completely fanless passive cooling system for silent operation and increased long-term reliability.

The durable 1070 aluminum housing acts as an integrated heat sink, efficiently dissipating heat from both the LEDs and internal driver. An advanced Intelligent Thermal Management system continuously monitors operating temperature and automatically reduces power output if excessive heat is detected, preventing damage to the LEDs and maximizing their lifespan. Even in thermal protection mode, the bulbs remain noticeably brighter than factory halogen bulbs.

Built using genuine Philips Z ES CSP LED chips, the CSP Mini offers outstanding heat resistance, exceptional optical precision, and consistent long-term performance. Combined with its compact design, these bulbs fit virtually all projector and reflector fog light housings, including applications with factory dust covers.

The CSP Mini is available in a wide range of popular bulb sizes, making it an ideal upgrade for countless vehicles. On certain CANBUS or PWM-controlled lighting systems, an additional CANBUS decoder or PWM module may be required to eliminate dashboard warnings or flickering.

Whether you're looking to improve visibility during fog, rain, snow, or nighttime driving, or simply want to replace outdated yellow halogen bulbs with a crisp modern white light, the GTR Lighting CSP Mini delivers outstanding performance, efficiency, and reliability.

Features

• Premium LED fog light bulb upgrade.
• Produces up to 2,500 lumens per bulb.
• Genuine Philips Z ES CSP LED chips.
• Low-profile copper PCB for OEM-style beam pattern.
• Approximately 2–3x brighter than factory halogen bulbs.
• Efficient 16W power consumption.
• Silent fanless passive cooling design.
• Durable 1070 aluminum heat sink construction.
• Intelligent Thermal Management with automatic overheating protection.
• Compact design for excellent housing clearance.
• Fits projector and reflector fog light housings.
• Compatible with factory dust covers.
• Crisp cool white light output.
• Plug-and-play installation.
• Available in popular bulb sizes including 9005, 9006, H4, H13, and many more.
• CANBUS/PWM compatible (additional decoder may be required on some vehicles).
• Long-lasting LED performance.

Technical Specifications

• INTENSITY: 2500lm (raw)
• Power: 16w
• Current: 1.17A @ 14V DC
• INPUT VOLTAGE: 9-16V DC
• Color Rating: 6000K (Cool White)
• Compliance: IP67

What's Included

• Bulbs: 2x GTR Lighting 9012 CSP Mini LED Bulb
• Warranty: 2 Years

Compatibility

• BASE/FITMENT: 9012
• DOT/SAE/FVMSS108: NO (NOT STREET LEGAL IN HEADLIGHTS IN USA)
