NHK M5 Plus Bi-LED Projectors

The NHK M5 Bi-LED Projector represents NHK's flagship lighting solution, combining advanced TIR (Total Internal Reflection) lens technology with a compact all-in-one design to deliver exceptional lighting performance. Engineered for enthusiasts seeking maximum LED output, the M5 offers outstanding beam control, efficiency, and intensity without the need for external drivers or ballasts.

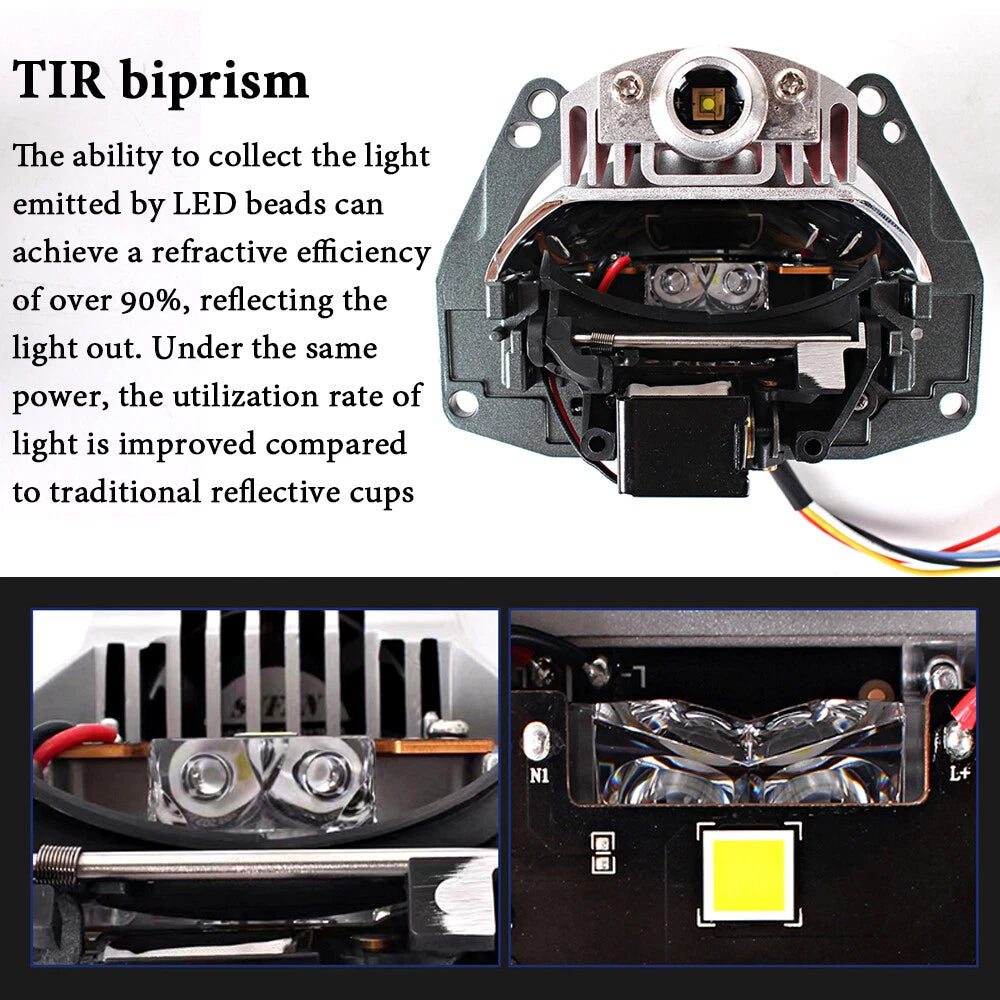

Utilizing advanced TIR optics, the NHK M5 directs more usable light onto the road while minimizing wasted output, resulting in superior beam focus and efficiency compared to conventional projector designs. As the successor to the popular V Series, the M5 features an ultra-sharp cutoff, an exceptionally concentrated hotspot, and optimized optics that maximize both low and high beam performance. For drivers seeking the highest level of LED projector intensity, the M5 stands as one of NHK's most capable offerings.

The projector produces a crisp 6000K cool white color temperature highlighted by a pronounced blue color band along the cutoff, creating an impressive color flicker effect that extends across the entire beam pattern. This combination delivers both outstanding road illumination and a premium OEM+ appearance.

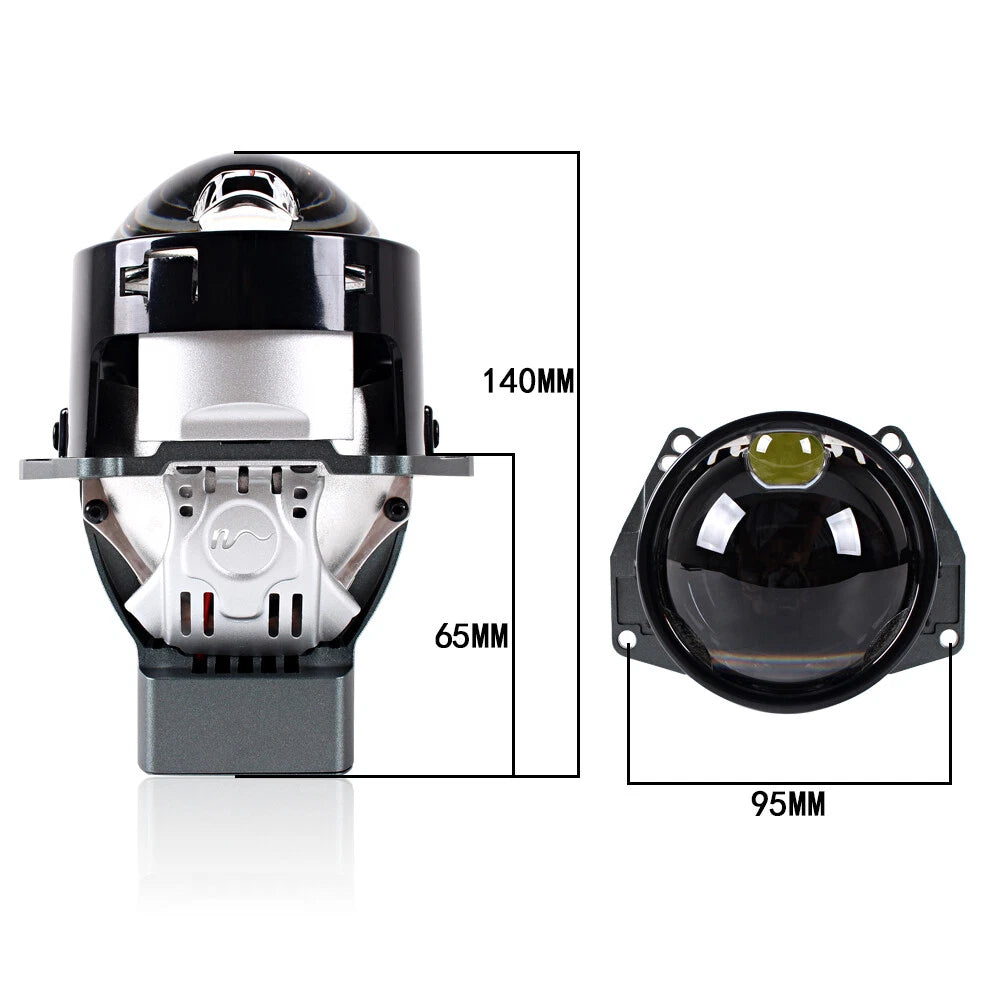

Designed with the popular G5 mounting pattern, the NHK M5 is compatible with a wide variety of retrofit brackets available for numerous vehicle applications. Although it does not utilize a threaded mounting shaft for reflector-style installations, its standardized bolt pattern makes it an excellent choice for custom projector retrofits using vehicle-specific mounting brackets.

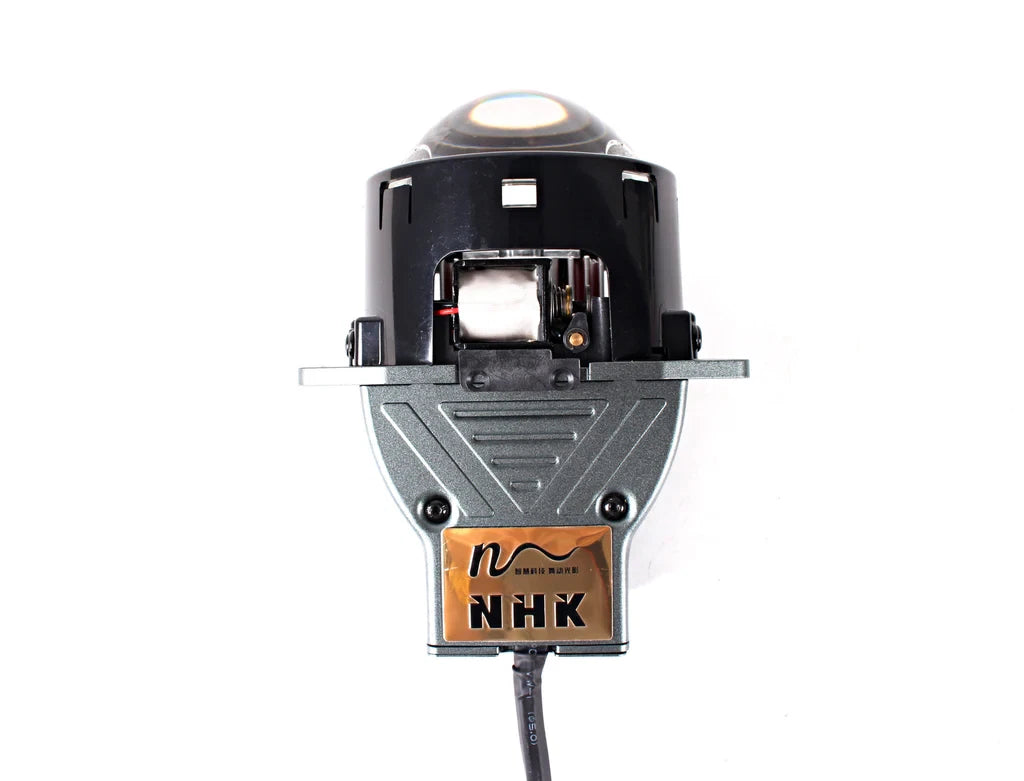

Cooling is handled by an ultra-quiet integrated rear-mounted fan that operates significantly quieter than many competing Bi-LED projectors and LED bulbs. For optimal thermal performance, adequate airflow should be maintained behind the projector, particularly when using sealed rear weather caps.

One of the M5's greatest advantages is its true all-in-one design. With the LED driver fully integrated into the projector housing, installation is greatly simplified by eliminating the need for external ballasts or separate control modules. Simply connect the low and high beam wiring, and the projector is ready for operation, making it an ideal solution for clean, hassle-free retrofit installations.

The NHK M5 includes five bare wire leads: dedicated power and ground connections for both the low and high beam circuits, along with a fifth wire that powers the auxiliary center high beam output for additional forward illumination. This fifth wire is recommended to be connected alongside the standard high beam circuit. Optional pre-installed 9005 and 9006 input connectors are available for simplified installation. Single-filament applications can connect directly to the factory low beam connector using a high beam splitter, while dual-filament applications require a MotoControl wiring harness to provide full plug-and-play functionality.

Features:

• Flagship NHK Bi-LED projector featuring advanced TIR (Total Internal Reflection) optics.
• Exceptional beam efficiency with outstanding light control and focus.
• Ultra-sharp cutoff with an intense hotspot for maximum road illumination.
• Optimized low and high beam performance for superior visibility.
• Crisp 6000K cool white output with a vibrant blue cutoff color band.
• Popular G5 bolt pattern compatible with numerous retrofit mounting brackets.
• Quiet rear-mounted cooling fan for reliable thermal management.
• Fully integrated all-in-one design with no external driver or ballast required.
• Five-wire configuration including auxiliary center high beam output.
• Compatible with both single- and dual-filament retrofit applications using the appropriate wiring solutions.

The NHK M5 Bi-LED Projector is an outstanding choice for retrofit enthusiasts and professional installers looking for maximum LED performance, exceptional beam quality, and simplified installation. Combining cutting-edge TIR optics, impressive intensity, premium color characteristics, and an integrated all-in-one design, the M5 delivers flagship-level performance for modern projector retrofit applications.
