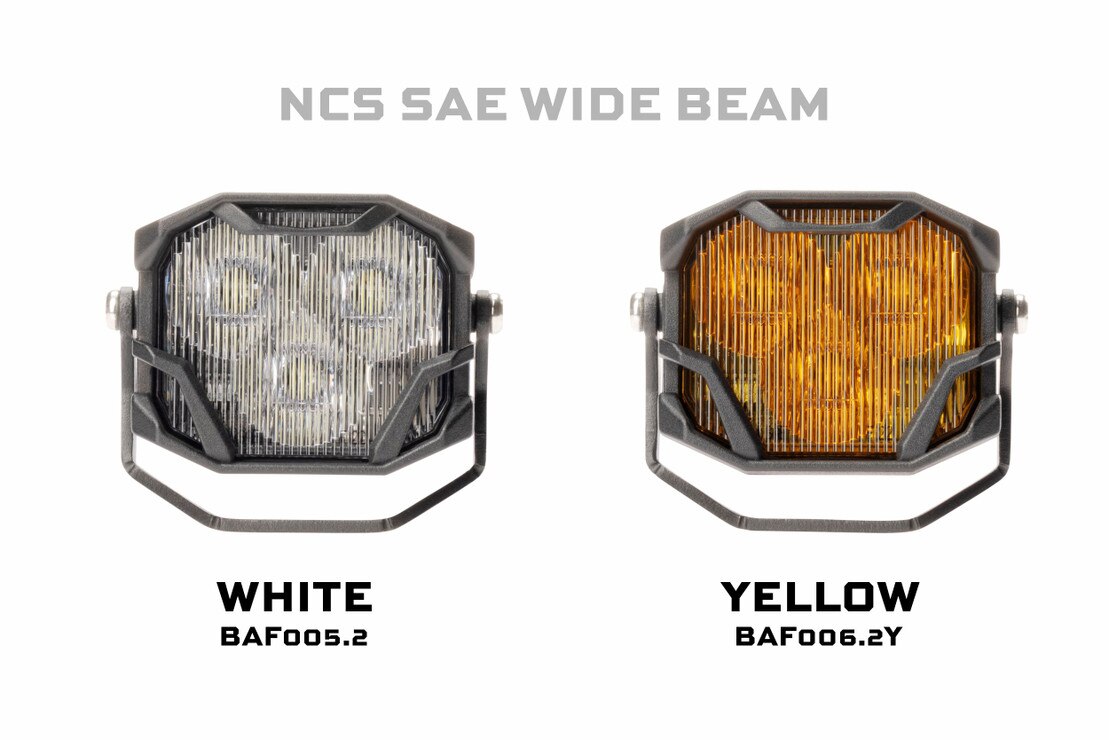

4Banger LED Pods: NCS Wide Beam

Upgrade your visibility with the Morimoto 4Banger NCS Off-Road LED Lights (BAF005.2), engineered to deliver outstanding performance both on and off the road. Designed, tested, and refined in the USA, these premium LED lights combine exceptional brightness, OEM-quality fitment, and legendary Morimoto reliability. Whether you're tackling dark backroads, off-road trails, or poor weather conditions, the 4Banger NCS provides a wide, controlled beam pattern that dramatically improves visibility while maintaining a clean factory-style appearance.

Built with advanced Nichia LED technology, the 4Banger NCS produces up to 14% more usable light while consuming 28% less power than comparable lighting systems. The beam pattern is engineered to meet SAE F photometric standards, making it street legal when installed and aimed correctly. A copper Direct Thermal Path (DTP) circuit board efficiently transfers heat away from the LEDs, while the durable IP69K-rated housing protects against water, dust, mud, and the harshest environments.

Whether you're replacing factory fog lights or building the ultimate off-road setup, the Morimoto 4Banger NCS offers premium performance, exceptional durability, and an OEM-inspired appearance that stands above the competition.

Features & Benefits

• SAE F Street Legal – Meets SAE F photometric standards for legal on-road use.

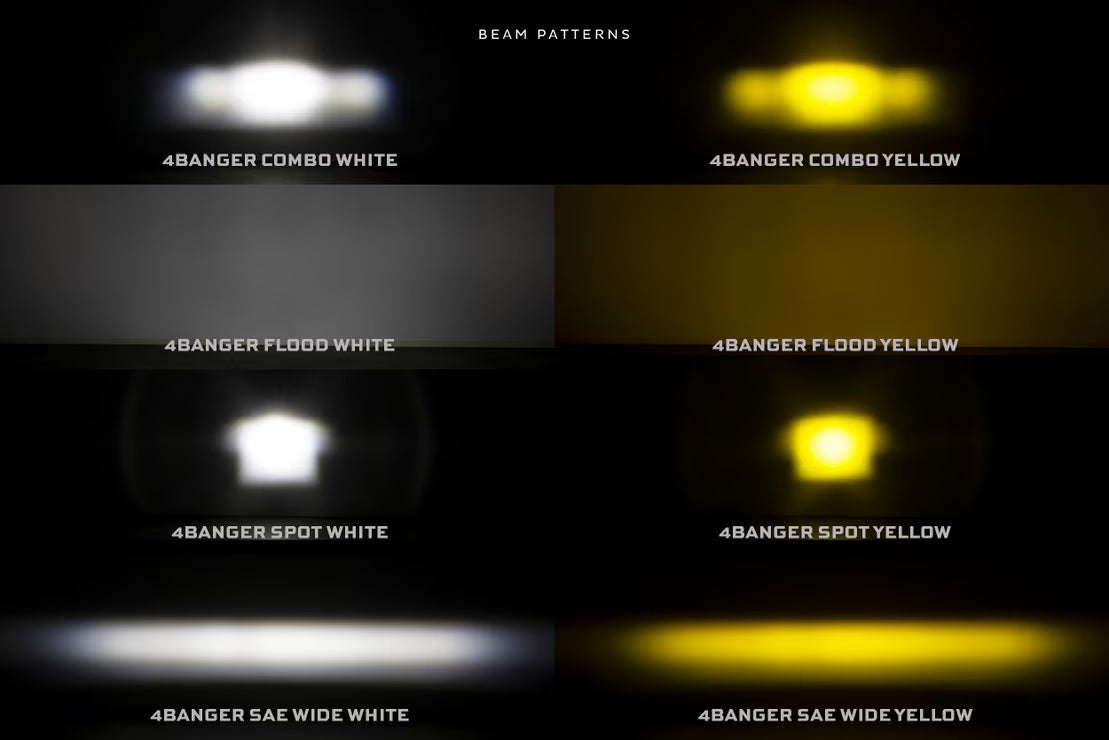

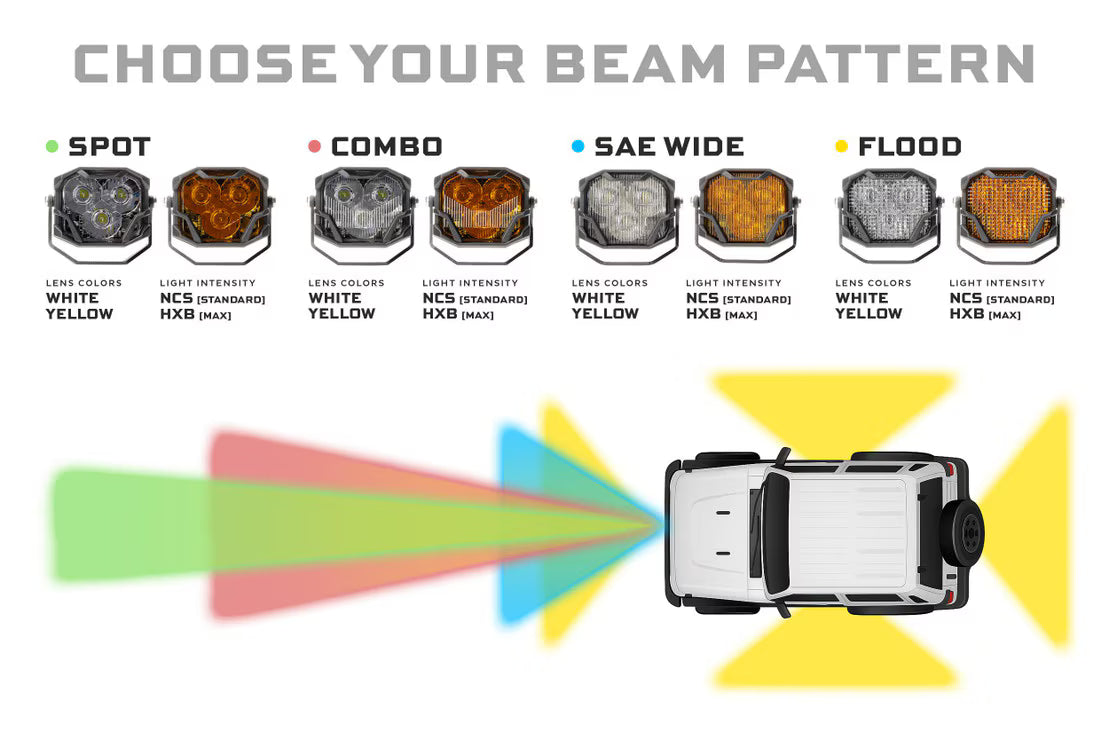

• Wide Beam Pattern – Delivers excellent peripheral illumination for improved visibility in fog, rain, snow, and off-road conditions.
• Brighter Performance – Produces up to 14% more usable light than competing systems.
• Energy Efficient – Consumes 28% less power while maintaining superior output.
• Nichia LEDs – High-performance LEDs provide exceptional brightness and long service life.
• OEM+ Design – Compact housing integrates cleanly into factory or aftermarket mounting locations.
• Copper DTP PCB – Maximizes heat dissipation for improved reliability and consistent performance.
• IP69K Rated – Fully sealed against water, dust, mud, and extreme weather.
• Premium Construction – Engineered and tested in the USA using high-quality materials.
• Multiple Mounting Options – Compatible with a wide range of Morimoto brackets and vehicle-specific mounting kits.
• Perfect Headlight Companion – Designed to complement Morimoto LED headlights with balanced, wide-angle lighting.

The Morimoto 4Banger NCS (BAF005.2) is the ideal choice for drivers looking for a premium, street-legal LED lighting solution that delivers outstanding visibility, rugged durability, and the quality Morimoto is known for.

Technical Specifications

• Note: These specifications are per pod / each!
• Intensity: 12,400 Cd (Post Warm-Up) (124lux @ 10m)
• Input: Integrated Deutsch DT 2-Pin
• Power (stabilized): 15.6w
• Current: 1.5A @ 13.5V DC
• Peak Luminosity (raw): 1,350lm
• Dimensions: 82mm W, 67mm H, 60mm D
• Hardware: M6 x 1.0 x 8mm (4Banger to U-Bracket), M10 x 1.5 x 20mm (U-Bracket base)
• Light Source: 3x Nichia NCSW131F
• Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

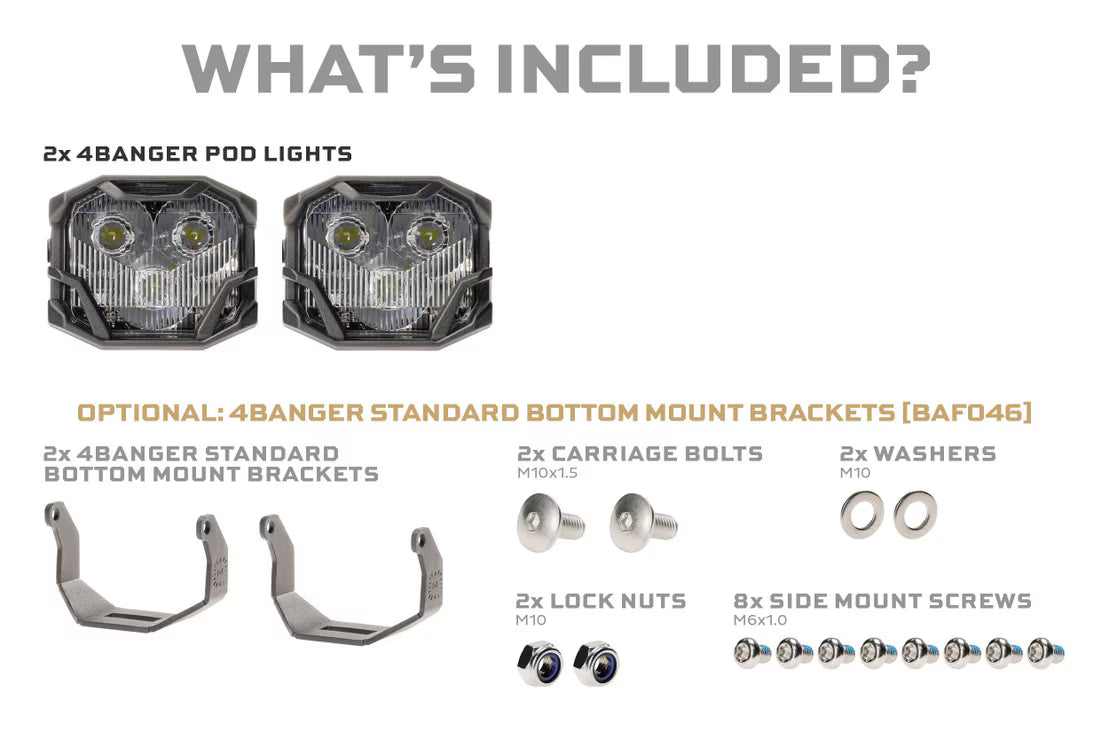

What's Included

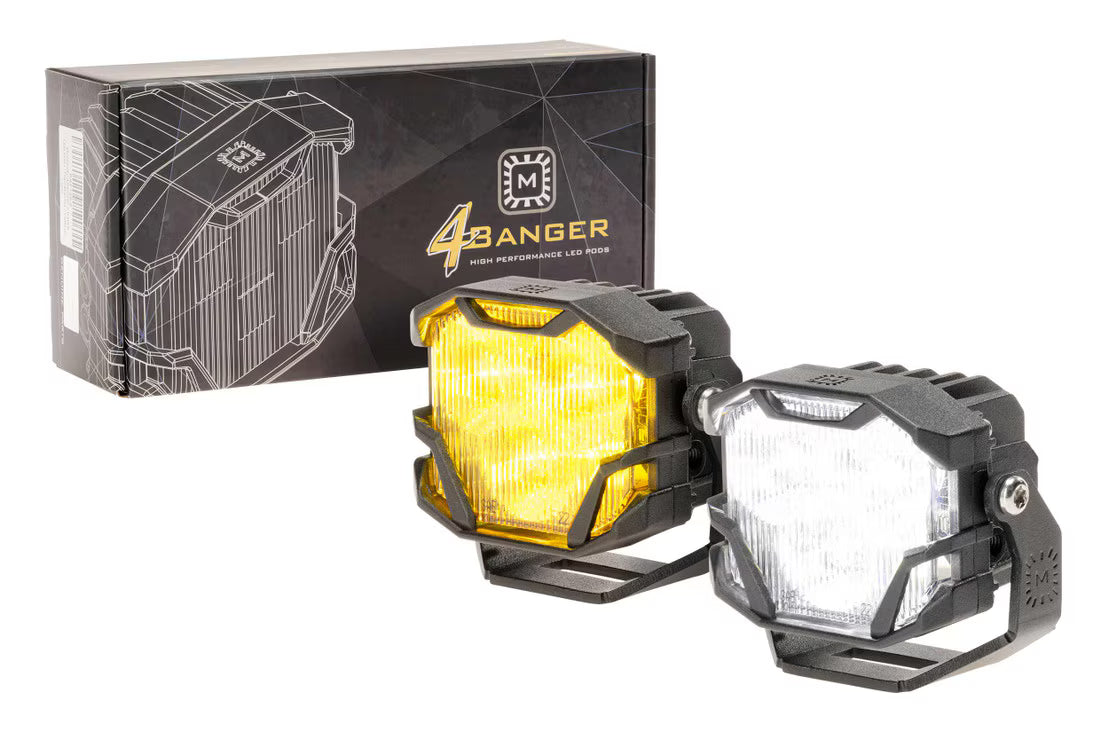

• LED Pods: 2x (One Pair) Morimoto 4Banger NCS Wide (White)
• Brackets: Not Included, Must Purchase Separately (BAF046 or BAF047)
• Hardware: Complete pack (stainless steel)
• Warranty: Lifetime Limited

Compatibility

• Universal: With Included U Brackets
