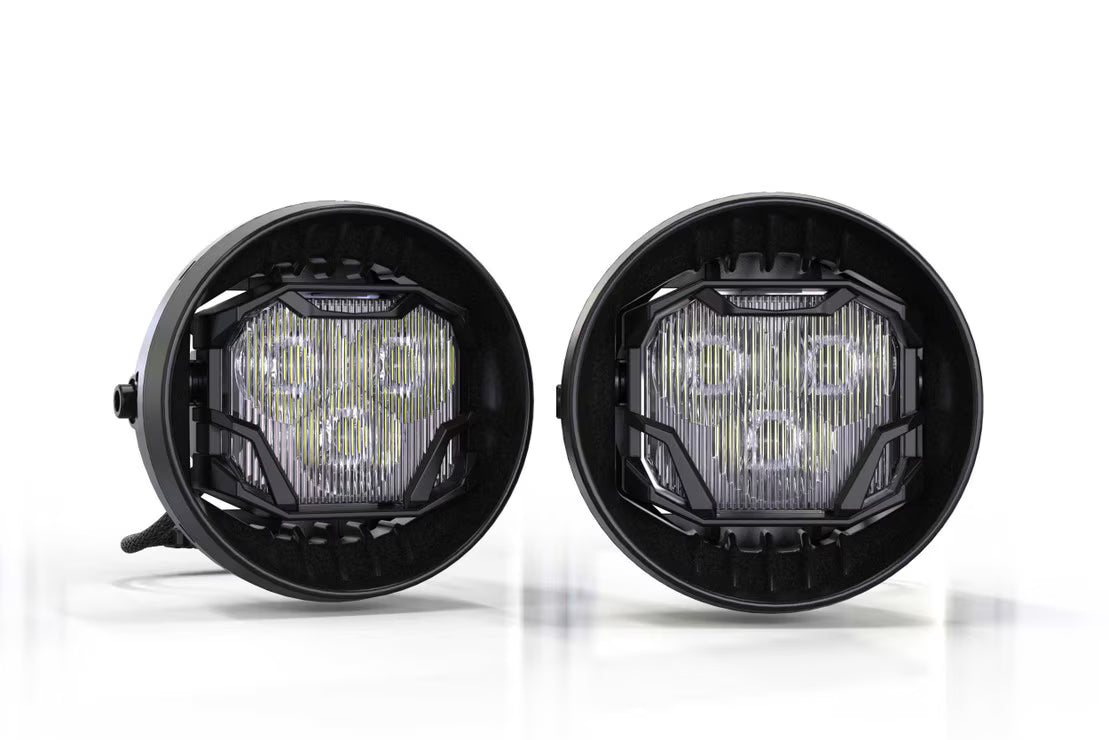

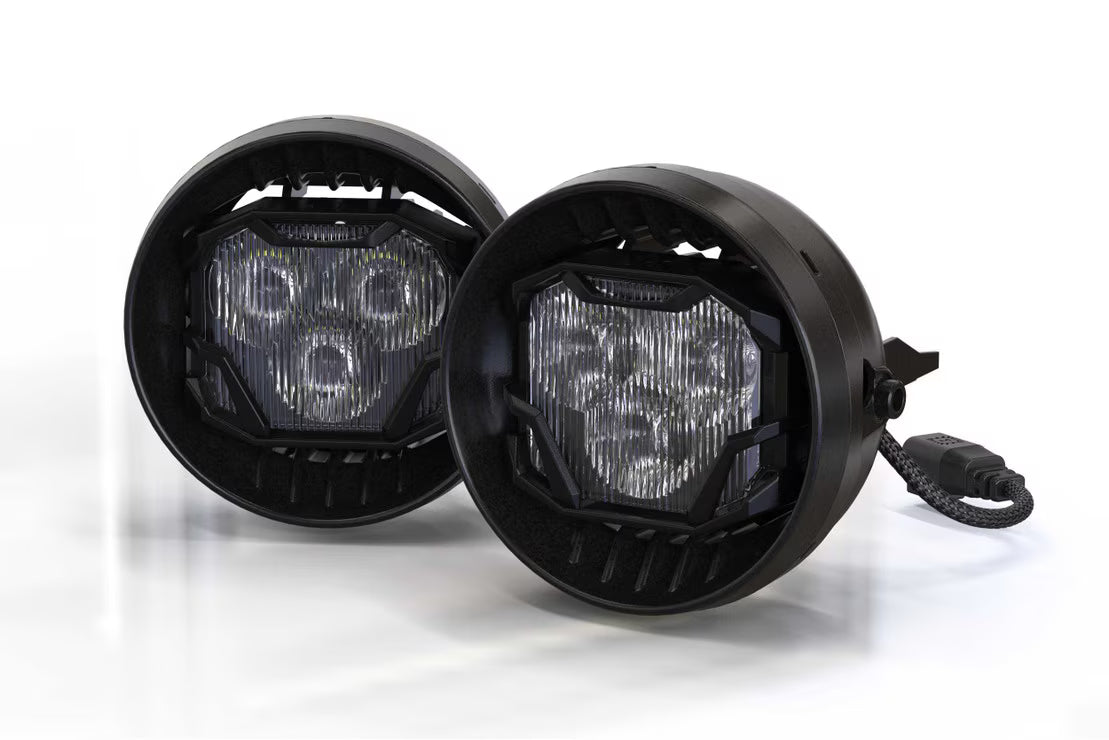

09-14 Ford F-150 4Banger LED Fog Lights

Upgrade your vehicle’s factory fog lights with the Morimoto 4Banger LED Fog Lights, engineered to deliver exceptional visibility, precise beam control, and OEM-quality fitment. Available in HXB and NCS configurations, the 4Banger platform offers serious lighting performance for both everyday driving and demanding weather conditions.

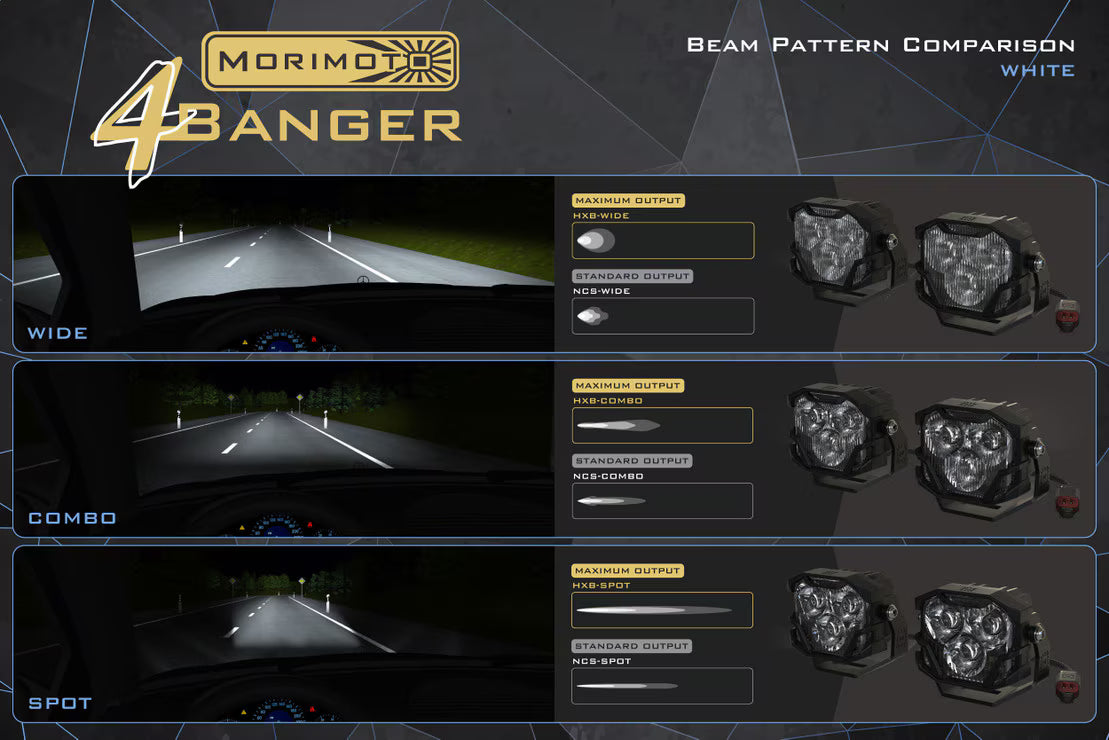

HXB Wide Beam – Maximum Output

The HXB Wide Beam is powered by premium Osram HX Boost LEDs and delivers an incredibly wide, powerful beam pattern while remaining SAE compliant for on-road fog light use.

Producing up to 80% more intensity than competing SAE-compliant fog lights, the HXB sets the benchmark for drivers who want maximum usable output without sacrificing beam control.

NCS Wide Beam – Efficient & Controlled

The NCS Wide Beam uses high-performance Nichia LEDs and is engineered for exceptional vertical gradient control. The result is strong illumination across the road with minimal glare for oncoming traffic.

Compared with its nearest competitor, the NCS delivers approximately 14% more brightness while consuming 28% less power, making it an excellent choice for efficient, street-friendly performance.

Engineered for a Perfect Fit

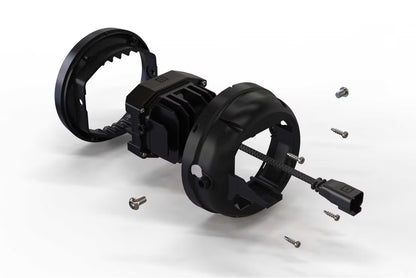

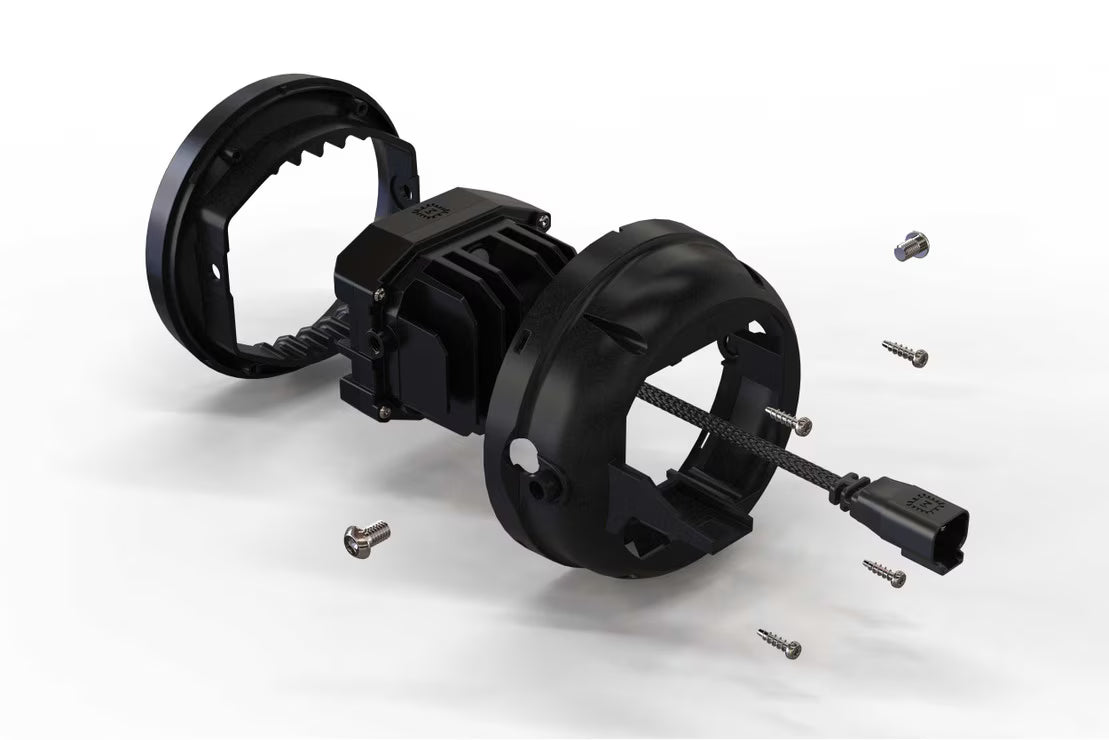

Morimoto designs each 4Banger fog light system for straightforward installation using vehicle-specific mounting brackets. High-quality wiring adapters connect directly to the factory fog light harness, minimizing modifications and simplifying installation.

The adjustable mounting system also allows precise aiming so you can position the beam exactly where it belongs.

Built for Reliable Performance

An integrated air-cooling system helps regulate operating temperatures and maintain consistent light output over time. The rugged construction is designed to withstand demanding road, trail, and weather conditions.

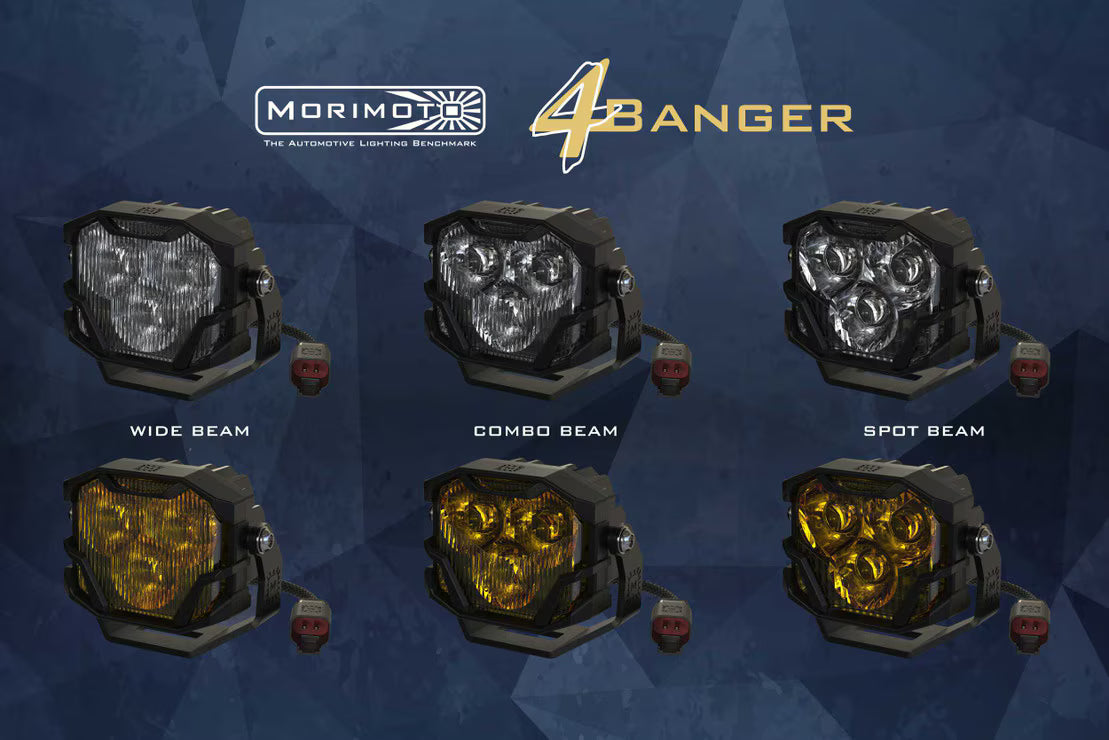

White or Yellow Output

Choose the output that best matches your driving conditions:

• White: Excellent all-around visibility with a clean, modern appearance.
• Yellow: Optimized for challenging conditions such as fog, rain, snow, and dust.

FEATURES & BENEFITS

• HXB Wide Beam: Osram HX Boost LEDs for maximum intensity
• NCS Wide Beam: Nichia LEDs for efficient, controlled illumination
• SAE-Compliant Beam Pattern: Designed for legal on-road fog light performance
• Exceptional Visibility: Wide, powerful illumination with controlled glare
• Vehicle-Specific Fitment: Engineered brackets for a clean OEM+ installation
• Plug-and-Play Wiring: Connects to the factory fog light harness
• Fully Adjustable: Precise beam aiming for optimal performance
• Advanced Cooling: Maintains consistent output and LED longevity
• White & Yellow Options: Select the output best suited to your driving conditions
• Rugged Construction: Built to perform in demanding weather and road conditions

Upgrade to Morimoto 4Banger Fog Lights and experience powerful, precisely controlled illumination with the fit, finish, and performance Morimoto is known for.

Technical Specifications

• Intensity: 14,700 Cd (@20 Min. / 21C Ambient) (147lux @ 10m)

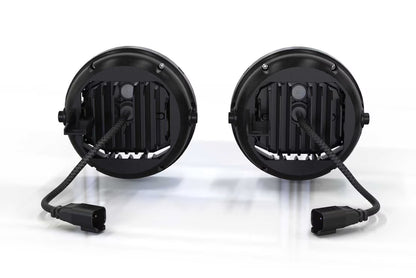

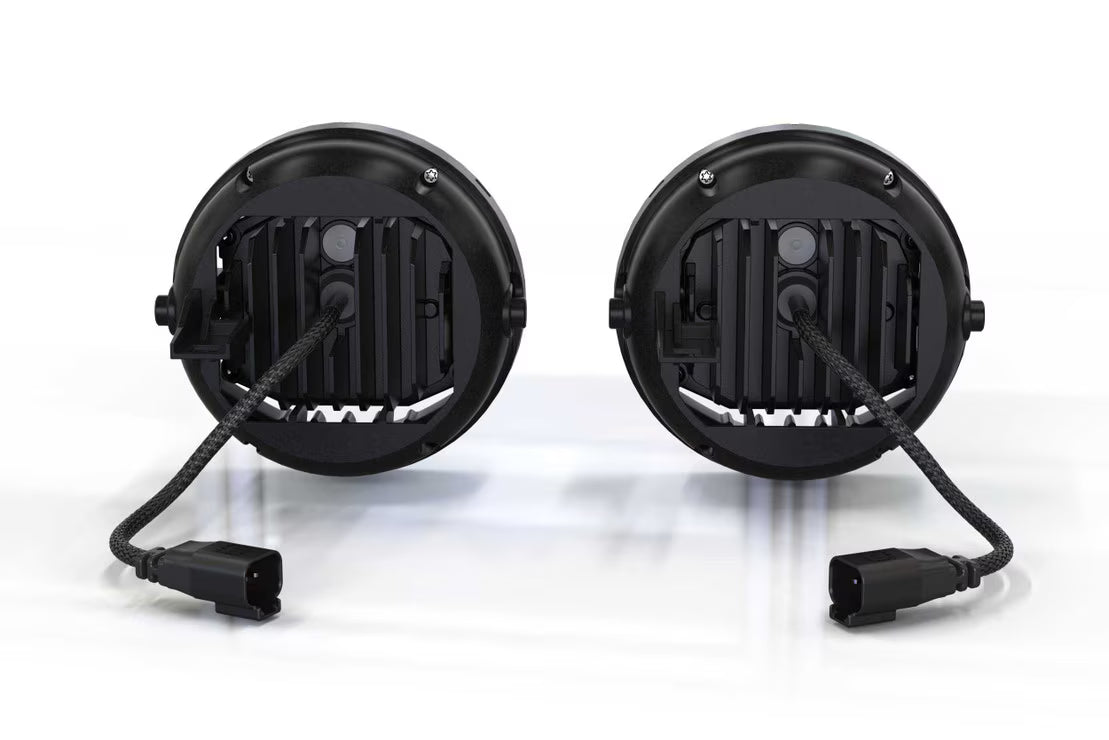

• Input: Proprietary Overmolded Deutsch DT 2-Pin w/ Pigtail
• Input Voltage: 9-18V DC
• Power: 42w
• Current: 3.2A @ 13.2V DC
• Dimensions: 82mm W, 67mm H, 60mm D
• Color: 2700K
• Light Source: 3x Osram HX Boost (5700K)

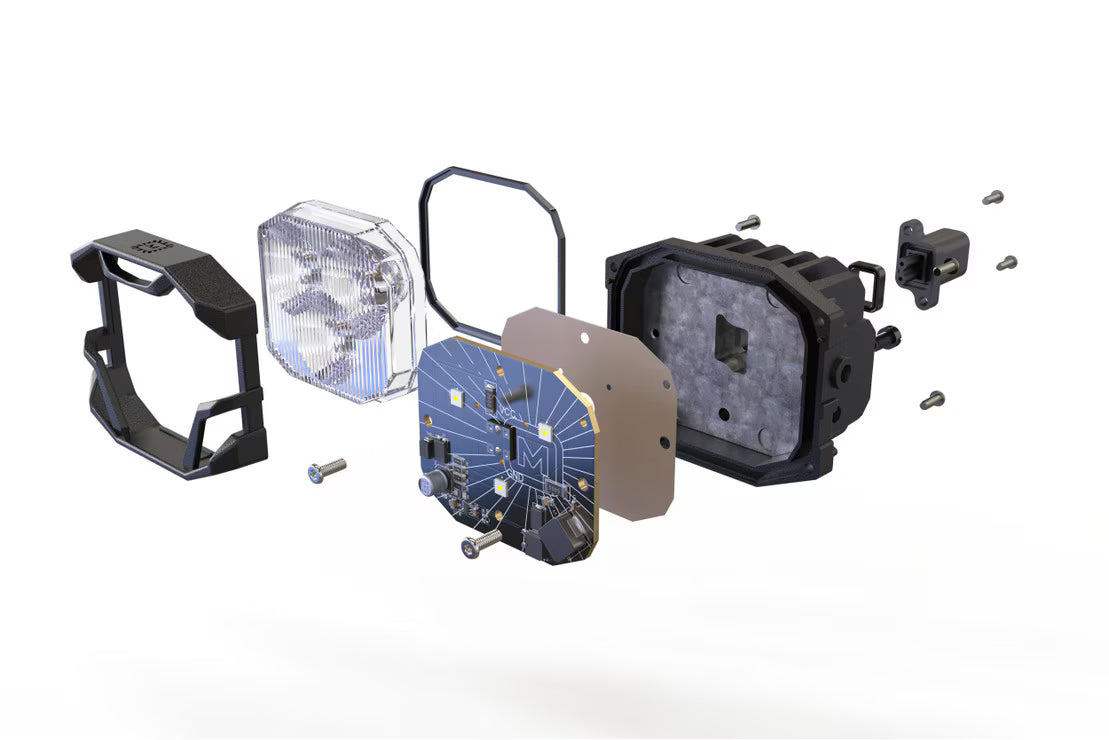

• Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
• IP Rating: IP68K (Dust / High Pressure Water Resistant)

What's Included

• Fog Light Brackets: 2x (One Pair) Morimoto 4Banger (BAF020 / Ford Trucks)
• LED Pods: 2x (One Pair) Morimoto 4Banger (HXB Yellow SAE Wide Beam - BAF012)
• Hardware: Complete Pack (Stainless Steel)
• Wiring: Plug N Play Connection Kit
• Warranty: Limited Lifetime

Compatibility

• FORD F-150: 2004-2006 (with Round fogs), 2007-2010 (Req. 1x OEM BL3Z15266B Mounting Bracket), 2011-2014
• REPLACES FORD PART #: AL1Z-15200-BCP, BL3Z-15200-ACP
• Note: Vehicle must have OEM Halogen Fog lights
• 4Banger COMPLIANCE: Wide beam photometrics are SAE F 20 compliant

Installation Guide

Product Video
