Morimoto

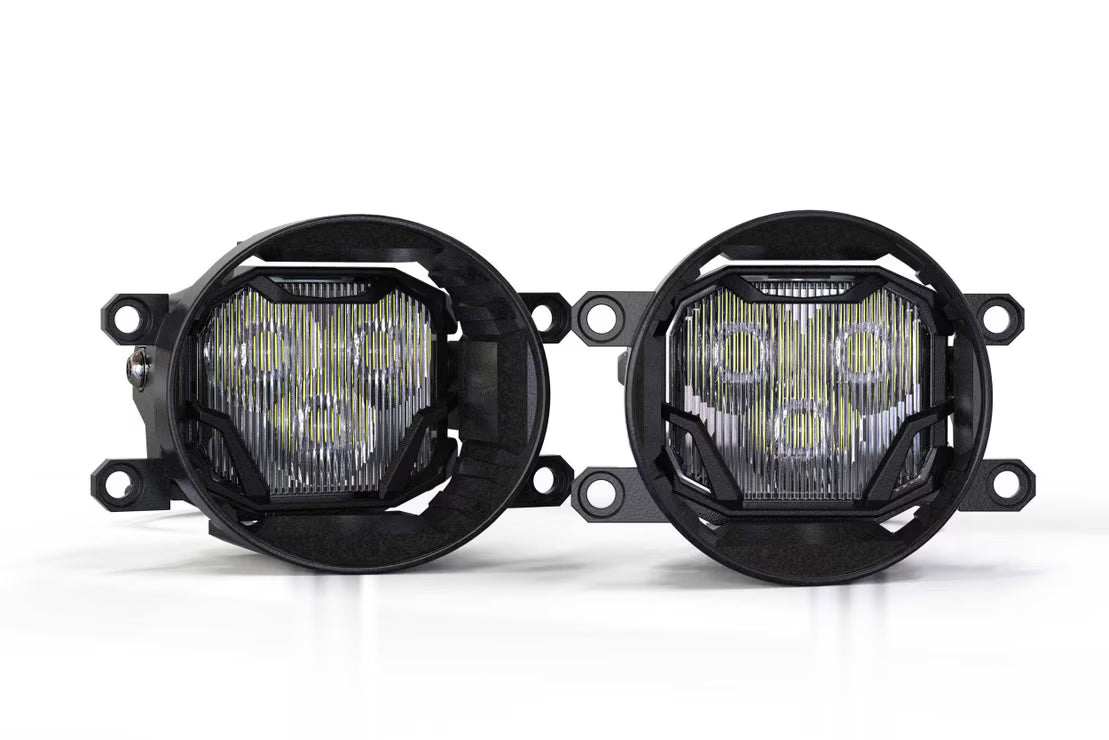

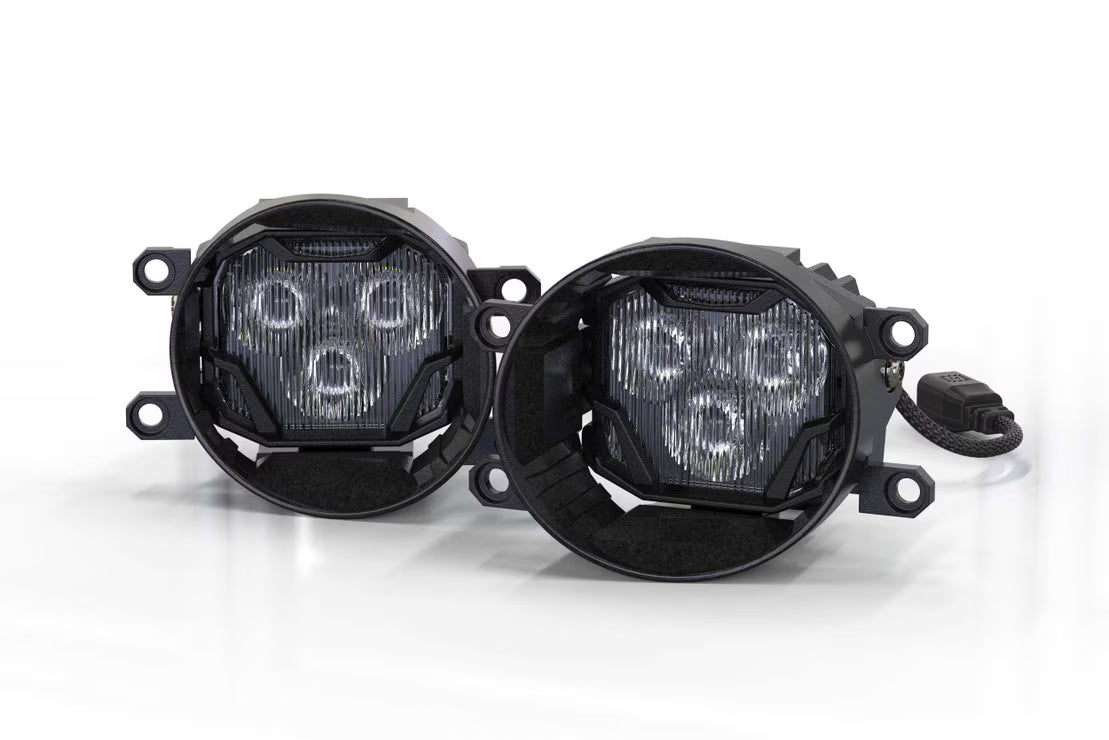

12-15 Toyota Tacoma 4Banger LED Fog Lights
12-15 Toyota Tacoma 4Banger LED Fog Lights
Couldn't load pickup availability
Upgrade your vehicle with the Morimoto 4Banger SAE-Compliant LED Fog Lights, designed to deliver powerful illumination, precise beam control, and dependable performance when driving conditions become challenging.

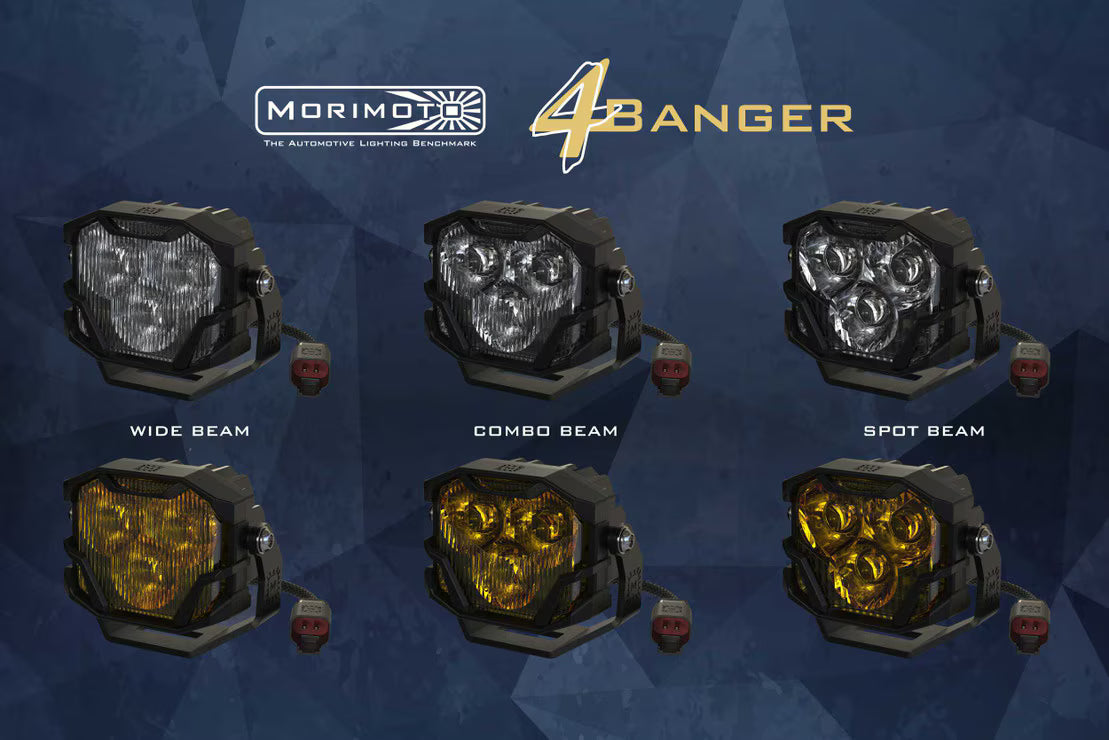

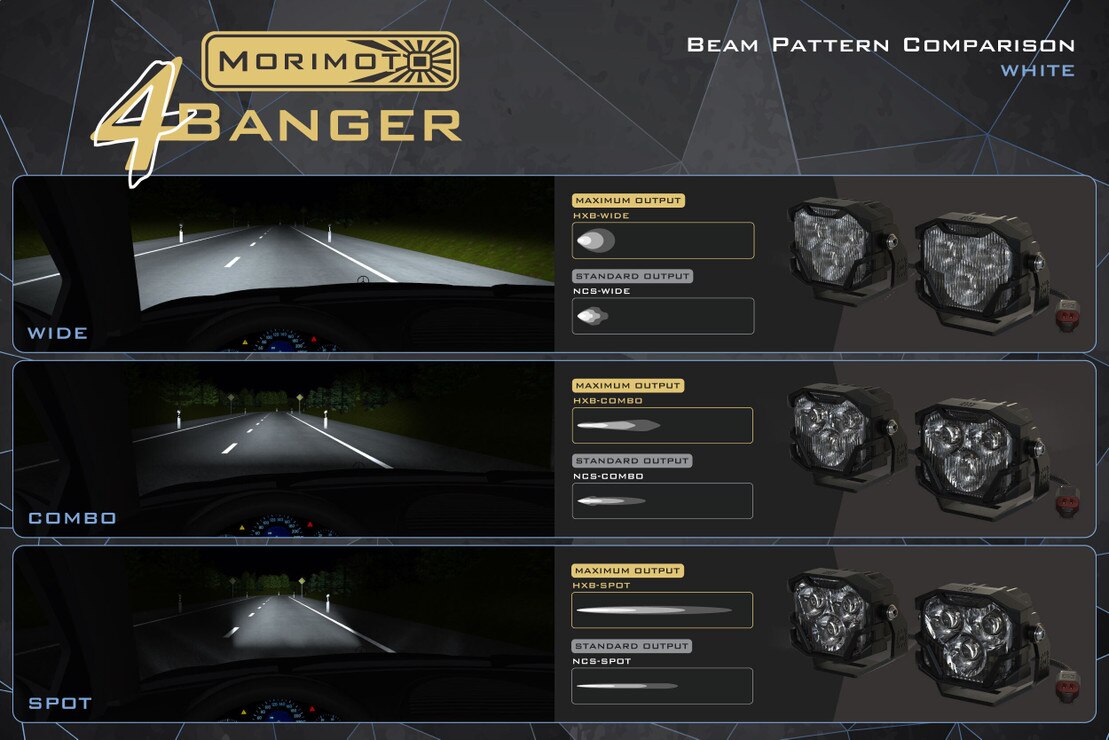

Available with either the NCS Wide Beam or HXB Wide Beam, the 4Banger platform lets you choose between outstanding efficiency and maximum intensity. Combined with vehicle-specific mounting hardware and an OEM+ appearance, these fog lights offer a premium upgrade for both performance and style.

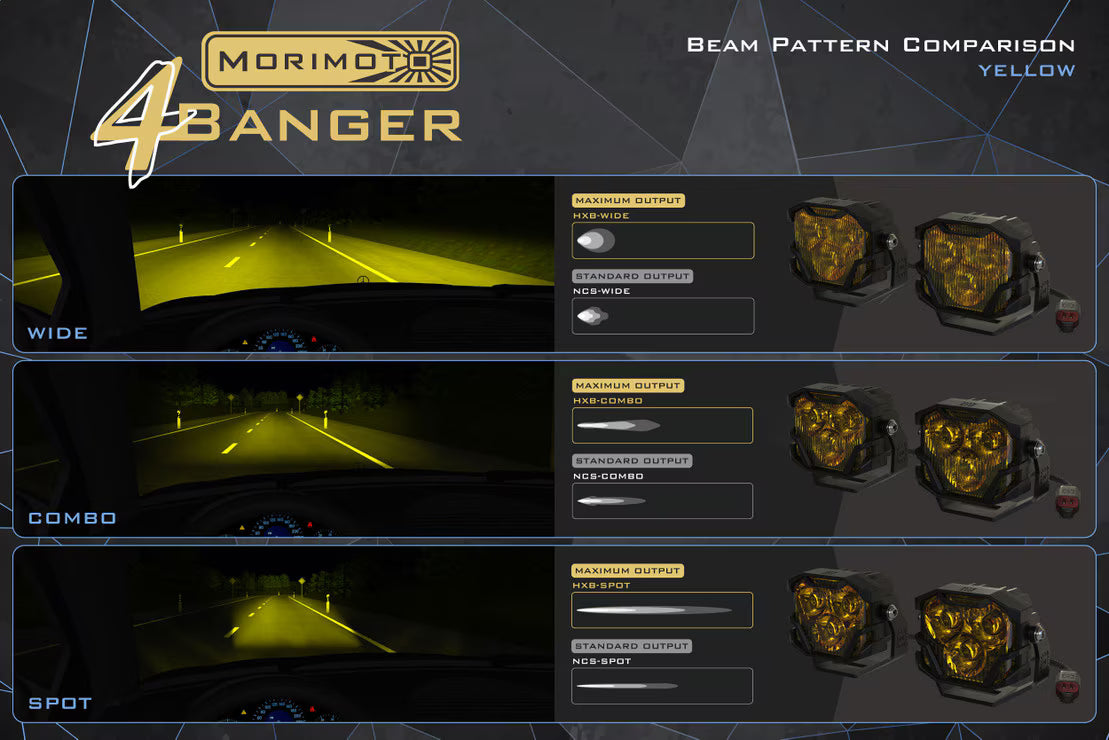

HXB Wide Beam – Maximum Intensity
The 4Banger HXB Wide Beam is engineered for drivers who demand maximum light output. Powered by premium Osram HX Boost LEDs, the HXB configuration delivers approximately 80% more intensity than competing SAE-compliant fog lights.
Its advanced optical system produces a powerful yet controlled beam pattern, providing exceptional visibility while maintaining the precision required for proper on-road fog-light performance.
NCS Wide Beam – Efficient & Controlled
The 4Banger NCS Wide Beam delivers an impressive combination of brightness, efficiency, and beam control.
Producing approximately 14% more brightness while consuming 28% less power than competing solutions, the NCS configuration maximizes usable illumination without unnecessary electrical demand.
Its carefully engineered optics also provide excellent vertical gradient control, helping keep the light focused where it belongs.
FEATURES & BENEFITS
SAE-Compliant Performance: Engineered to meet SAE fog-light requirements for controlled, effective, and street-legal on-road illumination.
HXB High-Output Option: Osram HX Boost LEDs deliver approximately 80% more intensity than competing SAE-compliant fog lights.
NCS Efficient Performance: Produces approximately 14% more brightness while consuming 28% less power than competing solutions.

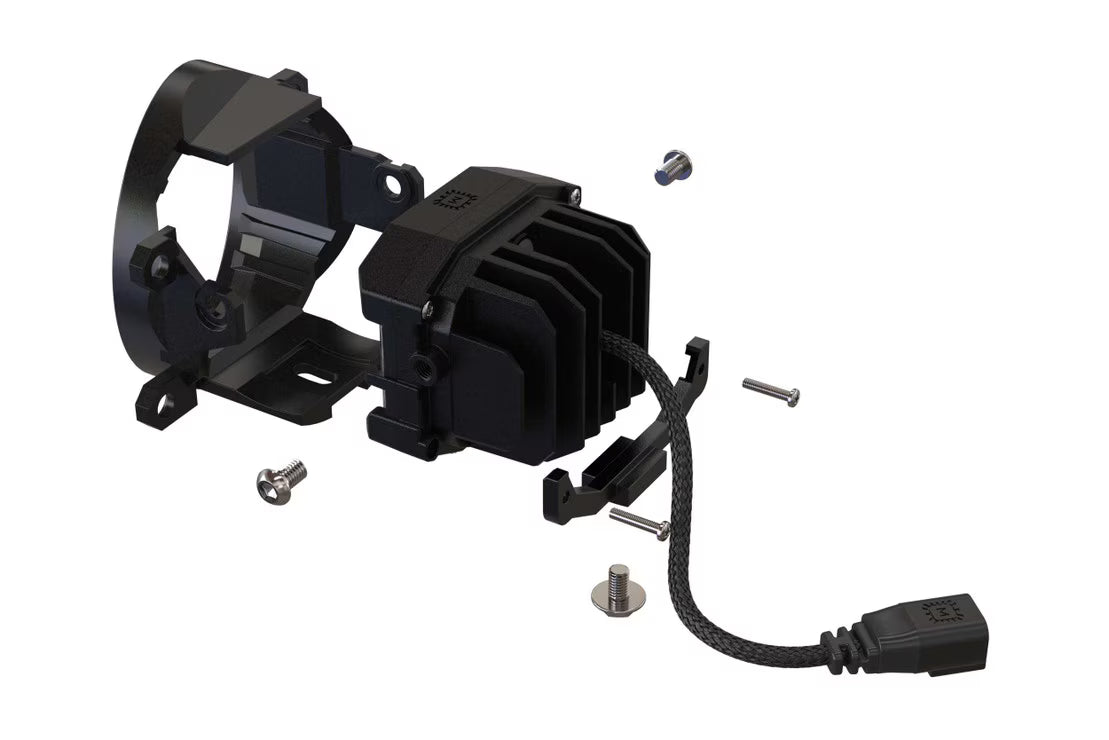

Bolt-On Installation: Vehicle-specific mounting hardware allows for straightforward installation without unnecessary modifications.
Fully Adjustable Brackets: Provides precise control over beam positioning for proper aiming and maximum usable illumination.
Advanced Air Cooling: The air-cooled design helps eliminate heat soak, improving lumen maintenance and extending LED operating life.
White Output Option: Provides crisp, powerful illumination for excellent all-around visibility and a modern appearance.
Yellow Output Option: Designed to improve visual contrast and visibility in adverse conditions such as fog, rain, and snow.
All-Weather Performance: Built to deliver dependable illumination through demanding weather and driving environments.
OEM+ Integration: Precision-engineered components provide a clean installation that complements your vehicle’s factory appearance.
Upgrade to the Morimoto 4Banger Fog Lights and experience an outstanding combination of brightness, efficiency, beam control, durability, and all-weather visibility.
Technical Specifications
- Intensity: 14,700 Cd (@20 Min. / 21C Ambient) (147lux @ 10m)
- Input: Proprietary Overmolded Deutsch DT 2-Pin w/ Pigtail
- Input Voltage: 9-18V DC
- Power: 42w
- Current: 3.2A @ 13.2V DC
- Dimensions: 82mm W, 67mm H, 60mm D
- Color: 2700K
- Light Source: 3x Osram HX Boost (5700K)
- Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
- IP Rating: IP68K (Dust / High Pressure Water Resistant)
What's Included
- Fog Light Brackets: 2x (One Pair) Morimoto 4Banger (BAF014 / Type T Style)
- LED Pods: 2x (One Pair) Morimoto 4Banger (HXB Yellow SAE Wide Beam - BAF012)
- Hardware: Complete Pack (Stainless Steel)
- Wiring: Plug N Play Connection Kit
- Warranty: Limited Lifetime
Compatibility
- TOYOTA TACOMA: 2012-2021 (w/o OEM LED Fogs)
- REPLACES TOYOTA PART #: 81220-06071, 81210-08020
- Note: Vehicle must have OEM Halogen Fog lights
- 4Banger COMPLIANCE: Wide beam photometrics are SAE F 20 compliant
