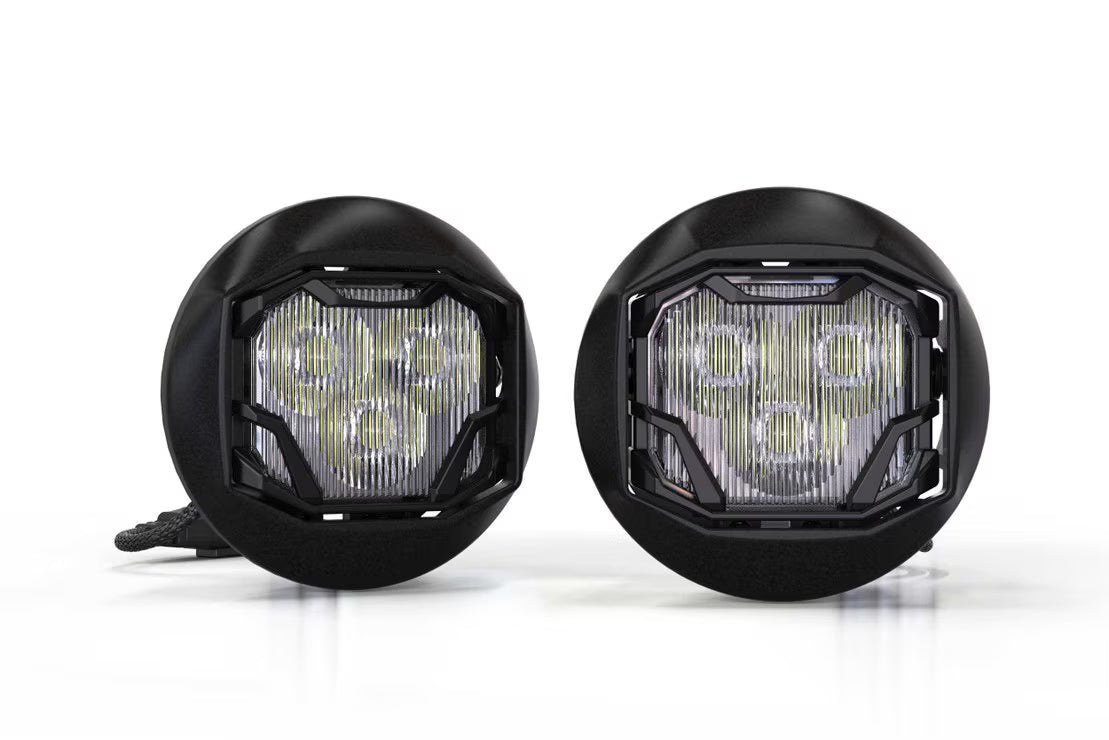

07-14 GMC Yukon 4Banger LED Fog Lights
07-14 GMC Yukon 4Banger LED Fog Lights
Couldn't load pickup availability
Upgrade your vehicle with the Morimoto 4Banger LED Fog Lights, engineered to deliver exceptional visibility, precise beam control, and street-legal performance. Available in HXB Wide Beam and NCS Wide Beam configurations, the 4Banger system provides serious lighting performance without sacrificing safety or fitment.
HXB Wide Beam – Maximum Output
The 4Banger HXB Wide Beam sets a new benchmark for SAE fog light intensity. Producing up to 80% more intensity than competing SAE fog lights, the HXB version delivers outstanding width, distance, and overall road coverage.
Its performance has been photometrically verified by Calcoast ITL for SAE compliance, giving you powerful illumination while maintaining a controlled, road-friendly beam pattern. It's an excellent choice for drivers looking for maximum performance both on and off the road.
NCS Wide Beam – Superior Beam Control
The 4Banger NCS Wide Beam focuses on efficiency and precise light distribution. Its advanced optics provide excellent vertical gradient control, meeting SAE F photometric standards for use as an on-road fog light.
The wide beam delivers strong illumination across the road and shoulders while keeping glare away from oncoming drivers. Even better, the NCS version achieves impressive performance while consuming approximately 28% less power than competing fog lights.
Easy, Vehicle-Specific Installation

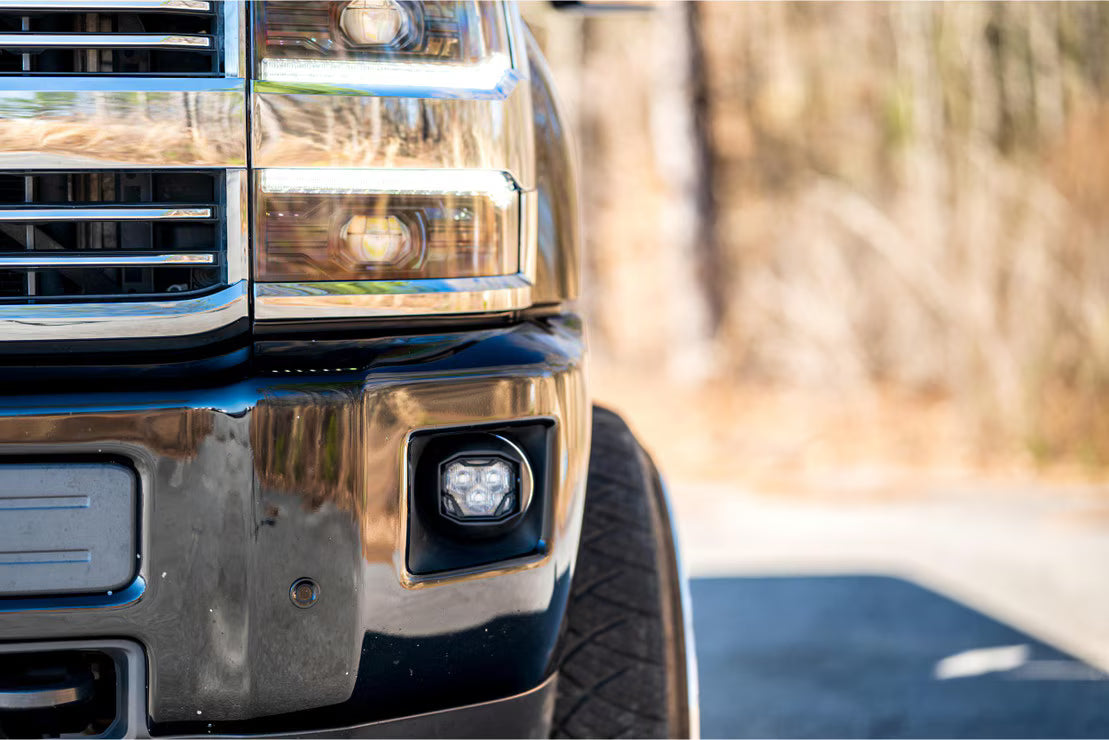

Morimoto designed the 4Banger Fog Light system for straightforward installation with no permanent vehicle modifications required. Vehicle-specific mounting hardware allows the pods to integrate cleanly into the factory fog light locations for a professional, OEM+ appearance.
Features & Benefits
- SAE Compliant: Engineered for street-legal fog light performance
- HXB Wide Beam: Up to 80% more intensity than competing SAE fog lights
- NCS Wide Beam: Excellent vertical gradient and glare control
- Efficient Performance: NCS consumes approximately 28% less power than competitors
- Wide Road Coverage: Excellent visibility across the road and shoulders
- Controlled Beam Pattern: Keeps powerful illumination where it's needed
- All-Weather Visibility: Ideal for fog, rain, snow, and nighttime driving
- Bolt-On Installation: No permanent vehicle modifications required
- Vehicle-Specific Fitment: Designed for a clean OEM+ installation
- Complete Hardware: Includes the components necessary for installation
Upgrade to the Morimoto 4Banger LED Fog Lights and experience premium visibility, precise optics, and powerful SAE-compliant performance in virtually any driving condition.
Technical Specifications
- Intensity: 14,700 Cd (Post Warm-Up) (147lux @ 10m)

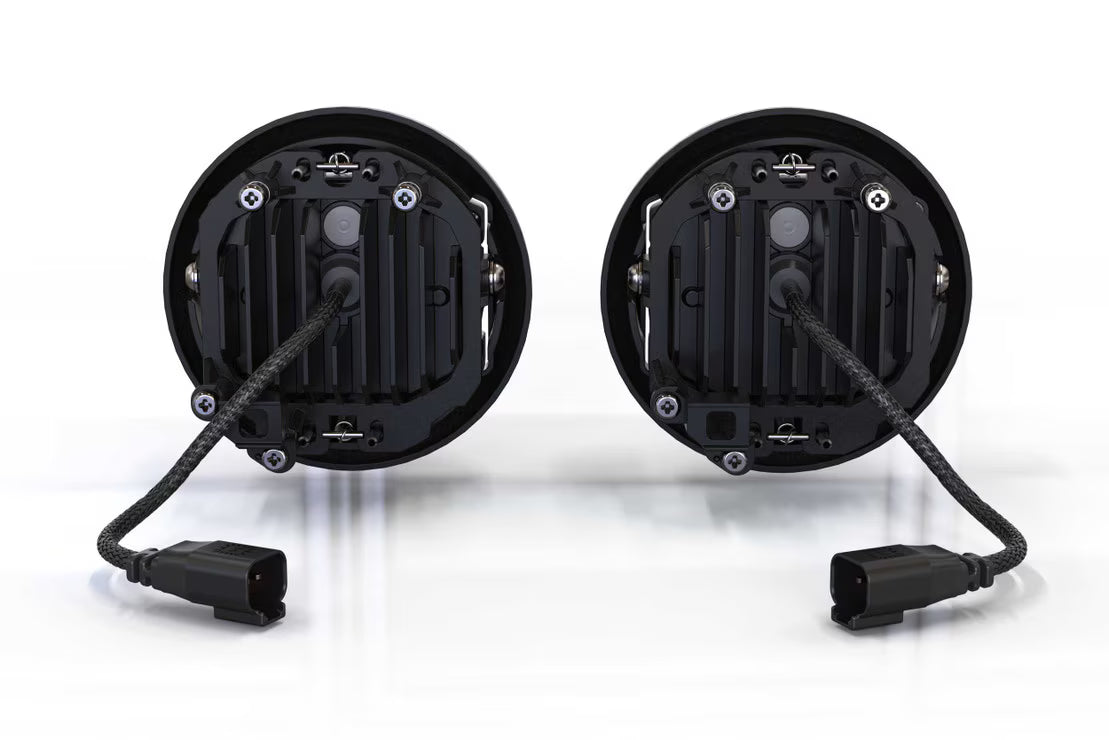

- Input: Proprietary Overmolded Deutsch DT 2-Pin w/ Pigtail
- Input Voltage: 9-18V DC
- Power: 42w
- Current: 3.2A @ 13.2V DC
- Dimensions: 82mm W, 67mm H, 60mm D
- Color: 5600K
- Light Source: 3x Osram HX Boost (5700K)

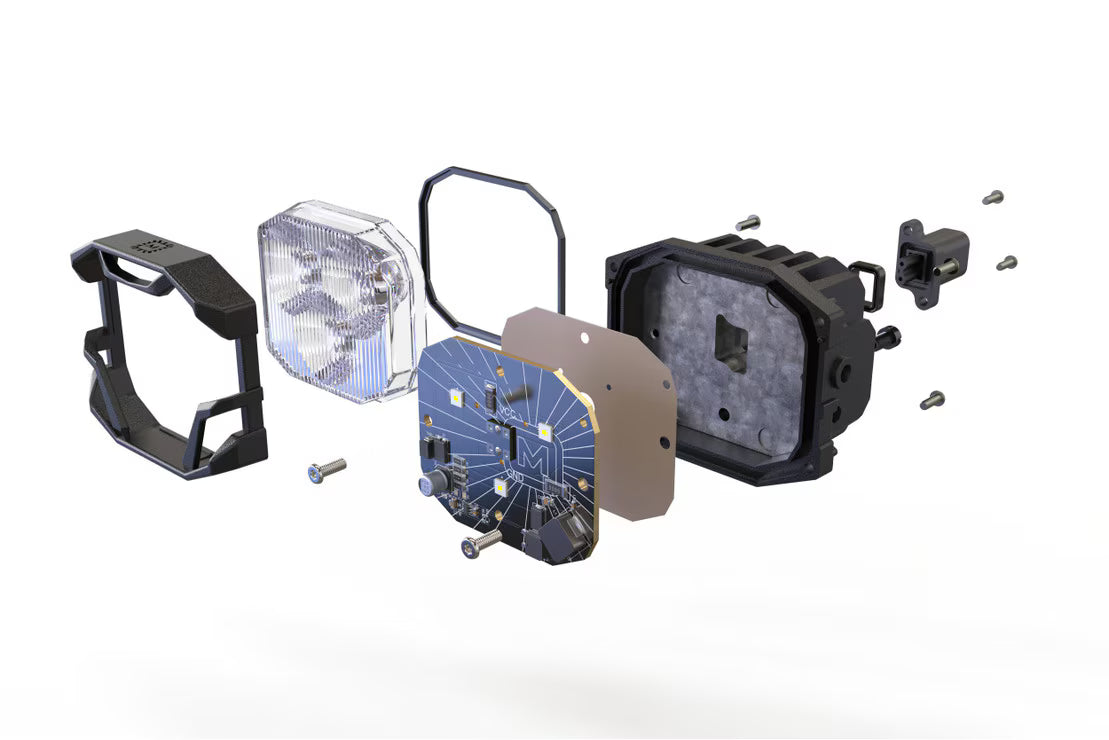

- Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
- IP Rating: IP68K (Dust / High Pressure Water Resistant)
What's Included

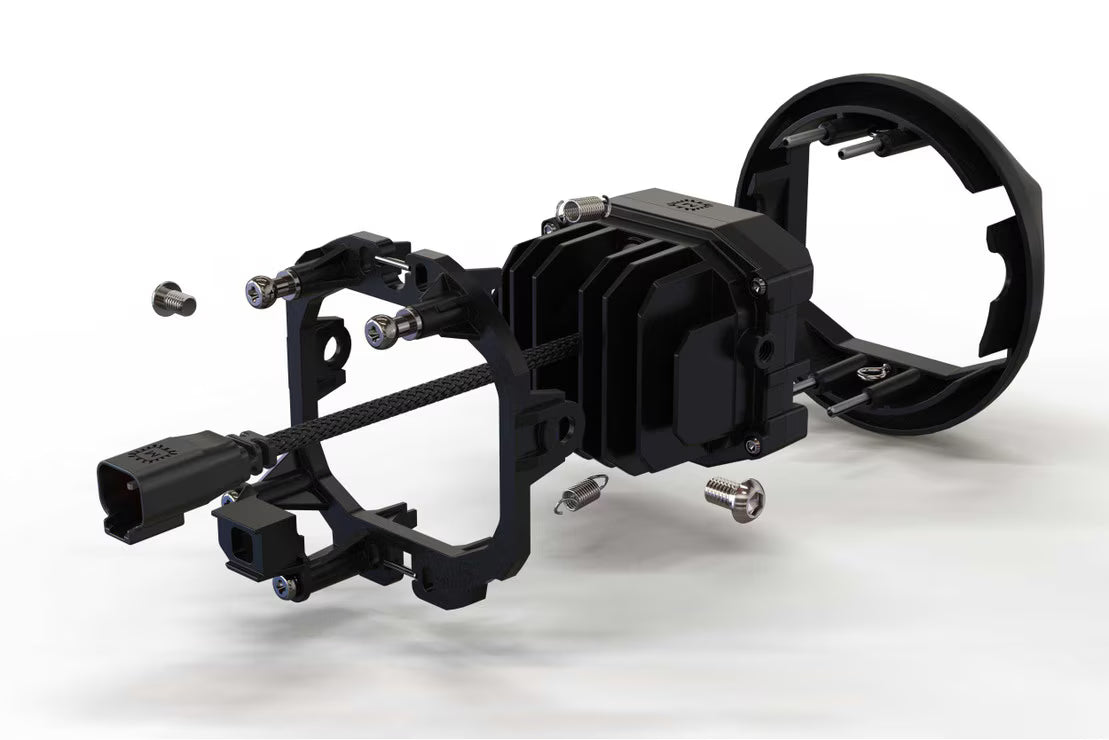

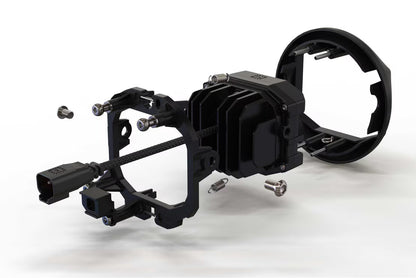

- Fog Light Brackets: 2x (One Pair) Morimoto 4Banger (BAF015)
- LED Pods: 2x (One Pair) Morimoto 4Banger (NCS White Spot Beam - BAF001)
- Hardware: Complete Pack (Stainless Steel)
- Wiring: Plug N Play Connection Kit
- Warranty: Limited Lifetime
Compatibility
- GMC YUKON: 2007-2014
- REPLACES GM PART #: 25866496
- Note: Vehicle must have OEM Halogen Fog lights
- 4Banger COMPLIANCE: Wide beam photometrics are SAE F 20 compliant
