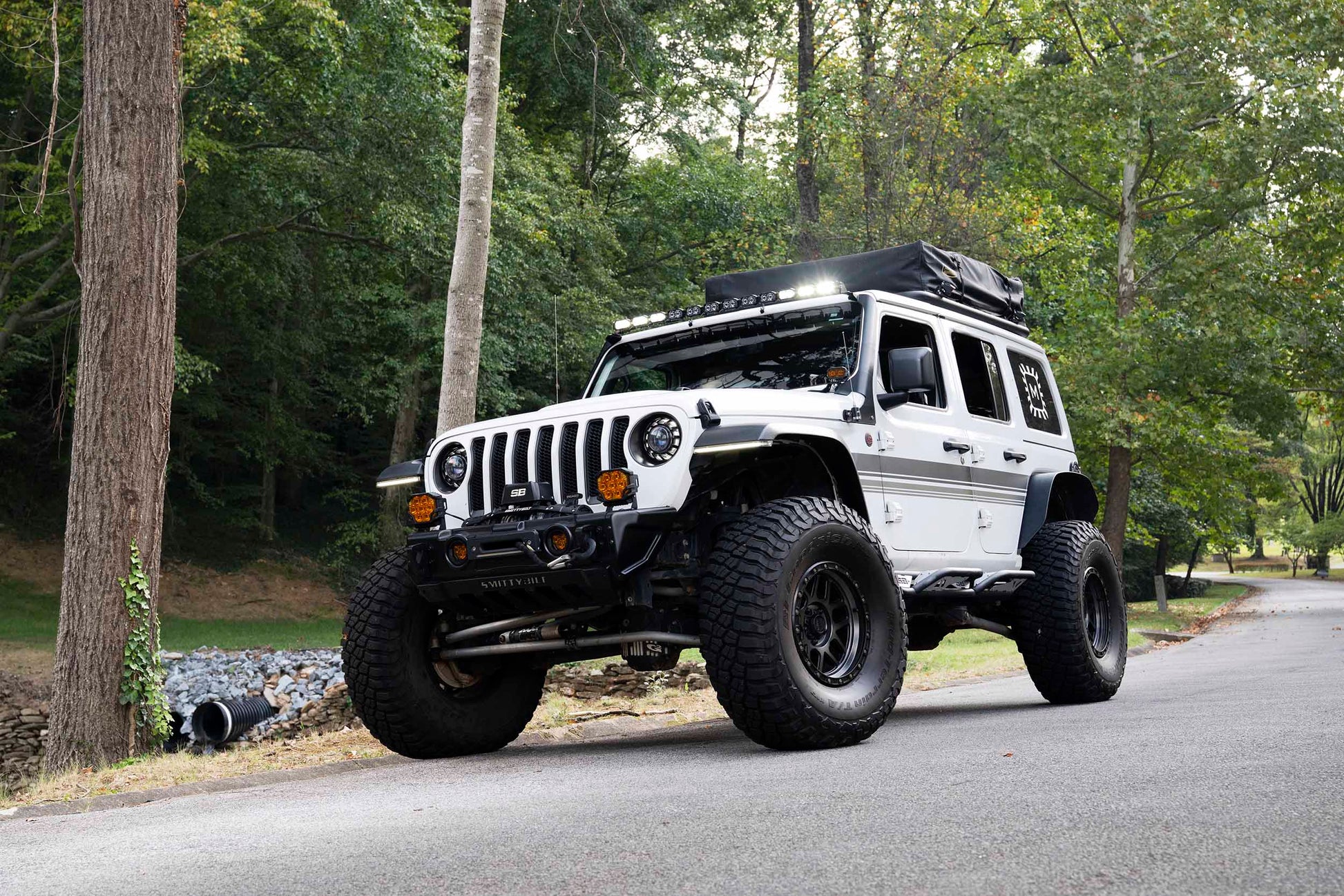

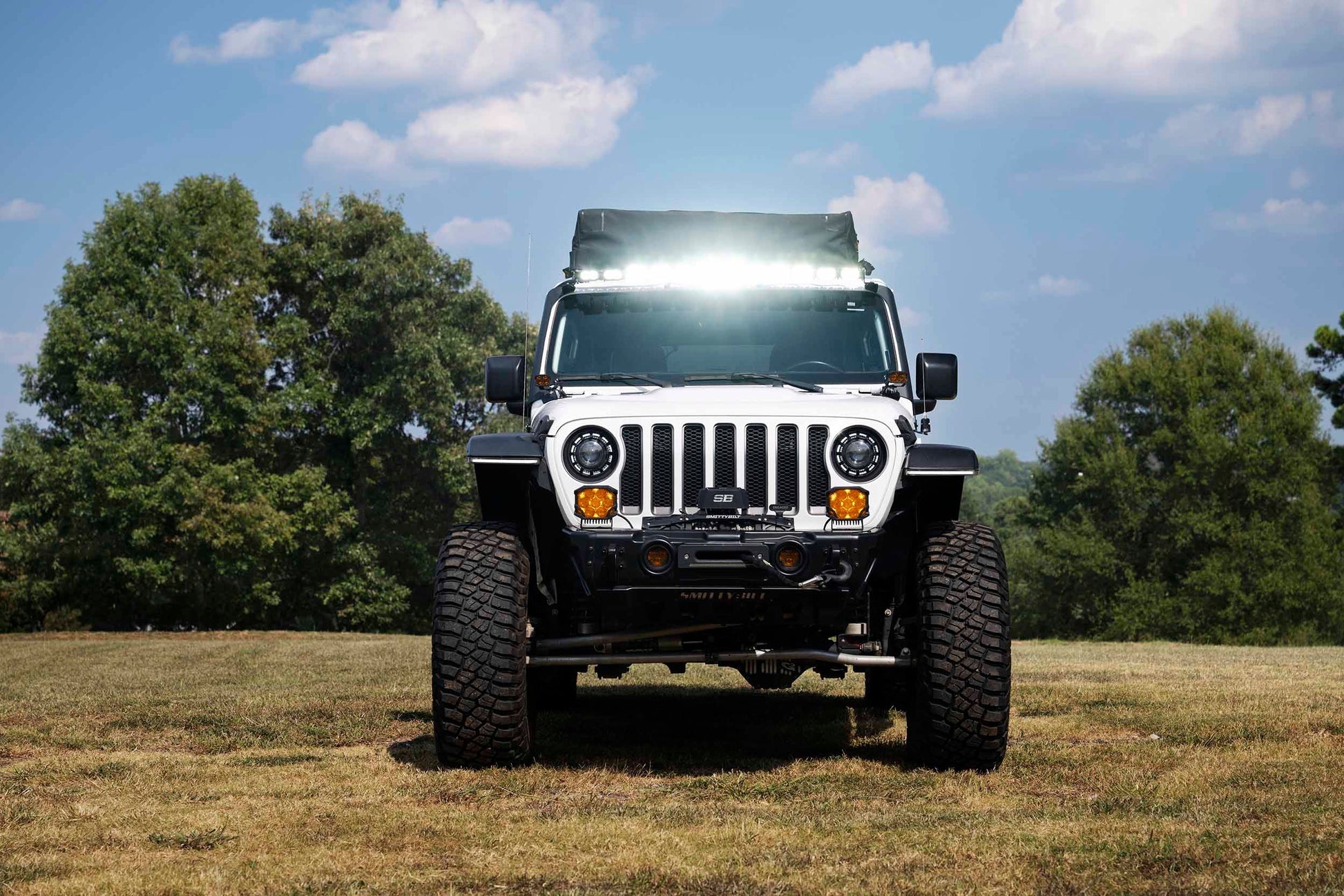

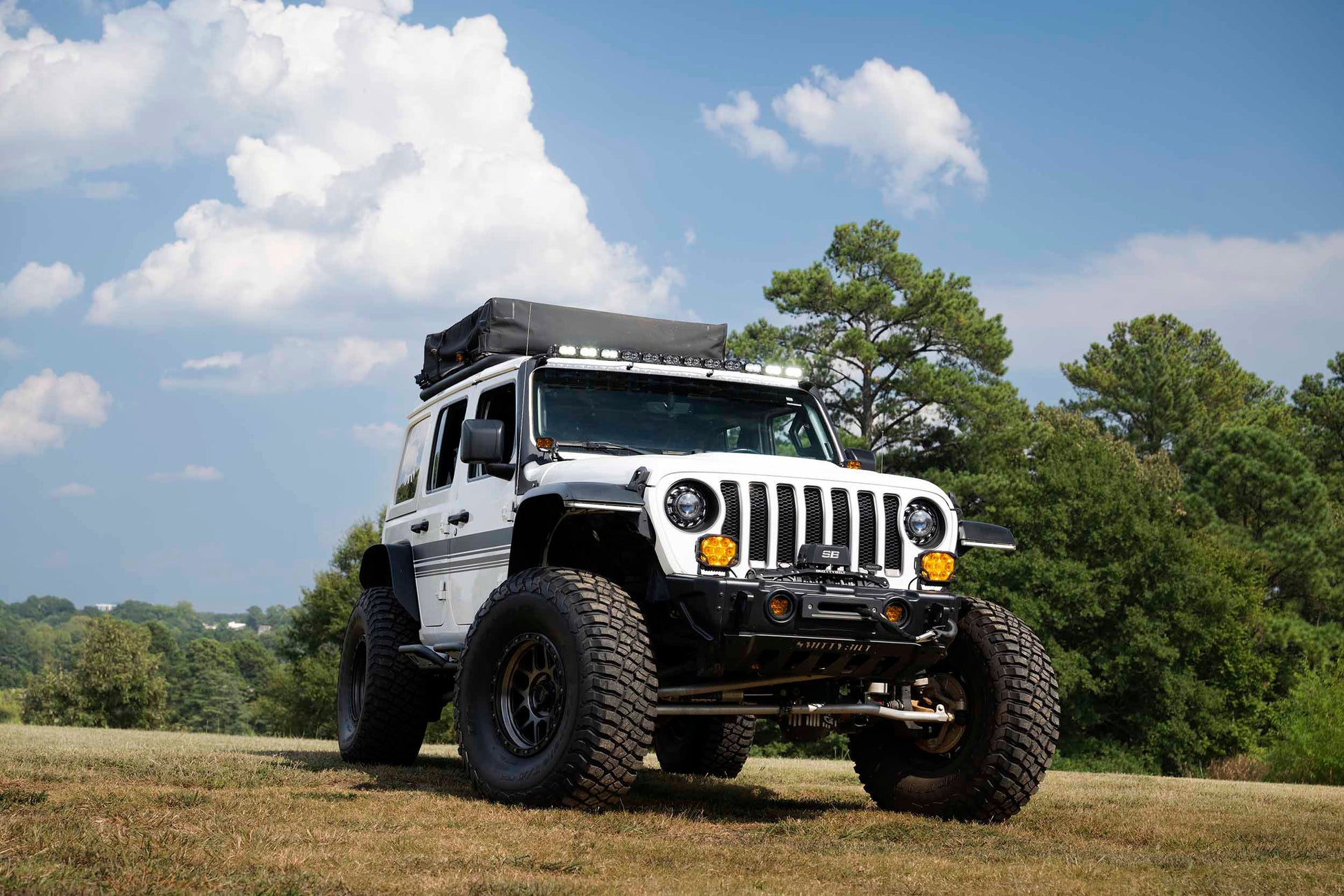

18-26 Jeep Wrangler JL 2Banger Light Bar System

Take your Jeep Wrangler JL or Gladiator JT to the next level with the Morimoto 2Banger Roof-Mount LED Light Bar System. Designed, engineered, and tested in the USA, this complete auxiliary lighting solution combines premium optics, rugged construction, and modular performance into a compact, OEM-inspired package. Choose your preferred performance level, beam configuration, and light color to build the ideal setup for everything from overlanding and trail riding to high-speed nighttime adventures.

The system is built around Morimoto's compact 2Banger LED Pods, available in two performance levels. The NCS Series delivers outstanding performance and exceptional value, outperforming many competing lights in its class, while the HXB Series utilizes premium Osram LEDs to provide maximum output and long-range visibility for demanding off-road conditions.

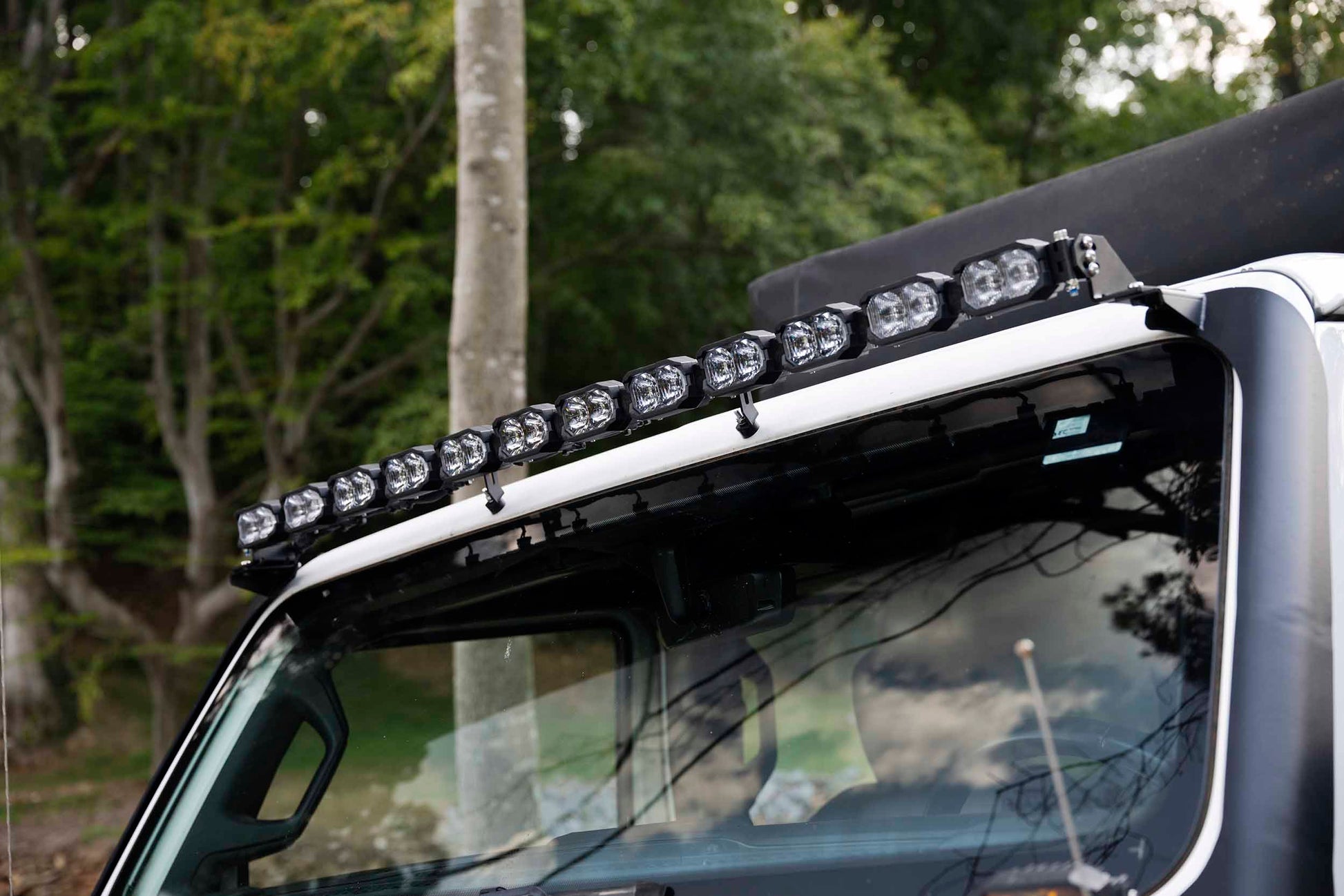

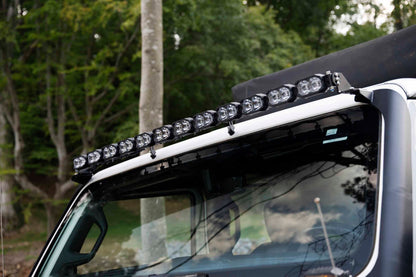

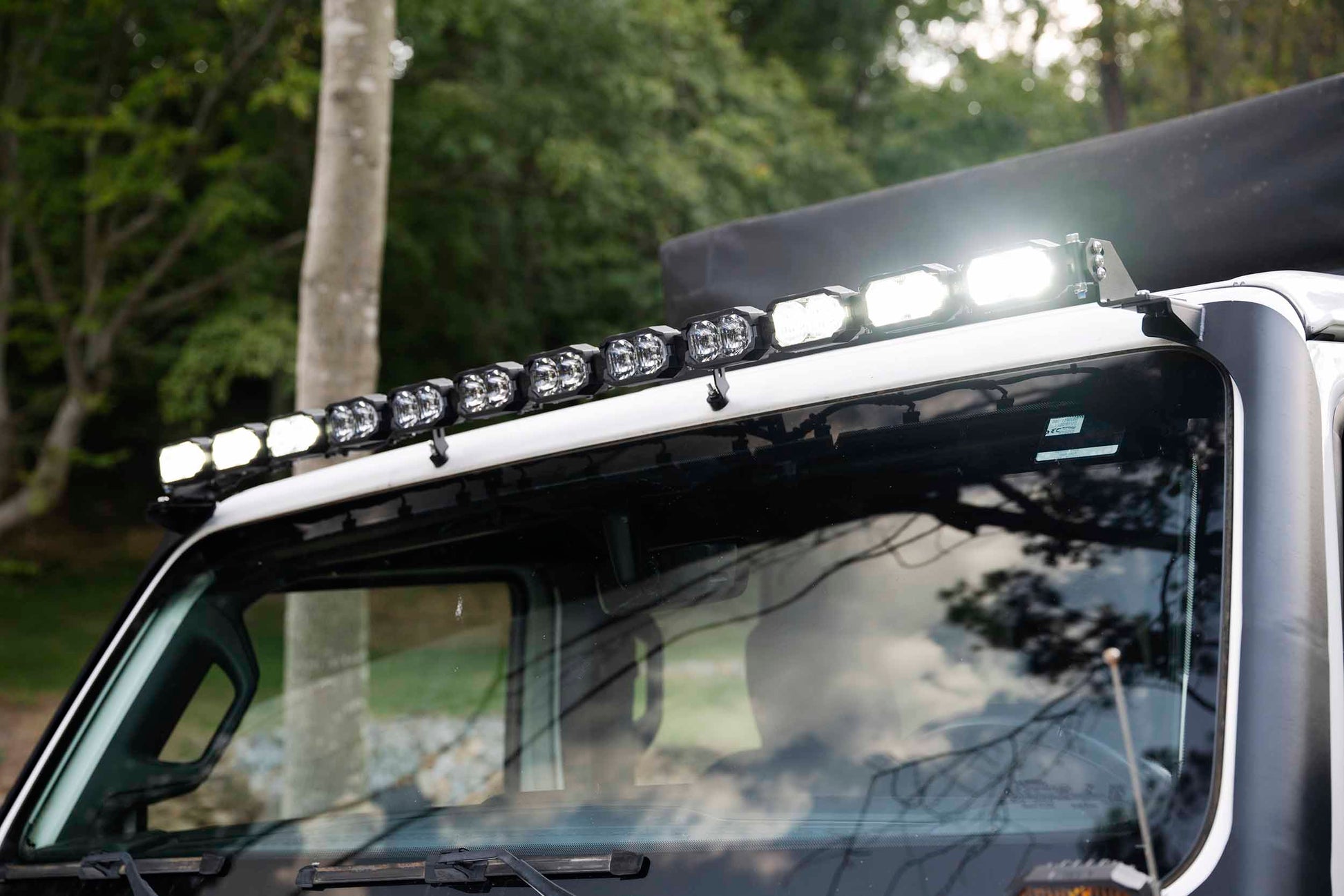

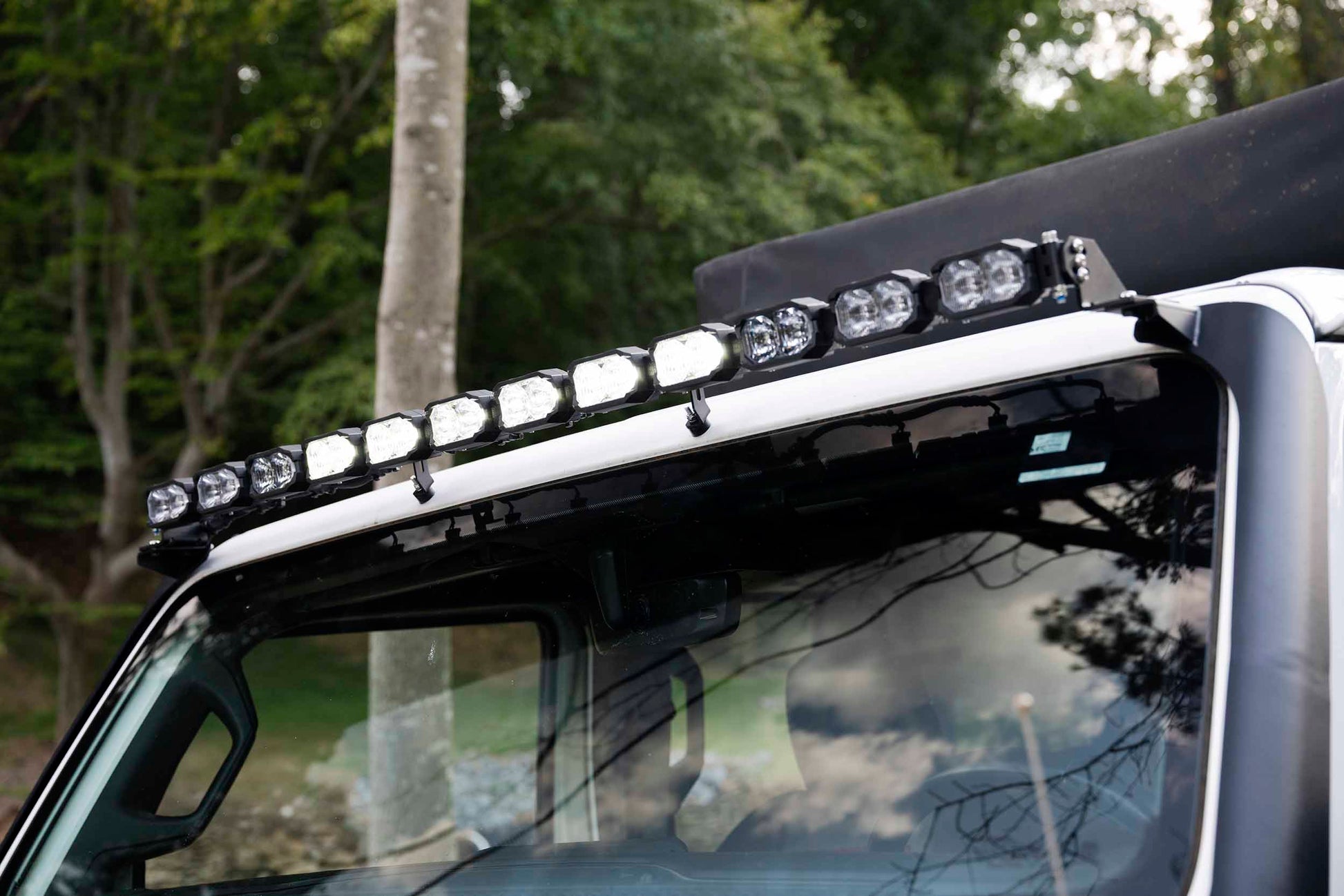

Each light bar combines Spot, Combo, and Wide beam optics to create exceptional illumination at every distance. Spot optics project light far down the trail with a focused 5-degree beam, Combo optics provide the perfect balance of distance and width, and Wide optics dramatically improve peripheral visibility for safer driving on narrow trails and dark backroads. Together, they create a seamless beam pattern with outstanding intensity and coverage.

Designed for every environment, the 2Banger system is available with White, Yellow, or White/Yellow lighting configurations. White output maximizes long-range visibility in clear conditions, while Yellow output improves contrast and reduces glare in rain, snow, dust, and fog. A mixed White/Yellow setup offers the best of both worlds, combining long-range illumination with enhanced near-field visibility.

Built to withstand the harshest conditions, every 2Banger pod features a copper Direct Thermal Path (DTP) PCB, cast aluminum housing, advanced thermal management, and IP69K-rated weather sealing for maximum durability and long service life. The CNC-machined aluminum mounting hardware is protected with a dual-anodized finish to resist corrosion and maintain a premium appearance for years of off-road use.

Installation is straightforward thanks to the included vehicle-specific roof mounting brackets, premium wiring harness, proprietary M-Spec illuminated switch, heavy-duty relay, weather-sealed connectors, and quick-disconnect wiring for easy integration with factory or aftermarket upfitter switches. The harness can be configured to operate all pods together or control the inner and outer pods independently for maximum versatility.

Whether you're exploring remote trails, overlanding across rugged terrain, or simply demanding the highest level of auxiliary lighting performance, the Morimoto 2Banger Roof-Mount LED Light Bar System delivers premium optics, exceptional durability, and industry-leading performance in a compact, factory-inspired package.

Technical Specifications

• Peak Luminosity (raw): 24,000lm
• Intensity: 555,800 Cd (5,558 lux @ 10m)
• Power (stabilized): 288.0w
• Current (amps @ 13.5V DC): 21.33A

What's Included

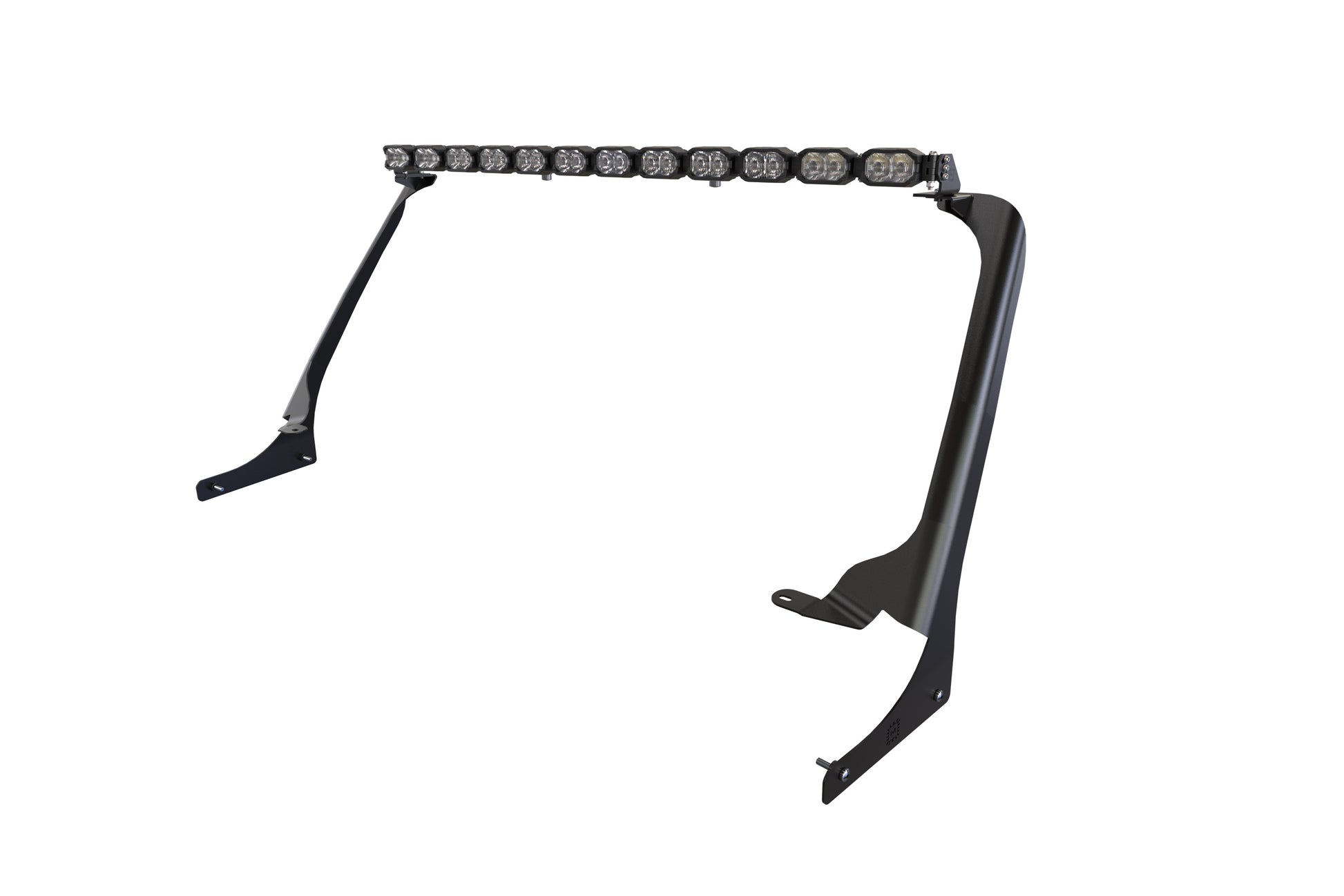

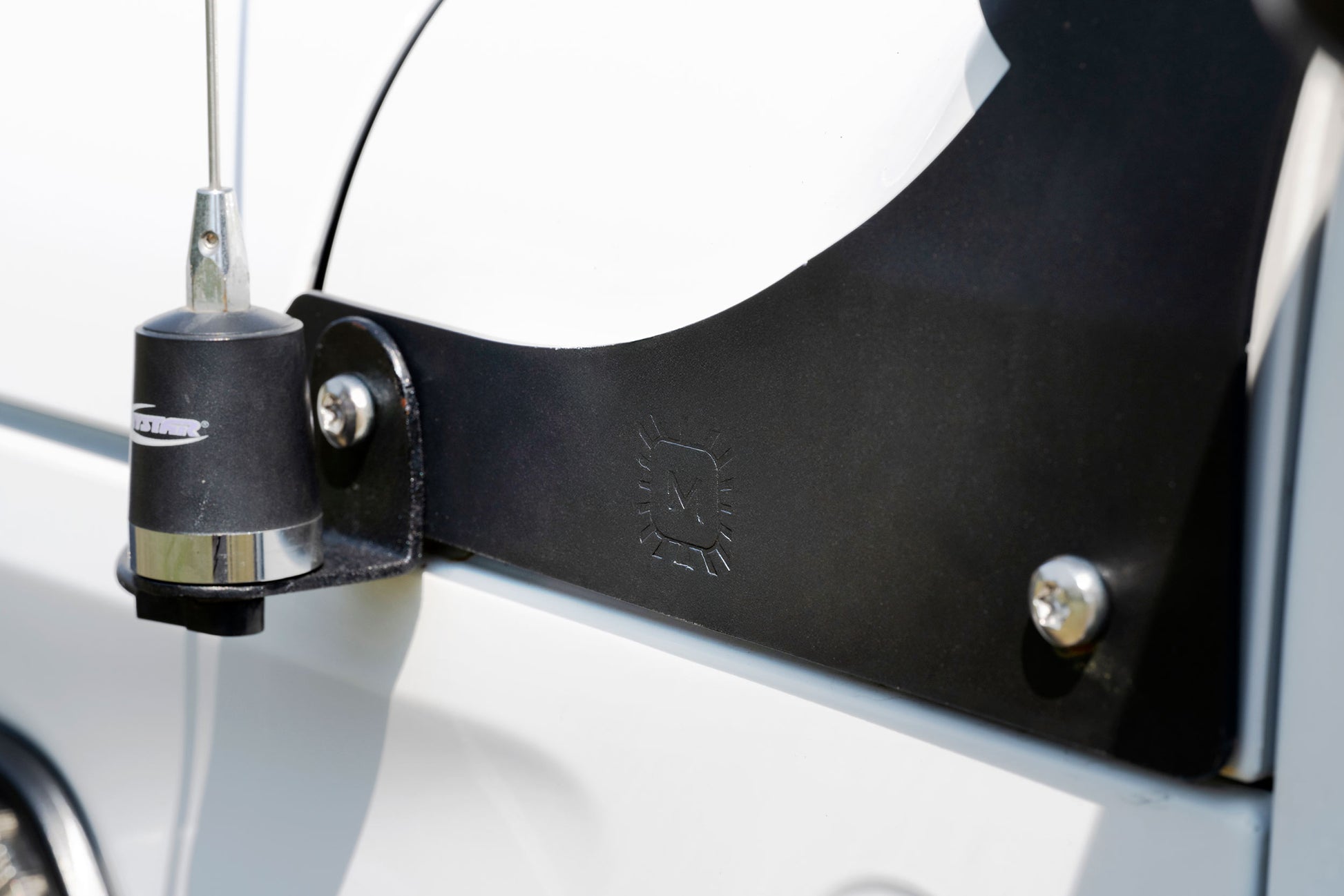

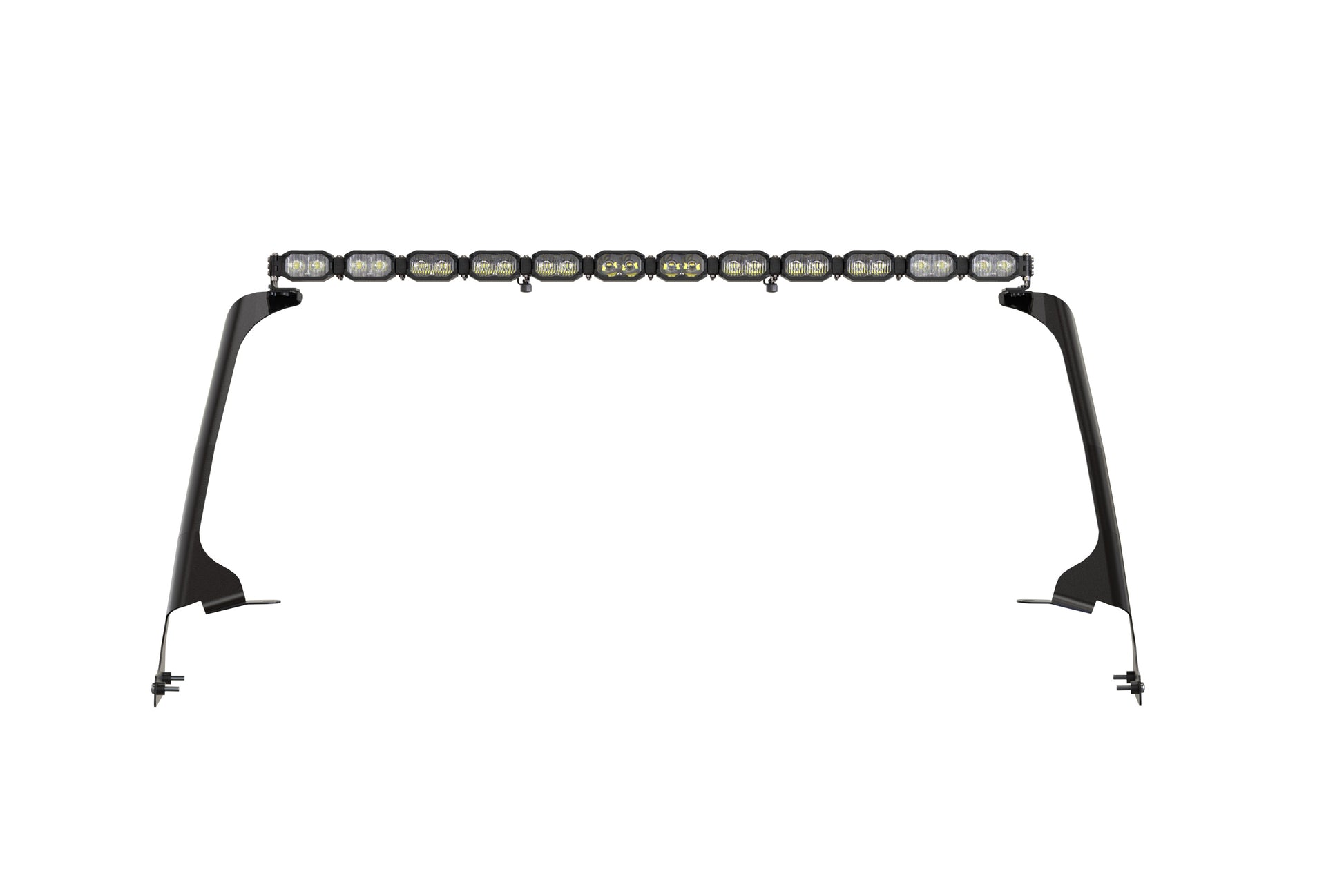

• Windshield Brackets: 2x Brackets (One Left and One Right)
• LED Pods: 12x Morimoto 2Banger (HXB White: 4x Wide, 6x Combo, 2x Spot)
• Bar Hardware: 2x Mounting Feet, 2x Middle Support Legs, 11x Pod-Links
• Wiring: 1x Switched Power Relay Harness (BAF131H)
• Hardware: 2x M6 Spacers, 4x M8x1.25 35mm SS Screws, 4x M6x1.0 12mm SS Screws, 4x M6 11mm SS Washers, 2x M6 18mm SS Washers, 2x M6x1.0 50mm SS Screws, 2x 5mm Spacers, 1x Rubber Cushioned Cable Clamp
• Warranty: Lifetime Limited

Compatibility

• Jeep Wrangler JL: 2018+*
• Jeep Gladiator JT: 2020+*
• *Note: Not compatible with 4XE or 392 models due to a different cowl design.

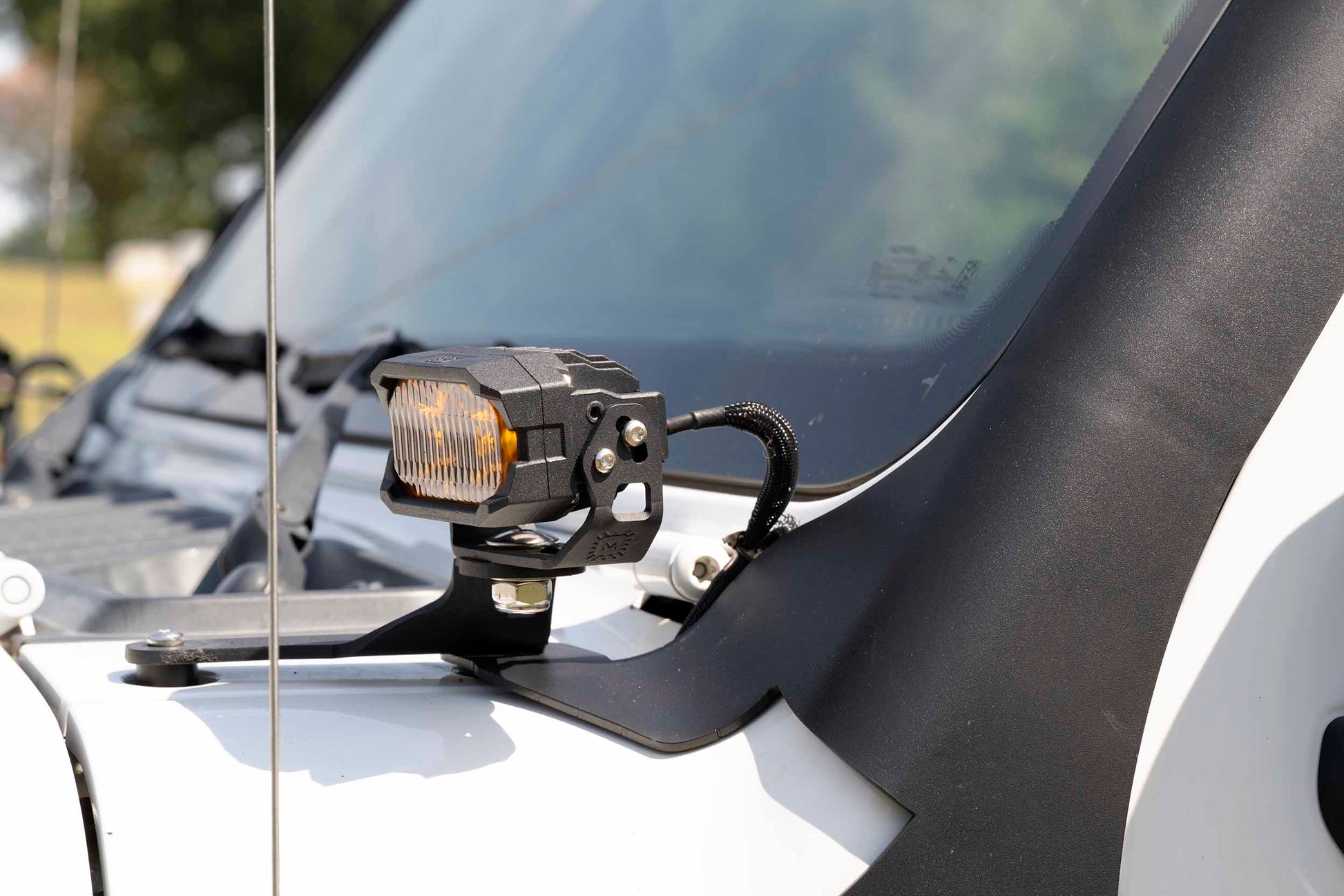

• Ditch Light Brackets: Fully compatible with Morimoto ditch light brackets (BAF036)
